12f/24f Sm/Om3/Om4 MPO/MTP Rack Cable Management Data Center Solution
| Price: | US $ 42-45/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | RACK |
|---|---|
| Type: | Optical Fiber Distribution Box |
| Wiring Devices: | ODF |
| Certification: | GS |
| Condition: | New |
Product Description

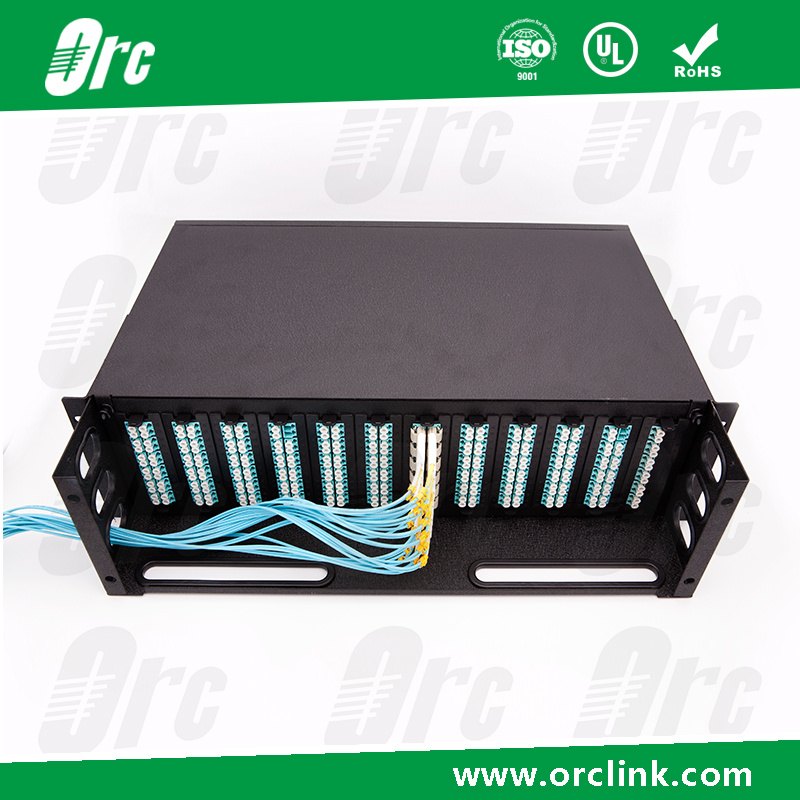

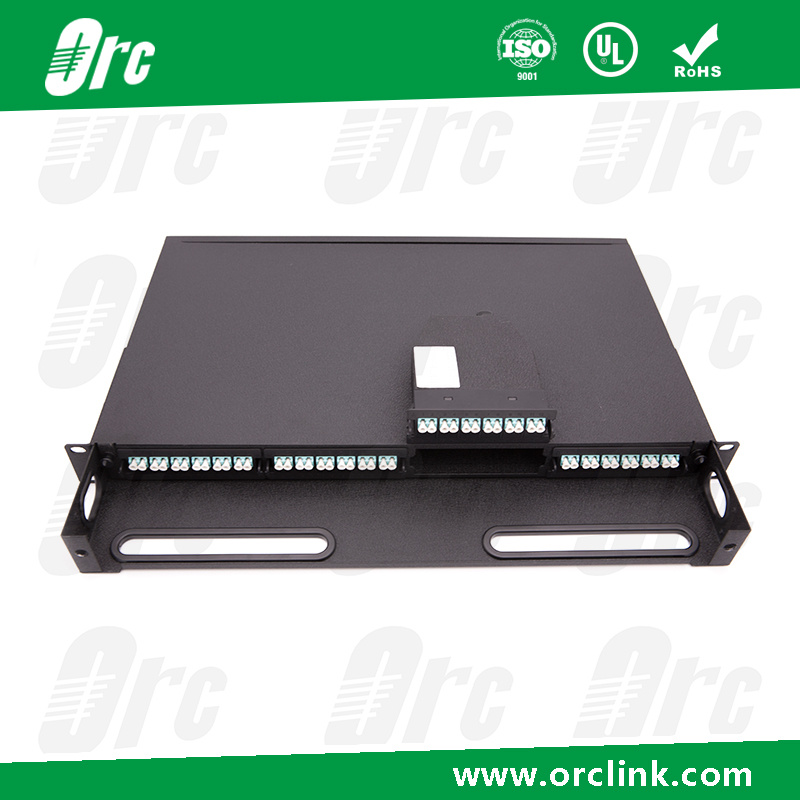

ORC's cassettes and racks are industry standards designedto meet the specification rack mount panels, easy installation. Input use MTP/MPO high density multi-fibers connectors adapter and output usually with LC,SC,FC,E2000 adapter and so on. It fit for different installation environment and easy to install between differenttrans mission equipment or different patch panel. Our connectors are 100% factory tested and can meet your special requirements. All the MTP/ MPO connector compliance with Telcordia GR-1435-Core Compliant.Product Photos:
Our strengths:
- As a rapid response of a mid-size, customer oriented company, flexibly meet the needs and expectations of customers around the globe
- Consultancy, development, industrial engineering services, original design manufacturing and original equipment manufacturing
- Superb engineering and design capabilities, strong quality control systems, and substantial manufacturing capacity allows us to deliver both high-volume and customized solutions extremely rapidly for global customers.
- Employees with fiber optic industrial engineering skills and experienced in international collaboration, project management, product development and implementation
- Excellent operator workmanship with ISO 9001 certified quality management system
- Location with excellent logistics
Features
1.Low insertion loss
2.Mechanicl properties meet standards of IEC874-7 and CECC86115-80.
3.All materials meet the RoHS standard.
4.The patch cable can be customized according to customers specific requirements
5.Compliant with Telcordia GR-326-CORE,IEC and ROHS standards
6.Strict quality testing:IL and RL 100% test.
Applications
1.Wiring of local area network between different enterprise buildings
2.Connection of optical links in optical active devices
3.Wiring in communication base station and distribution case
4.Production and testing of optical devices
5.Optical fiber communication system, CATV and telecommunication network
6.LANs and WANs
7.FTTx
Rack Specification
| Physical Characteristics | |
| Color | Black / Customized |
| Material | Aluminium |
| Product Dimensions | 19" W x 12.5" L x 1U H |
| Rackmountable | Yes |
| Environmental | |
| RoHS | Yes |

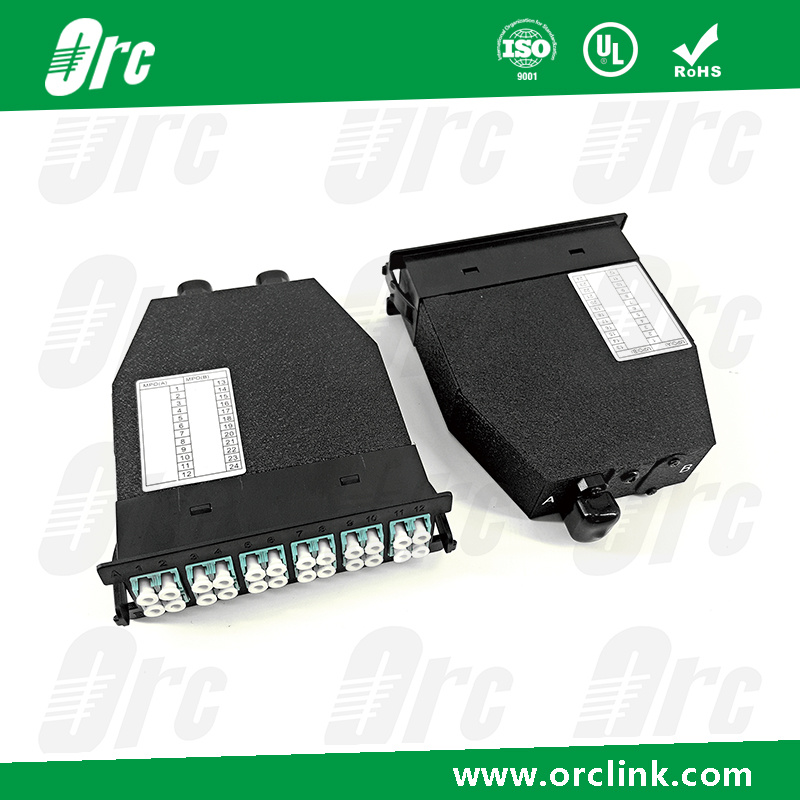

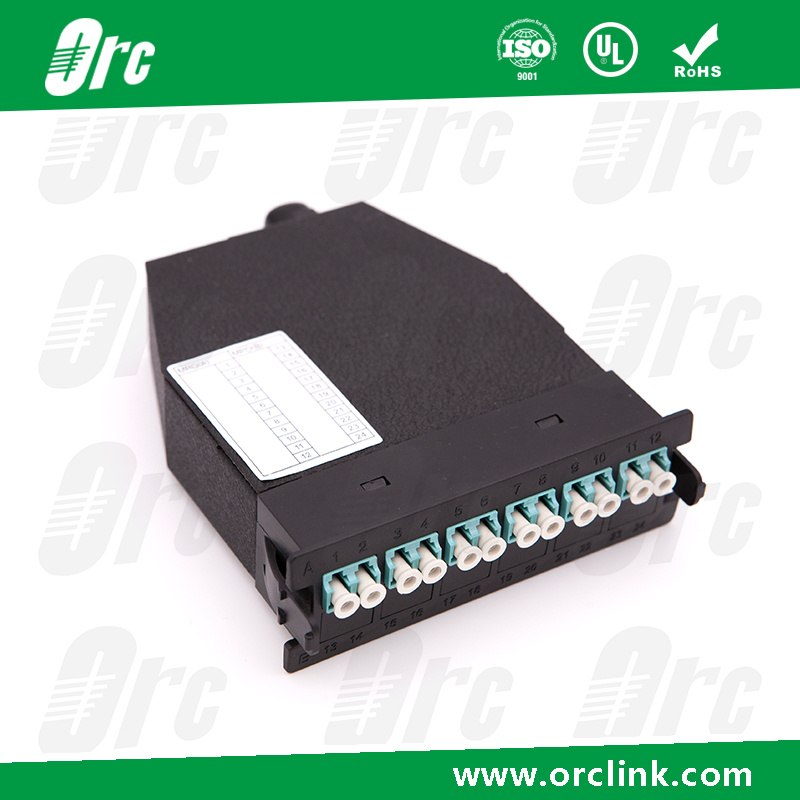

Cassette Specification
| Physical Characteristics | ||
| Cassette Color | Black / Customized | |
| Cassette Material | Aluminium | |
| Fiber Count | 8F/12F/24F | |
| Fiber type | Single mode/ OM3/ OM4/OM5 | |
| Rackmountable | Yes | |
| Connector(s) | ||
| Connector A | MTP/MPO 12F/24F Connectors | |
| Connector B | 12 x LC/24 x LC | |
| Adapter Type Front | LC Duplex | |
| Adapter Type Back | MTP/ MPO | |
| Optical Performance | |||||
| Item | Parameter | ||||
| MTP/MPO Connector | SM | MM | |||
| Standard | Low Loss | Standard | Low Loss | ||
| Insertion Loss | Typical | 0.50dB | 0.20dB | 0.50dB | 0.20dB |
| Maximum | 0.70dB | 0.35dB | 0.60dB | 0.35dB | |
| Return Loss | ≥60dB for APC | ≥20dB for PC | |||
| ≥40dB for PC | -- | ||||
| Male/Female | Male: With Pins, Female: Without Pins | ||||
| Tensile Strength | ≤0.3dB (Max 66N) | ||||
| Vibration | ≤0.3dB (10 ~ 55Hz) | ||||
| Thermal Cycle | ≤0.3dB (-40 ~ 75ºC, 21Cycles) | ||||
