1500V Solar System Fuse Block- High Voltage Fuse Holder (10A/15A/20A)
| Price: | US $ 1-10/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | SDPV-1500V |
|---|---|
| Ce Standard: | IEC60947-2/GB14048.2 |
| Current: | 3A,4A,6A,10A,13A,16A,20A,25A,32A,40A,50A,63A |
| Poles: | 1p,2p,3p,4p |
| DC Voltage: | 1500V Optional |
| Brand: | Bangzhao or OEM |
Product Description

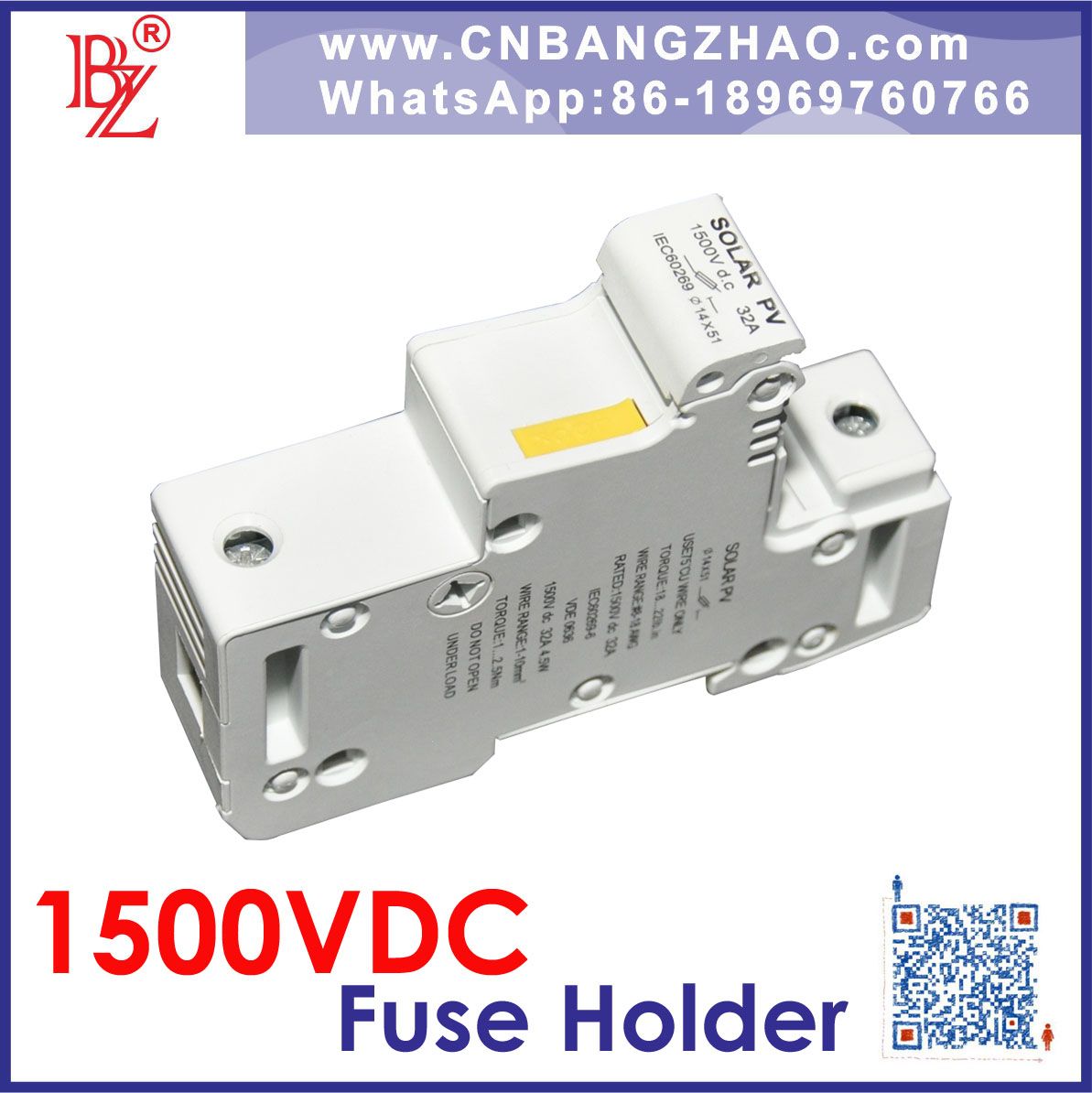

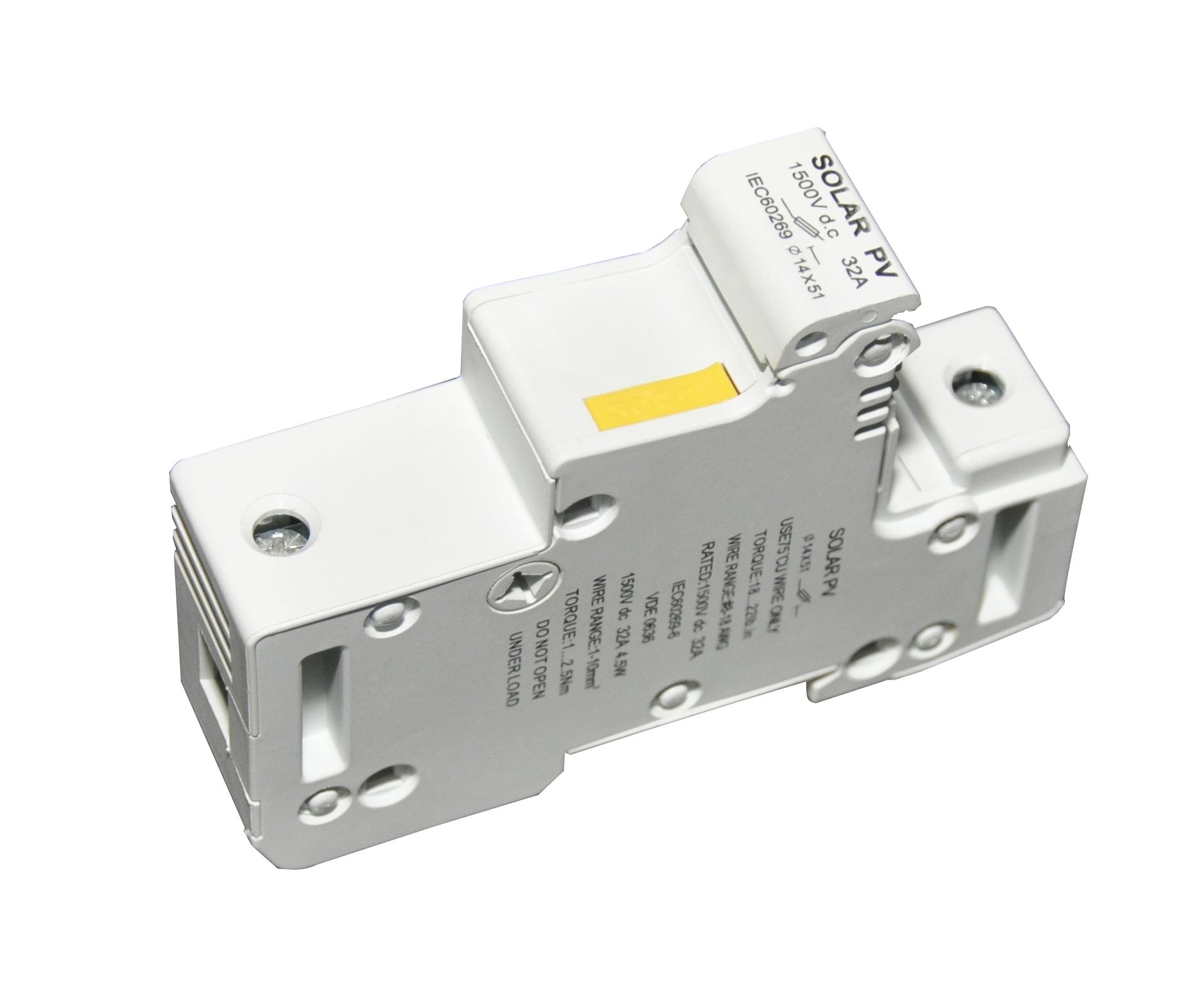

1500V Solar system fuse block with fuse 15APV DC PVH-30 Fuse Holder was designed and manufactured , complying with the standard IEC60947-3. The Rated Current up to 30A,rated voltage up to 1000V DC. It applied for PV DC combiner box, inverter etc, with the main function of over-current protection and effective disconnection.
Details for 1500V Solar System Fuse Block- high voltage fuse holder(10A/15A/20A)
PV DC PVH-30 Fuse Holder | ||
| Pole | 1P | |
| According to | IEC 60947-3 | |
| Electrical Characteristics | ||
| Rated Working Voltage | Ue | 1500V DC |
| Rated Current | In | 32 A |
| Breaking Capacity | 20KA | |
| Max Power Dissipation | 3W | |
| Contol and Indication | ||
| Operating State/Fault Indication | Indicator Light OFF/Indicator Light ON | |
| Connection and Installation | ||
| Wire | 2.5mm2~25 | |
| Terminal Screws | M5 | |
| Torque | Nm | 2.5 |
| Degree of Protection | IP20 | |
| Installation Environment | ||
| Fuse Size | 10x38 mm | |
| Operating Temperature Range | TU | -30ºC~+70ºC |
| For Mounting On | TH35-7.5/DIN35 | |
| Pollution Degree | 3 | |
| Relative Humidity | +20 ºC≤ 95%,+40ºC≤50% | |
| Weight | 0.07kg Per pole | |
| Installation Class | III | |
