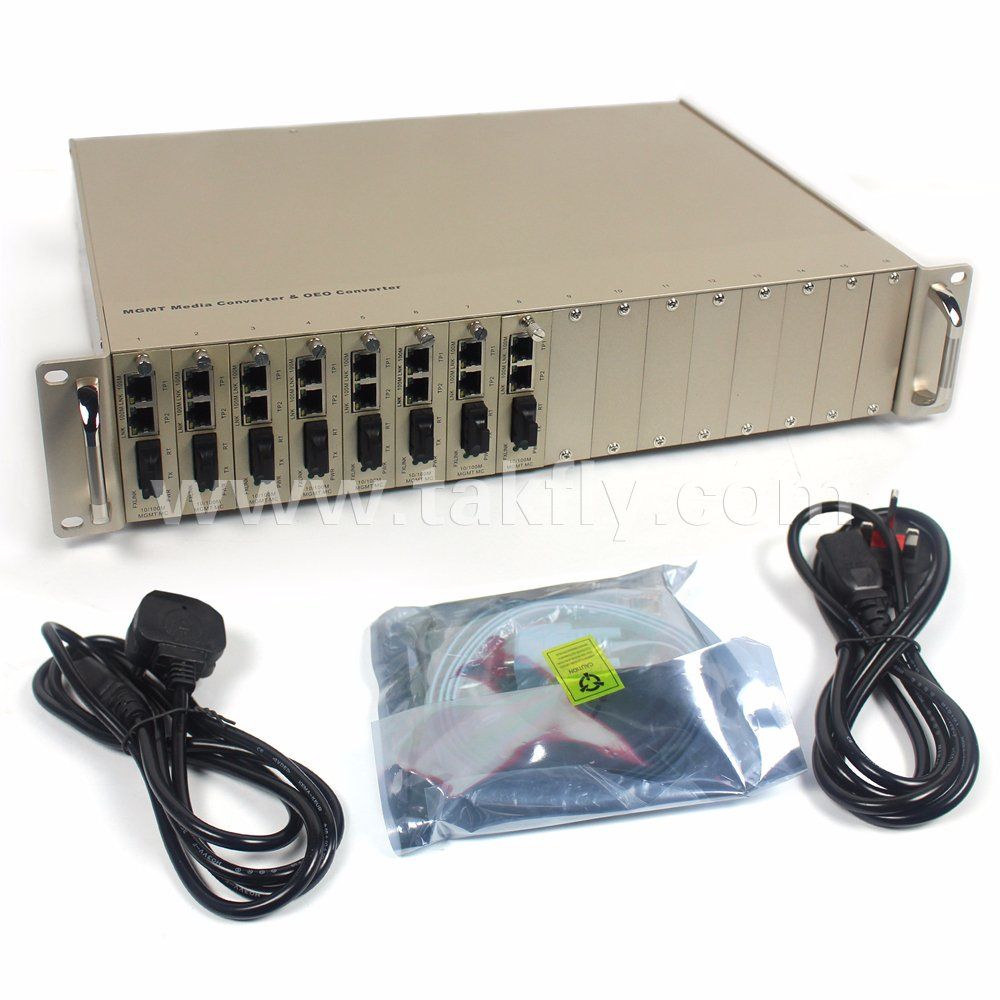

17 Slots Center Management Fiber Media Converter Chassis Rack
| Price: | US $ 1-600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | managed type media converter chassis |
|---|---|
| Item Name: | 17 Slots Centerlized Media Convertet Chassis |
| Keywords: | Media Converter Rack/Chassis |
| Slot Quantity: | 17 Slots |
| Configuration: | 1 Slots Managment Card+16 Slots Local Side |
| Working Rate: | 100m,1000m,10g SFP+ |
| Power: | 110-255V AC or -48V DC |
| Customzied: | Available |
| Type: | Fiber Transceiver |
| Wiring Devices: | Integrated Wiring |
| Certification: | GS |
| Condition: | New |
Product Description
17 Slots Center Management Fiber Media Converter Chassis Rack16-slot multi-functional management system is a Ethernet and SDH transmission equipment with high price/performance ratio, and it can support 10/100M Ethernet fiber media converter, 10/100/1000M Ethernet fiber media converter, 1 fiber + 2 RJ45 Ethernet fiber media converter, 10G Ethernet fiber media converter, 125M~4.25G OEO, and 10G OEO at the same time. It can support variety of data rate, SM/MM, single fiber/double fiber, SFP, SFP+ and XFP etc. With simple set-up and complete function management interface, it supports protocols like SNMP, WEB, CONSOLE and TELNET, and realizes the integrated management to all chassis
Functions:
- Network based on GUI, easy operation with graded management mode (common user, super user and administrator)
- With centralized management and Top tree, several chassis can be managed in the same interface at the same time; with grouping management any converter can be conveniently manipulated among many converters
- Master/slave structure,providing management module (master, slave), maximum 4 chassis which can hold 128 fiber ports and RJ45 ports cascaded can be managed
- Supporting protocols like CONSOLE, WEB, Telnet and SNMP
- Console management: Users can set up IP and users' authority, display/control local and remote media converters with WINDOWS
- WEB management: Users can set up IP and users' authority, display/control local and remote media converters with WEB on browser, such as IE
- Standard SNMP protocol: It offers MIB files, convenient to be merged to the third party's SNMP; users' can set up 4 TRAP address, choose TRAP irritation factor according to users' needs, such as Link to Down for TX, and Link to Down for FX.
- Special management software: Control center operates backstage with special management software, adopts information and keeps in management PC hard disk as database. It can set up users' authority and display/control local and remote media converters
- Management information
- Supporting network device auto-sensing and adding
- Complete system information can be set up and displayed, including the name of the chassis, terrain information, related information of IP, constant operating time and the versions of the hardware and soft ware
- Real time display of voltage and temperature on the cards of the media converters, temperature of chassis and report fault in time
- Supporting SFP/SFP+/XFP, CWDM SFP/SFP+/XFP and DWDM SFP/SFP+/XFP, and it can show the SFP/SFP+/XFP information and digital diagnosis function
- Remote power off alarming, precisely distinguish remote failure
- Supporting LFP, quickly locates the failure
- Equipment restart, system or module restart by management software, set-up information on each module will be stored spontaneously when power off
- Reset to factory set up or dip switch status are optional
- Each port at local or remote devices can be set up or tracked, including the connecting status, connecting speed, half/full duplex, port locked and LFP etc.
- Supporting Loopback and PRBS, precisely locating the failure, convenient for link test
- Supporting management within bandwidth, managing remote equipments conveniently
- Powerful historical alarming and operating log information tracking and management function
- Supporting FTP online upgrading
Ethernet port
1)Standards:IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3z
2)Date rate:10Mbps, 100Mbps, 1000Mbps; HALF/DUPLEX auto-sensing
3) Connector: RJ45
4) Connecting cable: UTP CAT5 or UTP CAT5E, transmission distance up to 100m.
Fiber port
1)Connector: ST, SC, FC,LC
2)Operating wavelength: MM 850nm ,1310nm and SM 1310nm ,1490nm,1550nm,
3)Connecting fibers: MM: 50/125, 62.5/125, 100/140μm
SM 8.3/125, 8.7/125, 9/125, 10/125μm
Optical parameters
| Data rate | Distance | TX (nm) | S (dBm) | Pout (dBm) |
| 155m bps | 20 km | 1310 | < -35 | -14 ~ -8 |
| 155m bps | 40 km | 1310 | < -35 | -4 ~ 0 |
| 155m bps | 80 km | 1550 | < -36 | -4 ~ 0 |
| 1.25G bps | 20 km | 1310 | < -24 | -9.5 ~ -3 |
| 1.25G bps | 40 km | 1310 | < -24 | -11.5 ~ -3 |
| 1.25G bps | 80 km | 1550 | < -23 | -3 ~ 2 |
| 2.5G bps | 20km | 1310 | < -25 | -3~-10 |
| 2.5G bps | 40km | 1310 | < -30 | -2~ 3 |
Working Environment:
Operating Temperature: 0~50ºC
Storage Temperature:-10~70ºC
Humidity: 5%~90%(non-condensing)
Dimension for rack:315mm (L)×425mm (W)×92mm(H)
Dimension for standalone type: 156mm (L)×128mm (W) ×32mm (H)
AC power: 85VAC~265VAC
DC power: -40VDC~-57VDC
Package & shipping
About package: Carton case and common exporting packages
About Shipping: A. Shipping time is depends on quantity and factory schedule
B. About Shipping ways:By air,sea and courier(DHL,Fedex,Ups,TnT or EMS)
About Payment:Usually paypal for sample,T/T,Western Union is available
Would you like a set of media converter chassis to test??Please leave me an inquiry or contact me directly.
