19'' 42u Server Network Cabinet Server Rack
| Price: | US $ 190/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | VE |
|---|---|
| Material: | SPCC Cold Rolled Steel |
| Capacity(U): | 42u |
| Width: | 600mm |
| Depth: | 800mm |
| Static Loading: | 1300 Kgs |
| Standard: | ANSI/Eia RS-310-D. IEC 60297-2; DIN4149 |
| Color: | Ral 7035 or Ral 9004 |
| 19" Rails Thickness: | 2mm |
| Bottom Panel Thickness: | 2 mm |
| Casters Dimension: | 2 Inch |
| Type: | Server Cabinet |
| Usage: | Network Integration System |
| Installation: | Vertical |
| Fan Number: | Four |
| Certification: | RoHS |
| Condition: | New |
| Capacity: | 42u |
Product Description

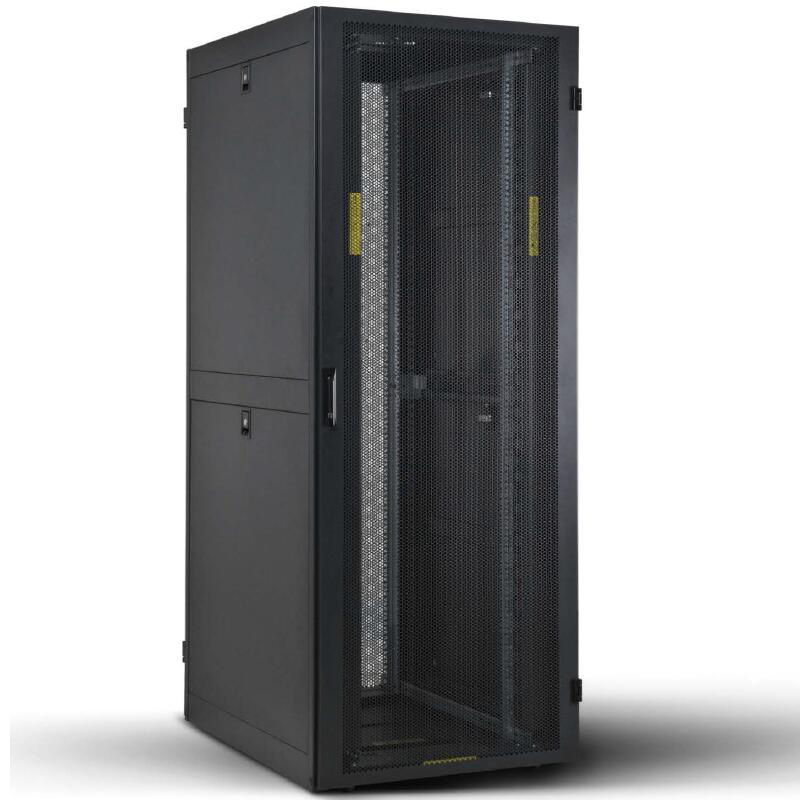

Product Desciption:19" standard floor standing server rack/ server cabinet/ rack mount cabinet/ rack shelves for server. Ideal server cabinet/ rack mount for construction of data center.
Special Features:

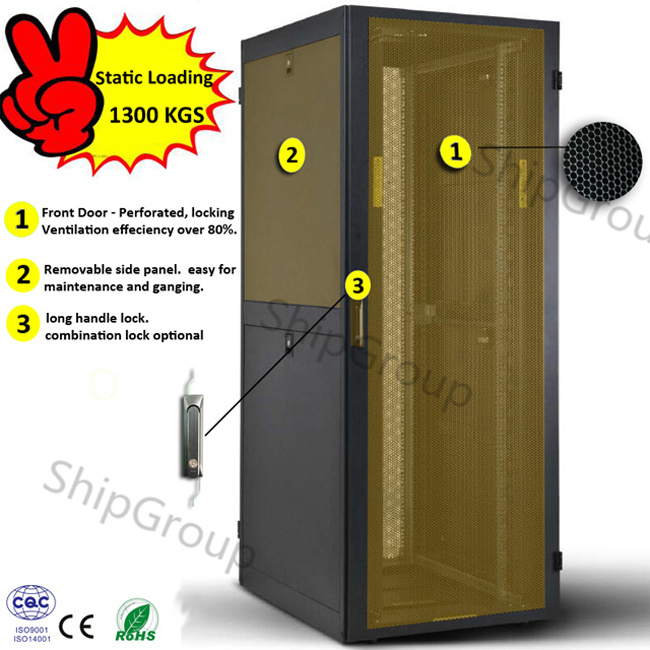

1. Static Loading: 1300 KGS.

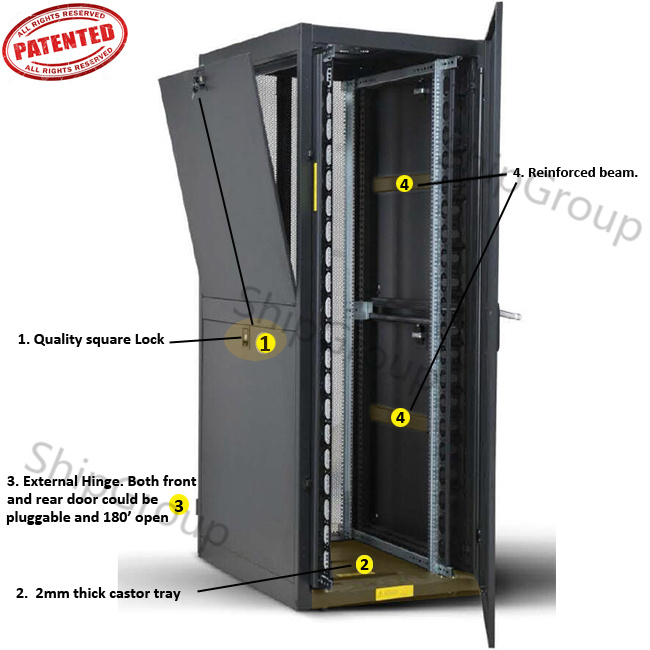

2. 2mm thick 19" rail and bottom caster tray. Guarantee for 1300 Kgs loading.
3. Patented duplex profile frame. Secure and strong.
4. Easy to assemble with 8 pcs of bolt.
5. Pluggable & Reversible front door and rear door.
6. Doors with outer hinges. 180 degrees openning.
7. Scratch-proof & adjustable cable entry design.
8. Fan units are installed from outside of the server rack. Easy for maintenance.
10. Anti-dust brush on the top cable entry.
11. Single unit availble for fixation on pallet.
Product Overview:

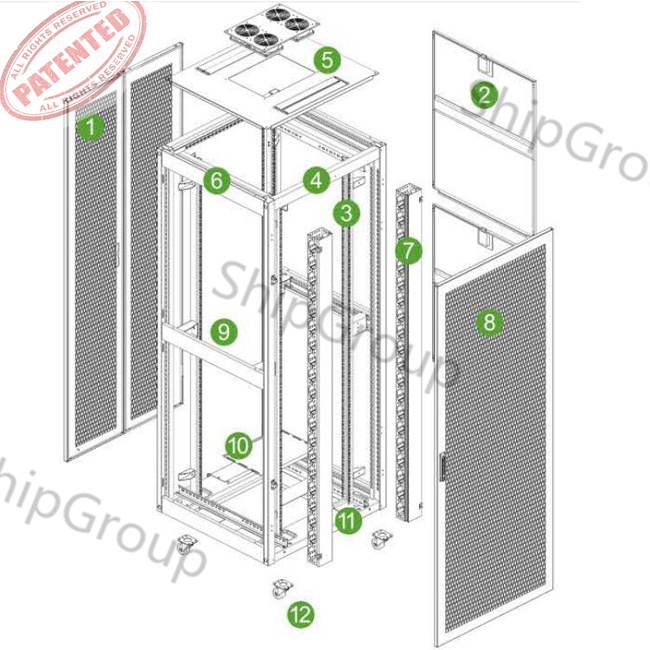

| S/N | Description | Qty | Material | Surface Finish | Remark |
| 1 | Back Door | 1 | ------ | ------ | ------ |
| 2 | Side Panel | 4 | SPCC 1.2mm | Powder Coated | |
| 3 | 19" Rails | 4 | SPCC 2.0mm | Zinc Plated | |
| 4 | Front Beam | 2 | SPCC 1.5mm | Powder Coated | |
| 5 | Top Cover | 1 | SPCC 1.2mm | Powder Coated | |
| 6 | Side Frame | 2 | SPCC 1.2mm | Powder Coated | |
| 7 | Cable Management Slot | 2 | SPCC 1.0mm | Powder Coated | 800mm width only |
| 8 | Front Door | 1 | ------ | ------ | |
| 9 | Mounting Spacer | 4 | SPCC 2.0mm | Zinc Plated | 800mm width only |
| 10 | Bottom | 1 | SPCC 1.0mm | Powder Coated | |
| 11 | Castors Tray | 2 | SPCC 2.0mm | Powder Coated | |
| 12 | 2" Heavy Duty Castor | 4 | ------ | ------ |

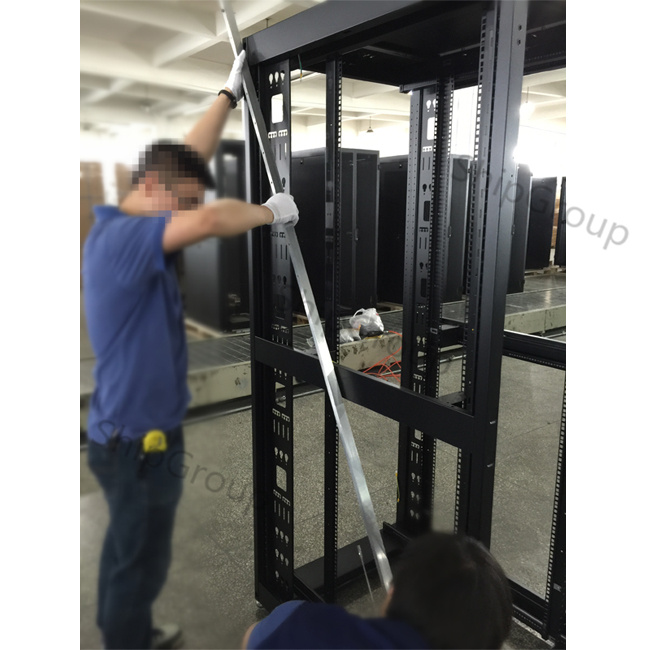

Production & QC
