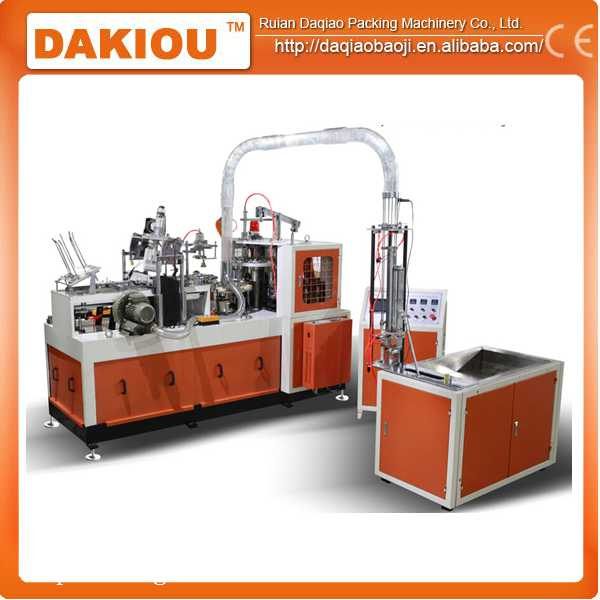

2-16oz Paper Cup Making Machine

Prod Model:	ZSZB-D
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Process:	Paper Machine
Usage:	Packing Paper Machine
Type:	Paper Folding Machine
Computerized:	Yes
Speed:	60-80pcs/min
Required Paper:	Double Side PE Coated Paper
Certification:	CE
Condition:	New
Cup Size(',Ounce):	2-16oz

Product Description

Our newly designed ZSZB-D paper cup forming machine is a fully automatic
Paper cup forming machine, which can produce different sizes of paper cups
With a series of continuous process, including automatic paper feeding through
More than 2 times, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan
By magic hand, silicone oil lubricating, bottom punching, bottom folding,
Bottom pre-heating, bottom knurling, cup discharging. The machine,
Researched and developed by our company, is improved in stability after
Comprehensive technical improvements.
Main feature:
1, Output is improved: The productivity is improved from 50-60 pcs/min to 60-70 pcs/min.
2, Stepping-motor is used to control the bottom paper feeding, so that the gap between the bottom-paper is controlled within 0.1mm, which can make machine more stable and save raw material.
With light eyes under the paper roll, the machine will be stopped when out of bottom-paper, avoiding the waste in paper.
3, Gear drive is adopted to avoid the defect of loose gap of chain drive.
4, We use a self-lubrication system in the machine, which reduces the friction between the parts.
So the machine can be maintained without manually fueling.
5, This device adopt non-contact multipoint light control switch
(such as in paper holder, cup tube, bottom paper and so on, according to customer demand).
It can detect working situation, then achieve a fault alarm
Preventing machine from collision, makes the machine more stable and longevous.
6, Paper tube station uses independent cam to handle cup holder. This is advanced in stability
And will not make noise when it works.
7, The machine is equipped with gear motor simplifies the complicated system and
Makes the machine more stable.
Main Technical Specification:

Model: ZSZB-D Automatic Paper Cup Machine
Paper Cup Size: 3-16oz(Mould changeable)
Raw Material: 180-300g/(One-side or Two-side PE (polyethylene) film coated / laminated paper)
Suitable paper weight: 180-300 g/
Productivity: 50-65 Pcs /Min
Power Source: 220V/380V 50Hz
Total Power: 6 KW
Total Weight: 2500KG
Package Size(L x W x H): 2600x1200x1580mm(LxWxH)
Working Air Source: 0.4-0.5m3/min
Making Double PE coated paper cups, need to buy an air compressor

Paper Cup Sizes	3-16 OZ
Raw material	Single side(one side) film coated paper
Suitable paper weight	150--320gsm
Capacity:	45--60pcs per minute
Total power	4.5KW
Power source	380V/50HZ( it can be changed if customer require)
Weight:	1600 kg
Overall Dimension(L x W x H):	2600 x 1300 x 1700mm

Our Service:
1.Spare parts guarantee for one year in machine arrival.
2.Send the technician for installation & training.
3.Offer Service Online
FAQ:
1.Q:Are your company a manufacturer or trading company?
A:We are a manufacturer with ten years of exporting experience by own trading company

2.Q:Where is your factory? How can I get there?
A:Our factory is located in wenzhou City, Zhejiang Province. It takes about one and  a half hours by train from Shanghai to our city. all of our customers can take the flight to wenzhou international airport first, and then we can send a car to pick up you.

3.Q:Can your products be customized?
   A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM orders are highly welcome.

4.Q . how's the delivery time ?
A. Usually it will take about 3-4 weeks for production,all of our machinery shall be packed well with film to be water proof, and then loading and fix in a wooden case
