2 Levels Mezzanine Floor Rack
| Price: | US $ 1200-1300/Ton |
|---|---|
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | MZ65 |
|---|---|
| Mezzanine Height: | 2.3-2.7m |
| Floor Panel: | Steel Grating with 10*44 Grid |
| Floor Loading: | 350-500kg/M2 |
| Proposal Design: | Available |
| Material: | Steel |
| Structure: | Shelf |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Weight: | 150-500kg |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
Product Description

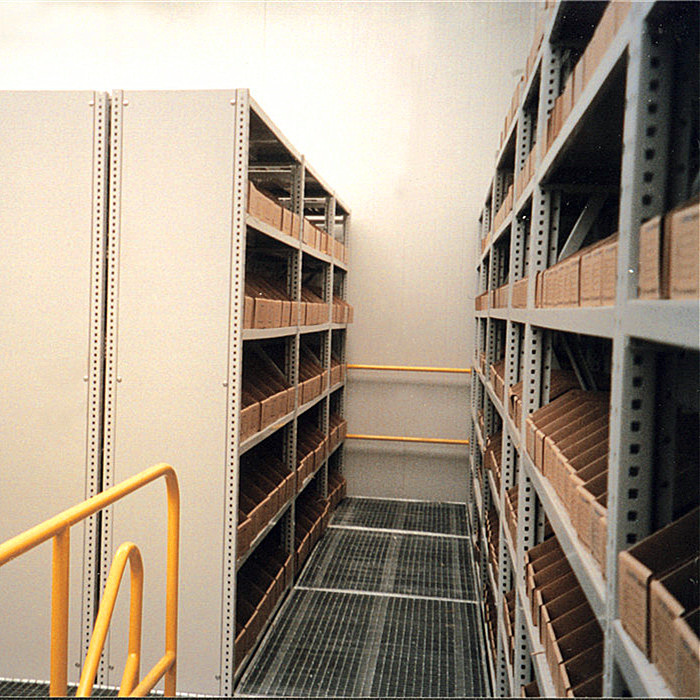

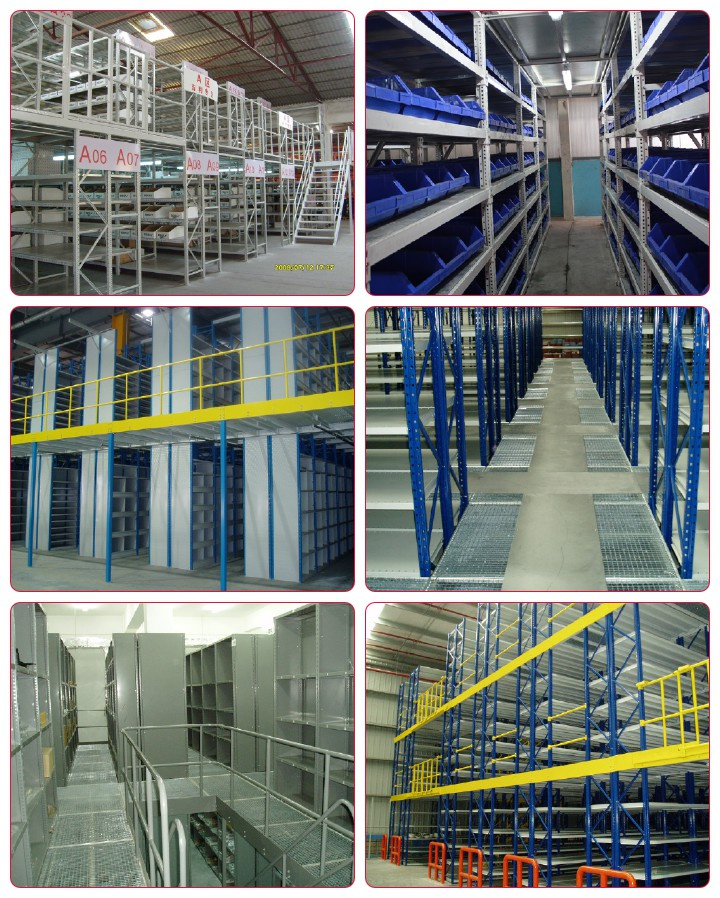

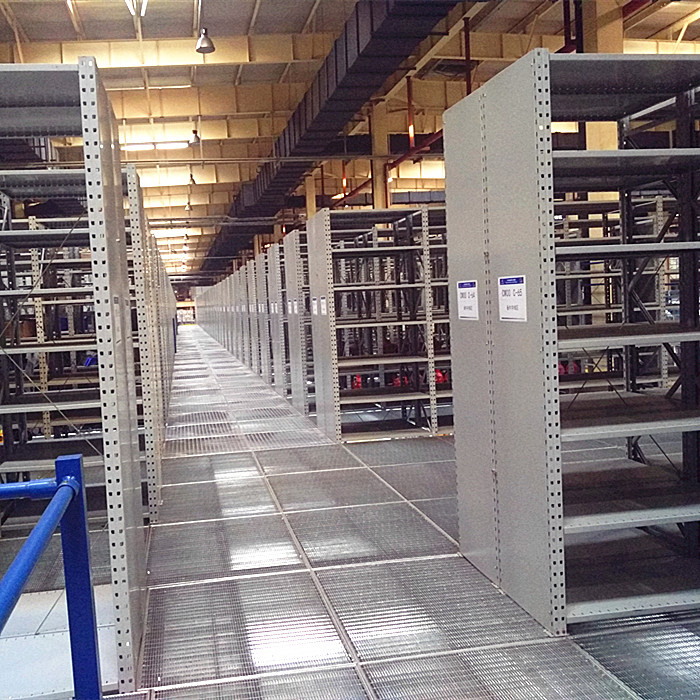

. Product Description:Manual pick can reach up to 2 meters only, in order to fully utilize the head room space, shelving with raised floor is developed to improve the pick height problem. The shelving system can be built to 1+ 1, 2 tiers or above to double your warehouse capacity. The upper floor is easily reached by staircase, elevator, and slide way or loading platform.
It is good for the storage of small items with split carton picking, in some occasion the system can provide with parts container and transport containers to meet customer needs. The fast moving items can arrange to store in the ground floor while the other items can be stored in the upper floor according to priority sequence.
Its standard is normally the same as Long Span racking, but in most cases it is made to measure. The uniform distributed load is from 100 to 300kg per shelf, the floor loading is 500kg/m2 U.D.L. We also carry different types of floors to meet individual requirements, such as steel decking, wood decking, galvanized industrial steel decking and galvanized grating floor, the normal loading for the mezzanine is around 400-500 kg/m2

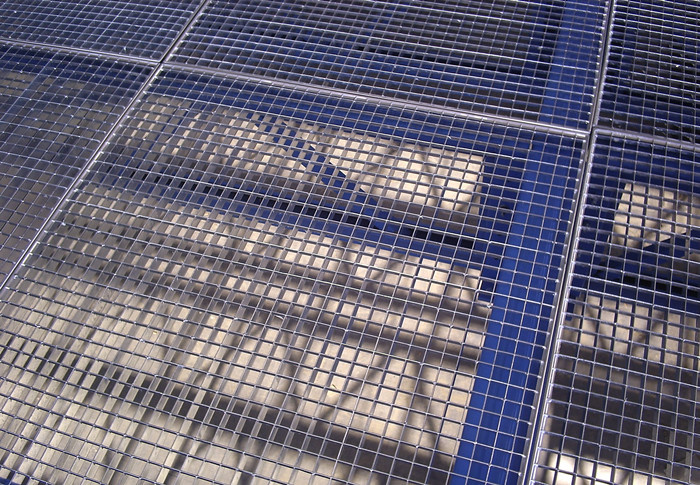

2. Steel Grating for the Mezzanine Floor:
This steel grating is manufactured by cross inserted steel strips with the joint spot welded. The most popular is the 30*30 spacing and 11*44 spacing. Different thickness is offered to accommodate any load rating requirements. This method offer air ventilation under Mezzanine floor and adapt to fire fighter safety regulations.
3. The basic components
- Upright:
- Step Beam
- Steel shelves
The steel shelves can also be clipped directily to the upright without step beams. Dividers can be used for the separation of storage locations.
The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are RAL 5015 (=blue) and RAL 7035 (=light gray). Shleves can also be galvanized finishing. Special colors are available on request.
4. Advantages and Key benefits·
Complies with international norms and regulations
· Wide range of basic components for storage of all pallet sizes and weights.
· Many standard accessories to meet every storage need you can imagine
· Computer aided design ensuring the best solution for every application, including static calculations
· Rigid and stable construction
· High quality of finish
· Easy and quick installation
· Mass volume production to offer very cost effective products

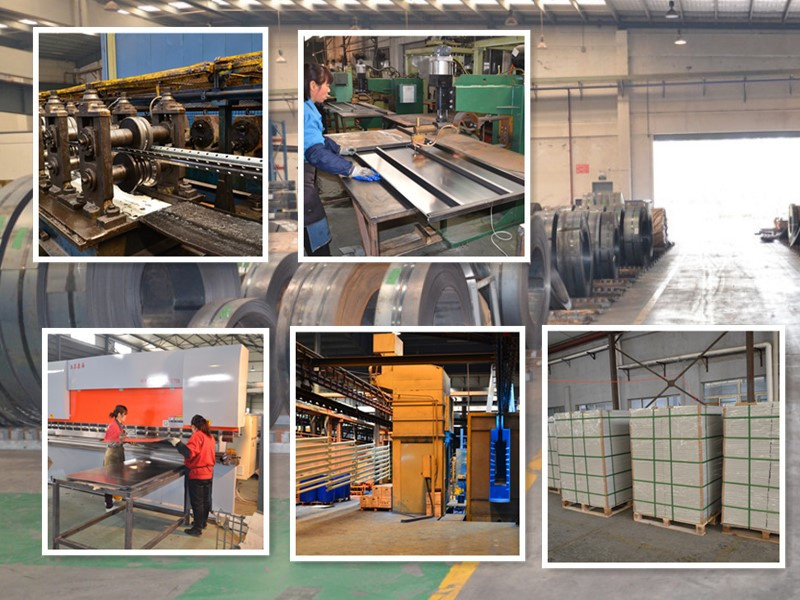

5. Factory Production:
6. RFQ documents: Before you send us your Requirement For Quotation, please prepare the following information:
- Warehouse layout CAD drawings if available.
- Carton box size, width, depth and height.
- Loading weight per box.
- Clear height of the warehouse
- Required line items to be stored.
- Your intra logistic flow within the warehouse.
- mateail handling equipment informaiton such as picking trolley, mobile ladders, etc.
