Prod Model: |
FYD-Shelf 004 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Serviceability: |
Common Use |
Development: |
Conventional |
Closed: |
Open |
Height: |
0-5m |
Mobility: |
Adjustable |
Structure: |
Shelf |
Material: |
Steel |
Usage: |
Supermarket |

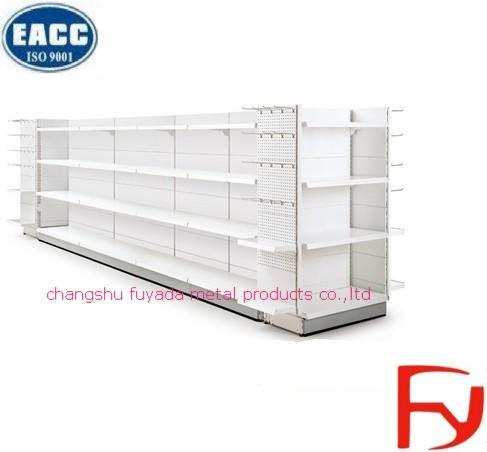

Product Description
The shelf is a fully dismantling the structure, composition and disassembly to facilitate saving, without using any tool, product display can be freely adjusted storey, corrosion resistance
Supermarket shelf standards:
1. Supermarket shelf Size can be according to customer design.
2. Square tube section size of 60 * 30 (length * width), material thickness 2.5mm. One side by the force of 600Kg, to allow for the height of the maximum deflection of 1 / 1000, safety factor of 1.5.
3. Laminates: Thickness 0.8mm, the bottom of the welding ribs, safe and reliable. Laminates each floor bearing weight 250Kg, guide layers to allow deformation of the length of the maximum deflection for the layers 2 / 1000. Safety factor of 1.5.
4. Structure: All access for the buckle formed layers are free to change, quick and easy installation.
Changshu Fuyada Metal Products Co., Ltd. Is a professional manufacturer of supermarket equipment, storage and logistics products, which was established in year 2001. The main products cover supermarket shelves, wire shelves, racking system, warehouse racks, Shopping trolleys, steel containers, roll containers and transportation positioning products etc.
As the business progressed, now we have more than 200 employees with annual export turnover at 20 million USD. Our main market covers the US, Canada, European Union, Mideast and South America. Our business is being expanded every year.
With advanced equipments and professional engineers, we can make all products based on customers' special requirements. We design for our customers, We think what our customers think. We produce for our customers. We ensure the products quality. Our factory was certified by international quality assurance ISO9001. Our products and services were well proved by customers all over the world.
To meet all customers' needs with competitive prices and excellent services, we treat incessant innovation and cost on top strategy as our basis of development.
Our belief: Connecting people. Great credit, quality first, best service
Our mission: Meet all requirements from our customers with efficient services.
We, Fuyada people warmly hope to cooperate and develop with you for good future.
