2016 China Nanjing High Quality USA Style Teardrop Pallet Rack
| Price: | US $ 0.85-0.9/Set |
|---|---|
| Trade Terms: | FOB,CIF,others |
| Min Order: | 100/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | EBIL-SDKHJ |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | as Request |
| Color: | Blue, Orange, Green, Red, Grey |
| Finishing: | Powder Coated |
| Width: | 2000-3500mm |
| Model Number: | Ebil-Tphj |
| Feature: | Corrosion Protection |
| Use: | Warehouse Rack |
| Certification 1: | ISO9001:2008 |
| Certification 2: | CE |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Closed: | Semi-closed |
| Development: | Conventional |
| Serviceability: | Common Use |
| Type: | Heavy Duty Pallet Rack |
| Height: | 2000-3500mm |
| Weight: | 1500-4500kgs/Level |
Product Description
2016 China Nanjing High Quality USA Style Teardrop Pallet RackMain Features:
1) Suitable for large amount of cargo with small number of kinds;
2) The height of each beam can be adjusted by pitch 50, 50.8, 75mm freely
3) Smart section design and high-quality steel
4) It facilitates the use of forklift trucks, electric reach trucks, narrow aisle turret trucks
5) It is the most widely used design of the storage system

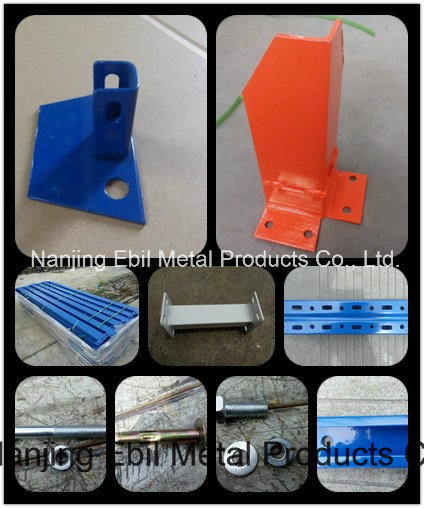

6) Parts: Upright poles, pallet support arm, wall ties, horizontal bracing, connection column, wire mesh deck, safety pins, wire footing plates etc.
7) Material: High quality steel; Such as Q235, ss400
8) Max load capacity: As required
Material Q235B steel cold roll formingLoading max 4000kg per layerSize

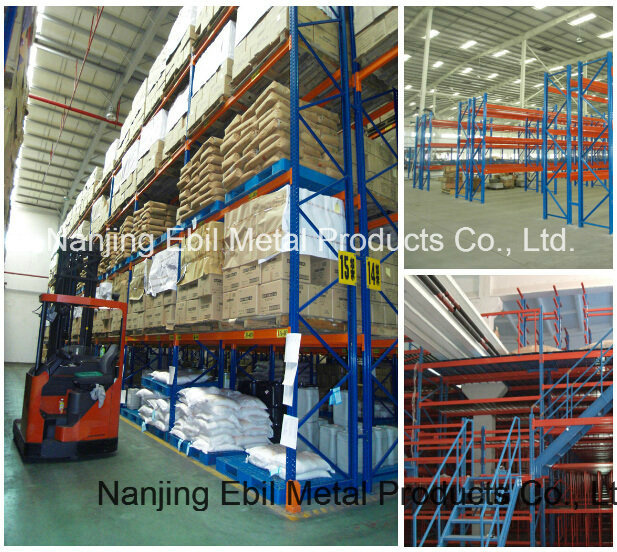

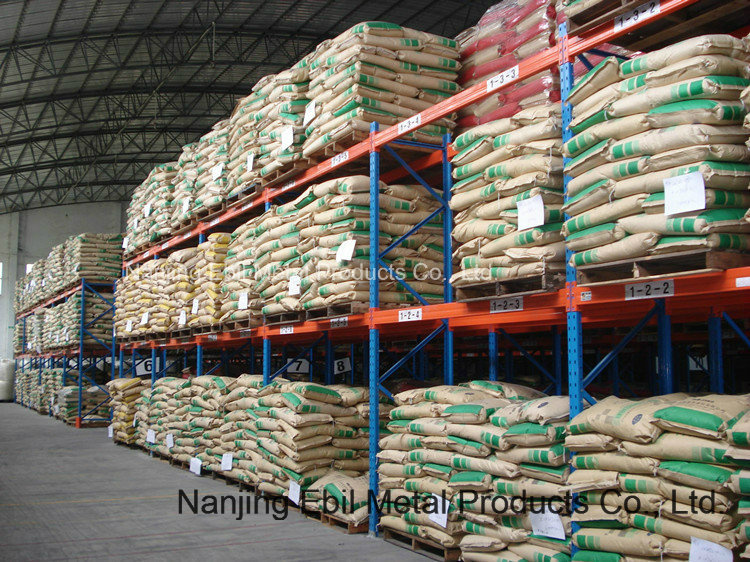

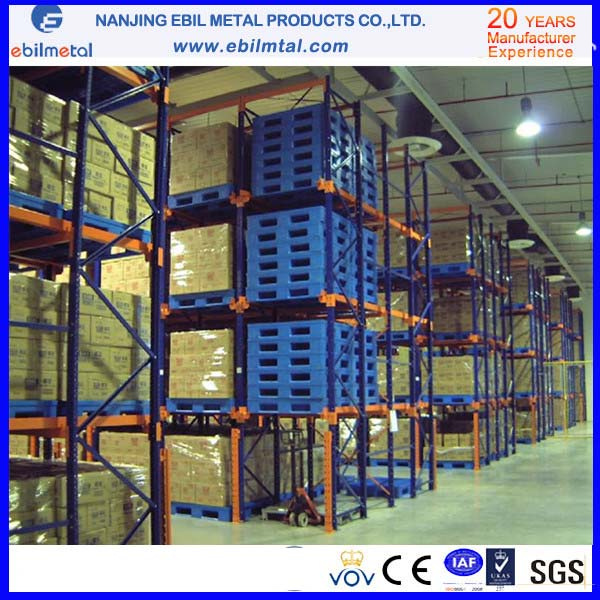

Product display
Features
1, Most widely used storage rack, permits only one deep pallet load and back-to-back structure;
2, Make all pallets accessible from the aisle;
3, Rack loading are topped with cross beams or metal decking, MDF,
4, Fro all indsutry warehouse
Adjustable75mm per pitchStorage styleFirst in- first out, first levels can be on the groundColourBlue uright and orange beam; Others: yellow, greyCustomized:
Please inform us the following information, we can provide the solutions as your requirment, thanks!
1) Size of the warehouse
2) Width, depth and height for each unit of rack
3) How many Levels for each unit of rack
4) Loading capacity for each pallet or for each level of beams
5) Color
Loading photos
Advantage:
Low MOQ: Meeting actual small requests;
OEM Acceptable: We can produce you design;
Good service: We treat clients as friend;
Good quality: We have strict quality control system. Good reputation in the market;
Fast delivery: Scientific production arrangement to ensure the fast delivery.
For new and old import and export customer supply:
1. Solutions simple and regular warehouse rack/metal shelving, high-end warehouse / complete large-scale Storage logistics system(5000MT/PER MONTH) warehouse planning, conveyance equipment, various racking and storage management.; Optimize your warhouse shipshape; Economize space and cost.
2. A professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology; Ebil Metal strictly implements ISO9001 Standard in all pperation; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
3. Supply Specialized installation guidance and after services that anytime and any country if customer need.
4. Reply your inquiries within 24 hours anytime and anywhere.
Customer need is the most important; Customer benefit is our benfit; Our grow from company credit and working duty for our new and old customers
Ebil Metal (China Factory) is a specialized designer and manufacturer of storage logistics techniques systems, including metal racks, multi-layer /Mezzanine warehousing systems, warehouse storage logistics solutions systems has more than 20years experiences and exported more than 160 countries.
| 1. Style | Pallet style, easy installation and adjustable |
| 2. Certification | CE, ISO9001:2008 |
| 3. Regular size/unit | (L) 2,700 x (W) 1,050 x (H) 5,025mm, 4 levels loading, Loading: 2500kg/level |
| 4. Customized sizes accepted | Yes |
| 5. Adjustable size | 75mm |
| 6. Standard color | Blue, orange, green, red, grey |
| 7. special color available | Yes |
| 8. MQQ | 10 units |
| 9. Delivery time | 7 -15days for 2*40' containers |

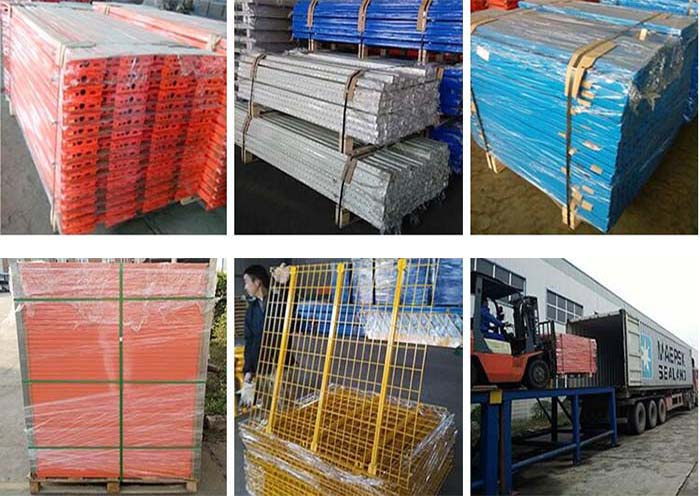

| 10. Standard exporting package | Metal strip, film, paper board and master carton |
Ebil Metal(Nanjing) Products Co., Ltd, professional manufacturer of metal shelving, storage teardrop pallet rack system and Intelligent Manufacturing storage equipment. Has more than 26 years manufacturing experiences, 15years exporting experience, exported more than 120 countries, and finished more than 10000 rack projects from design, produce to install. Like Southeast Asia, Europe, and America etc., providing the timely, thoughtful, professional service to the growing customers to win and lasting trust and industry credibility from all of these customers.
