Prod Model: |
Dedi 1900d |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Application: |
Outdoor AD Player |
Screen Size: |
20-30 Inches |
Installation: |
Combined |
Type: |
Network Version AD Player |
Touch Screen Type: |
Resistive |
Screen Technology: |
LCD |
Interface Type: |
D-Sub(',VGA) |
Remote Control: |
With Remote Control |
OS: |
Android |
Customized: |
Customized |
Product Description
Material | Plastic |
Installation | Wall Mount or Floor Stand |
Unit Size | 1012 (L) x 356 (W) x 121 (H) mm |
Image Resolution | 5000 x 5000p Max |
Video Resolution | 720 x 480p Max |
Speaker | 2 x 1W |
Remote Controller | IR Remote Controller |
Menu Language | English, Germany, French, Spanish, Russian and Others |
Power Supply | 100-240V AC |
Power Consumption | 35W |
Working temperature | 0oC~60oC |
Storage temperature | -20oC~80oC |
Working humidity | 85% |
Packing | 1pc/CTN, 108x43x24cm, N.W.: 9kgs, G.W.: 10.5kgs |
Standard Color | Black |
Panel Size | 19 inch LCD |
Display Ratio | 16:10 |
Resolution (pixel) | 1440x900 |
Color | 16.7M |
Pixel Pitch (mm) | 0.3(H)x0.3(V)mm |
Brightness (nits) | 450cd/m2 |
Contrast | 1000:1 |
View Angle | 160o / 160o |
Response Time | 5ms |
Life (hrs) | 50000 |
Internal Memory | 1GB |
File Format | JPG, MPEG1/2/4, Divx, Xvid, M-Jpeg |
Slots | SD, USB, DC |
Network | WiFi 802.11b/g |
Features of Signage
1. Content update via internet :
All setting and contents upgrade can be done by any internet(WiFi/RG45/3G/4G) connected PC from anywhere;
2.Content Management:
Upload video or image file and Schedule Playlist from any internet connected PC;
Assign / Group LCD:
Assign device to different User, Group them according to demand, assign different contents for Different Group;
3.Auto Power on / Power off:
Setup the auto power on/off time from server remotely;
4.Real-time Status:
Check each signage from Management Server; Make you maintain all devices in time;

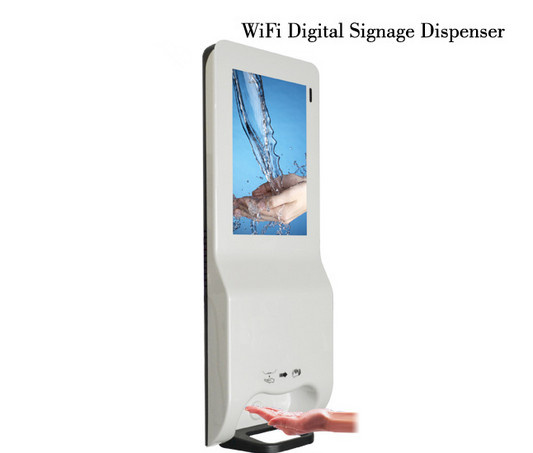

Features of Soap Dispenser :
1.Auto Dispense:
Auto Dispense by Sensor, touch free to avoid cross infection;
2.Power Supply:
Work by 4pcs AA battery, can last for 10000 times; or use USB cable to supply power from advertising player
3.hand sanitizer
support liquid, gel and foam hand sanitizer dispensering, 3 kinds of pump for optional
4.Dispensing Life:
The life of our dispenser is more than 650000 times;
DEDI HK Technology Co., Ltd, founded in 2009, is a professional and leading HI-TECH company which specializes in R&D, production, sale of high-brightness LCD panel with LED backlit. Through independent innovation, it has been committed to provide customers with energy-efficient, environmental, outdoor LED panel and all-weather outdoor LCD advertising machine.
Company's business scope covers more than 100 countries and regions, products are widely used in advertising machine, digital signage, industrial computer, Kiosk, electronic newspaper, military aviation, medical equipment, display system on high-speed railway station and metro station, etc. At present, the display size of LCD panel with LED backlight from 7 inch to 82 inch, its brightness from 500 nit, 1000 nit, 1500 nit, 2000 nit to 2500 nit.
Company has comprehensively implemented ISO9001 quality management system. Production is conducted by the standard of RoHS and WEEE. On production process, we value every detail to fulfill your expectations. High-quality product and good service is provided by us at the principle of "Technology and science prospering enterprise, service upmost".
Company's direction: Client's reputation is to honor, and customer win-win is the mission
To science and technology uphold: "user experience" of the service concept, workflow management technology, exquisite manufacturing scientific, standardized production technology, perfect security system, strict working attitude, high quality service, excellent quality assurance, rational price, win-win business philosophy, in good faith with customers more professional cooperation.
