Prod Model: |
T-10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Shape: |
Flat |
Appearance: |
Flat Tempered |
Standard: |
GB15763.2-2005 |
Steel Degree: |
Tempered Glass |
Thickness Of Flat Tempered Glass: |
10MM |
Thickness Of Curve Tempered Glass: |
10MM |
Fragment State: |
Ⅲ |
Technics: |
Physically Tempered |
Flatness: |
High Class |
Usage: |
Military |
Product Description
3-12mm Clear Tempered Glass/Toughened Glass Use for The Buliding*More than 10 years manufacturer and supplier experience
*Quick delivery of 15 days.
*Australian Standard: AS/NZS 2208: 1996-safety glazing matererials
*Safety strong packing and loading
*Option processing clear, frosted, heat soaked, heat strengthened
*Edging: Flat edge, grind edge, polished edge, beveled edge and others.
Tempered Glass/Toughened GlassTempered glass is made by heating float glass to its softening point ( 650-700° C )and then suddenly cooling down to form compression in the surface layer of the glass, thus the mechanical strength is increased by 5 times.
Features:
1.5 times harder than ordinary float glass.
2. Tensile strength for float glass 40 MPa (N/mm2), tempered glass, 120-200 MPa (N/mm2)
3. Quality standard AS/NZS 2208: 1996
4. It withstands abrupt temperature change of 220 Centigrade.
5. Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body.
Heat Strengthened Tempered Glass1. Better flatness than tempered glass
2. Effectively resist the effect of thermal stress, avoid glass thermal explosion
3. Withstand a very wide range of rapid temperature changing with endurance of 200-300º C
4. Cooling rate lower and surface stress smaller than tempered glass
Use high quality raw clear glass, visible light transmittance(%) from 4mm-19mm
Specification:
Flat Tempered GlassMIN: 90x90mm, Max: 3660x2140mm
Thickenss: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 15mm, 19mm
Bent/Curved Tempered GlassMax Size: 2200x750(mm)
Min Size :400*300(mm)
Thickness :5-19(mm)
Min. Benting Radius 370mm
Applications:
1. External use of windows, doors, curtain wall, shopfronts, offices, houses, shops etc.
2. Interior glass screens, partitions, balustrades etc.
3. Shop display windows, showcases, display shelves etc.
4. Furniture, table-tops, picture frames etc.
Tempered Glass Equipments1. Water jet machine, cutting tolerance +-0.1mm
2. Screen Printing Equipment
3. Single Straight-line Glass Edging Machine
4. Double Straight-line Glass Edging Machine
5. Round Glass Edging Machine
6. Glass Drilling Machine
7. Glass Tempering Furnace
8. Glass cutting line

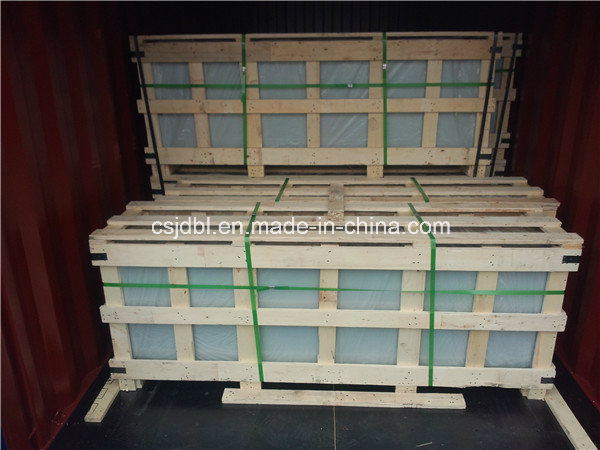

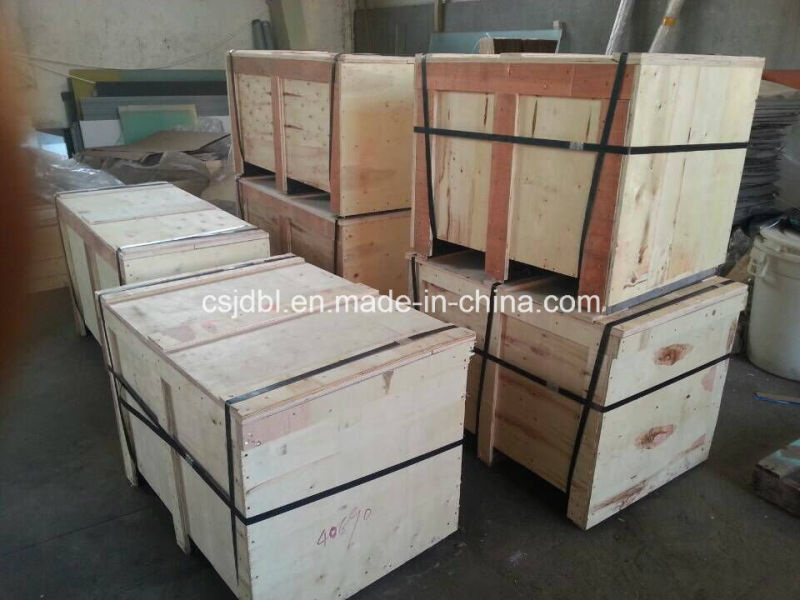

Packing detail: 1. Interlay paper between two sheets
2. Timber end caps
3. Iron/plastic belt for consolidation
4. Safety corner
Density | 2.5g/cm³ |
Tensile Strength | 120-200 MPa (N/mm2) |
Compressive Strength | 1000 N/mm 2 |
Yong's Module | 73 Gpa |
Coefficient of linear expansion | 9 x 10 - 6 m/Mk |
Softening point | 650-700°C |
Thickness | 4mm,5mm,6mm,8mm,10mm,12mm,15mm,19mm |
Payment term (1) | 30% deposit ,balance paid against the copy of B/L |
payment term (2) | 30% deposit ,balance will be L/C at sight |
Delivery time | 15 days after received the deposit |
Packing | End caps pakcing within stripe and paper |
MOQ | 50 Square meter |
Loading port | Qingdao port |
Australian Standard: | AS/NZS 2208:1996-safety glazing matererials |
FAQQ:What kinds of glass can you provide?A:laminated glass,tempered glass,insulating glass and low-e glass etc. Q: What is your minimum order quantity?A:Our MOQ is one 20 feet container (20-27Tons).We can also do LCL orders. Q: How can I get samples to check your qulity?A:We offer samples for free. ALL YOU HAVE TO DO IS ASK! Q:Can you do OEM Orders?A:Yes,we hire technicians to design your products as per your specific needs. Q:What is your trade Term?A:FOB,CFR,CIF,EXW. Q:What is your payment term?A:T/T,L/C. Q:What is your delivery time?A:15-30 days,depend on the order quantity.
Qingdao Crearion Classic Co., Ltd is manufactures and supplies a various of glass for architectural, automotive, decorative and residential etc. Uses. We have exported flat glass, processed glass to more than 80 countries for 10+ years.
Quality
We inspect all products in our warehouse strictly, and have the following quality certificates & inspection credentials, also can do as your request to make sure the quality as your demand: CE, CCC, SGS, and ISO9001, etc.
Safety Packing &Loading
Our strong safety packing and professional staff of loading ensure that the glass and furniture are safely loaded, and will be in same perfect conditions when arriving. We are always improving our paking and loading to make sure the minimal damage and easier off-loading.
Services
*Our wide range of glass including raw and processed glass products in varietyof colors and customizable options to make it even easier to meet your demands wih high quality.
*Whatever the quantity is, we will do our best to make you satisfied.
*Our extensive glass expertise will help you make well-informed purchasing decisions.
*Our prompt after-sale services and supports will ensure you a smooth and successful glass purchase experience.
*Our aim is not only to provide you high quality products with good price and best services, also to build and maintain a long-term business cooperation relationship with each customer.
Welcome to visit us.
