Home LED Light Products 3W-9805301b1h High Temp ESD Antistatic PCB SMT Magazine Rack 200degree. C

3W-9805301b1h High Temp ESD Antistatic PCB SMT Magazine Rack 200degree. C

3W-9805301b1h High Temp ESD Antistatic PCB SMT Magazine Rack 200degree. C
Price: US $ 88/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: 3W-9805301B1H
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Hightemperature: 200degree.C
Type: ESD Shelf
Material: Plastic
Usage: SMT Production Line

Product Description

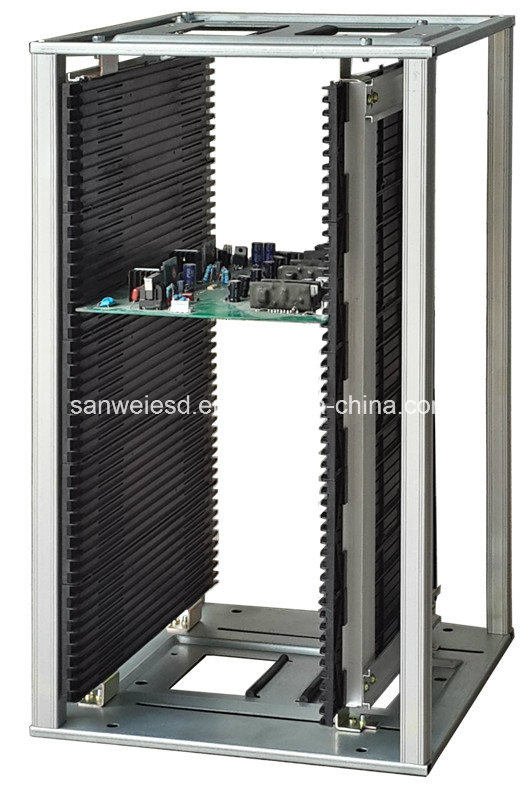

High Temp ESD Antistatic PCB SMT Magazine Rack 200C

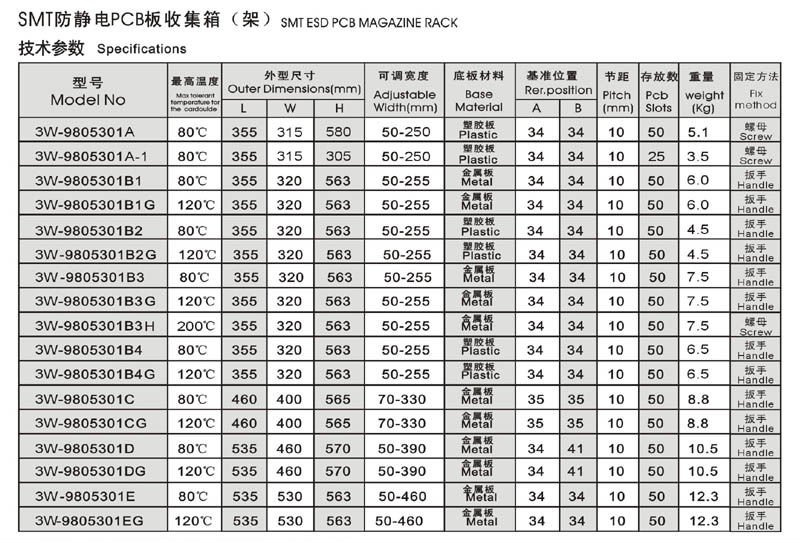

Code: 3W-9805301B1H

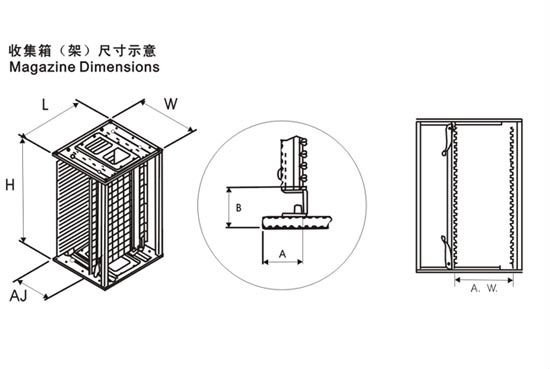

-Contour Size: 355mm*320mm*563mm

-Temperature: 200degree. C

-Description: 50PCS of PCB Plates can be stored

-The specification of PCB plates: 330mm× (50-255)mm

-Guide slot of side plate: Depth 3mm, Width 5.3mm, Pitch 10mm

-Surface Resistance: 104Ω ~108Ω

-Fix method: Handle adjustable/screw adjustable

-This ESD rack can stand for 200deg. C, screw adjust can be putted into oven.





ADVANTAGES:

1. Have exported for more than 8 years

2. Have professional engineer and efficient management

3. Delivery time is short, normally in stock

4. Small quantity is allowed.

5. The best & professional sale services

6. Our products have been exported to USA, South America, Europe, Southeat Asia, India, Israel, UK, Australia, South Africa, etc.
7. ISO9001: 2008, ISO14001: 2004




Zhejiang Sanwei Anti-Electrostatic Equipment Co., Ltd., Was established in 1988, it is a "High-tech and New Company in Zhejiang Province", China's anti- static units Association, and "the contract and keeping promises units". We have drafted and formulated the General Specifications for Electrostatic Circulation Containers (SJ/T11277-2002), and we participated in the modification work of Requirements for Electrostatic Discharge Protected Area (GJB3007-1997) and General Specification of Testing Method for Electrostatic Protection in Electronic Production Manufacturing and Using System (SJ/T10694 ). Our company is the important ESD anti-electrostatic equipment and material researching and producing base in China.

3W's development and production of anti-static products have gained dozens of independent intellectual property rights, of which the material which can tolerant 200 deg. C temperature gained State of invention patents, a large number used in SMT rack, etc. It has reached the international lead level. At the same time an international leader in clean white-permanent anti-static materials (tolerant temperature at 160 deg. C) widely used in high-end semiconductors, aviation, aerospace, chemicals, and electronics fields. Which were large-used and confirmed Intel, Motorola, Siemens, IBM, Panasonic, Nokia, DELL and other large enterprises.
