Home LED Light Products 6mx1m Double Side 1000kg Long Span Cargo Storage Cantilever Rack
6mx1m Double Side 1000kg Long Span Cargo Storage Cantilever Rack
| Price: | US $ 124-260/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | SL-CR-01 |
|---|---|
| Style: | Bolt-on Structure |
| Cantilever Arm: | Bolt-on/Adjustable 140mm |
| Colour: | Blue and Orange |
| Upright: | C/C Welded |
| MOQ: | 1 Unit |
| Capacity: | 1000kg Per Arm |
| Material: | Steel |
| Structure: | Cantilever Rack |
| Mobility: | Adjustable |
| Height: | 0-5m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | for Special Purpose |
| Weight: | 1000kg |
Product Description

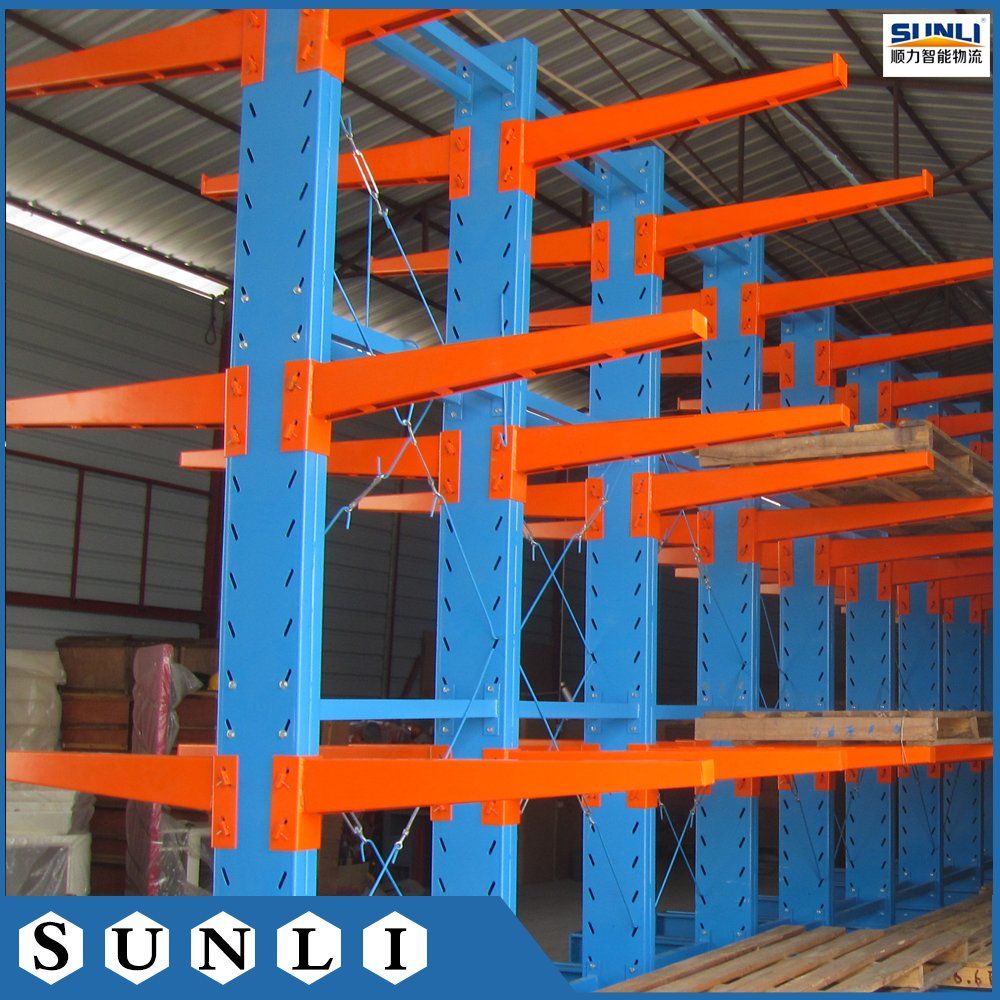

6mx1m Double Side 1000KG Long Span Cargo Storage Cantilever Rack

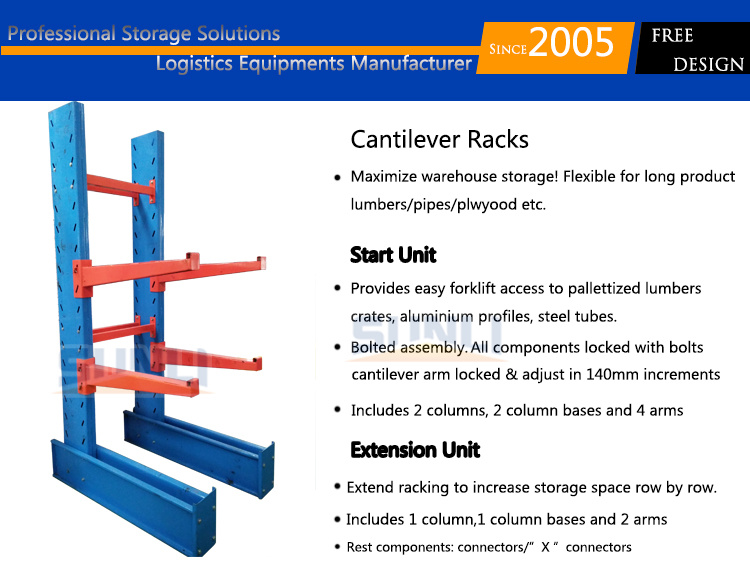

Main Feature&Components for Sunli Cantilever rack
The "Christmas tree" theory behind cantilever rack is what makes it so appealing.

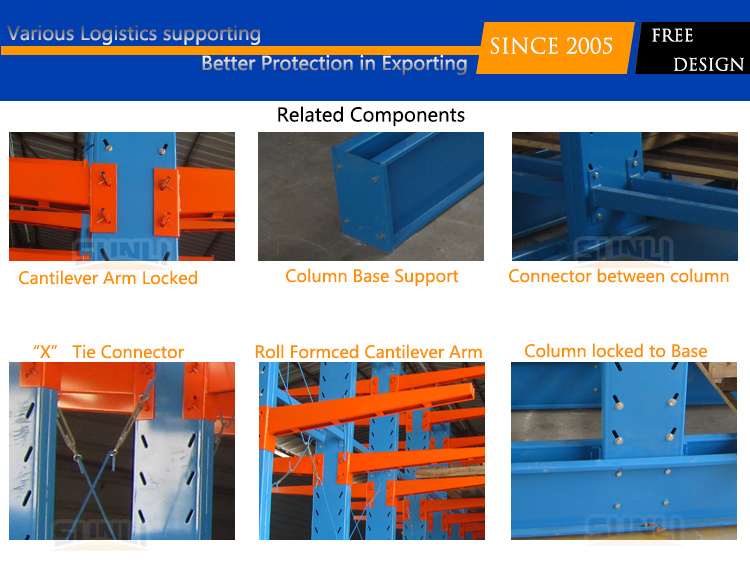

There are four main parts to the cantilever rack concept:
+ Uprights: vertical columns in the back that are bolted to a base
+ Bases: To maintain the balance during weight-laden from cantilever arms
+ Arms: strong "limbs" extending out from the uprights
+ Braces: the hardware holding the arms, uprights, and base together
Technical Description for cantilever rack system
| Style | long items storage, lumbers, aluminium profile storage Plywood storage, steel tubes, wooden crates storage |
| Thickness | Column/bases/cantilever arms: 2.0mm~4.0mm Connectors/braces: 1.5~1.8MM |
| Cantilever arm length | Max 1200MM(1000KG laden) ( the shorter of arm, the stronger loading on each arm) |
| Column length | Cantilever arm length + extra 400~500MM |
| MOQ | 2 units |
| The width between columns | 400MM~1500MM ( narrow space will make stronger loading on cantilever ) |
| Material | Made of Q235B steel |
| Lead time | 25~30days( regardless of purchase quantities) |
| Stock | We donot have any stock for cantilever rack system ( all sizes are made purpose/perosnal-designed) |
| Colour | RAL 5015( blue) + RAL 2004(Orange) |
| Load | Load capacity is 500kg to 1TON per arm |
Detailed Image for Double Side cantilever rack

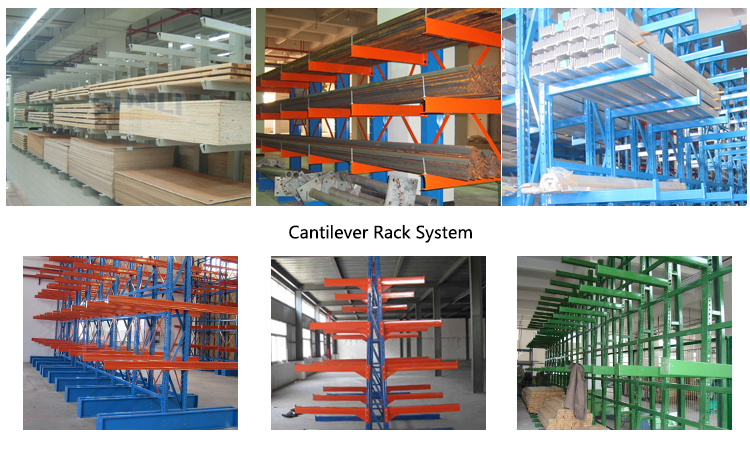

Different project for cantilever rack system
Please inform us following information to get prompt offer for cantilever rack system
+ The dimensions of single rack unit ( or palletized load descriptions)
+ The palletized payload
+ Row of racks( single row, back-to-back row or multiple rows)
+ How many palletized load within one unit
( Please refer to the Product Description on the top)
FAQ
1, What is MOQ limitation for double side cantilever rack?
++ NO. But large purchase will bring competitive prices, 20FT container ( 10T~13T) is highly recommended, so that production can be better handled.
2, What is the lead time in Sunli?
++ As per 20FT container loading, manufacture time is about 21days; Regarding some customized items 25~27days will be covered.
3, What is payments methods Sunli can accept?
++ T/T and L/C are welcomed.
4, How about Sunli's sample delivery?
++ Short section of uprights and beams can be provided free of charge. But the freight will be collected upon your duty.
5, What is warranty for Sunli's rack system?
++ All rack items will be warrantied against manufacture's defects.
++ To avoid any shortage or missing components, we will provide 1%~2% spare parts besides basic ones.
