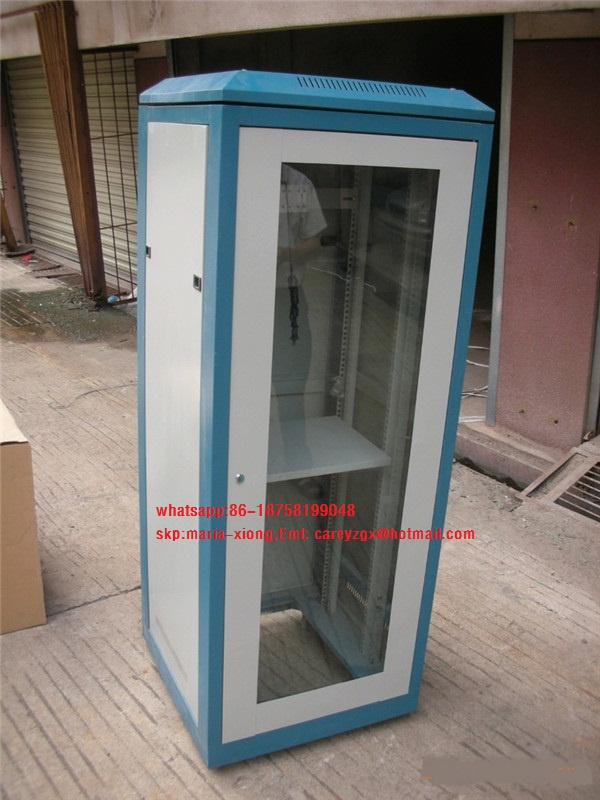

6u to 47u Network Cabinet/Server Rack with Height

Type:	Server Cabinet
Usage:	Wireless Monitoring System
Installation:	Vertical
Fan Number:	Two
Capacity:	10U-20U
Certification:	GS
Condition:	Used

Product Description

odel NO.: ST-NCE-42U-610
Usage: Network Integration System
Fan Number: as Per Customer Request
Certification: CE/ISO/RoHS
Size: 600 X 1, 000 X 2, 055mm
Trademark: SOLITONE
Specification: CCC, CE, RoHS, SGS
HS Code: 8517709000
Type: Network Cabinet
Installation: Vertical
Capacity: 18-47u
Condition: New
Quality: Top Quality
Transport Package: as Per Customer Request
Origin: China
Product Description
We are specialized in producing LAN cable, patch panel, keystone jack, patch cord, cable management, modular plug, faceplate, network cabinet,PDU and much more since 2000

Customer Branded/Unbranded Network Cabinet
Standard
1.Comply with ANSI/EIA RS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard
2.Compatible with metric, ETSI and 19'international standard

Features
1.Available in black and gray
2.Good compatibility, adapt to more servers, Perfect ventilation
3.Vented front door and rear door enable ventilation and reliable operation
4.The top and bottorn wiring channel can be closed and adjusted
5.Optional plinth to meet under base wiring, ventilation and rat-proof
6.Rack's side panel can be easily assembled and with Advanced lock
7.Adjustable feet and heavy duty castors are available at the same time static loading: 800kg. (with adjustable feet).
8.Height, width, and depth selectable, full range of optional accessories.
9.Surface finish: Degreasing, pickling, phosphating, powder coating

Materials
Cold rolled steel sheet; Thickness, frame 1.2mm. Mounting rail 2.0mm(1.5mm for 600mmdepth), fixed shelf 1.2mm, side panel 1.2mm, smoke-gray tempered glass 5mm

Application
Widely applied in finance, securities and data center; Adopted by the professional servers' network


Model No	Capacity/U	Width*Depth*Height (mm)
ST-NCE47-66	47U	600*600*2277
ST-NCE47-68		600*800*2277
ST-NCE47-610		600*1000*2277
ST-NCE47-88		800*800*2277
ST-NCE47-810		800*1000*2277
ST-NCE42-66	42U	600*600*2055
ST-NCE42-68		600*800*2055
ST-NCE42-610		600*1000*2055
ST-NCE42-86		800*600*2055
ST-NCE42-88		800*800*2055
ST-NCE42-810		800*1000*2055
ST-NCE37-66	37U	600*600*1833
ST-NCE37-68		600*800*1833
ST-NCE32-66	32U	600*600*1610
ST-NCE27-66	27U	600*600*1388
ST-NCE22-66	22U	600*600*1166
ST-NCE18-66	18U	600*600*988
