Prod Model: |
EBILMETAL-PR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
as Request |
Certificate: |
Ce |
Capacity: |
5001kg-10000kg |
Material: |
Steel |
Entry Type: |
2-Way |
Type: |
Pallet Rack |
Style: |
as Request |
Product Description
Packaging & Delivery
Packaging Detail: Film+cardboard
Delivery Detail: 20 working days
Specifications
Narrow-Aisle Rack consists of same basic components but placed closer together eliminating the wasted space of a wide aisle.
VNA Pallet Racking
Narrow-Aisle Rack consists of same basic components but placed closer together eliminating the wasted space of a wide aisle.
Narrow Aisle Racking

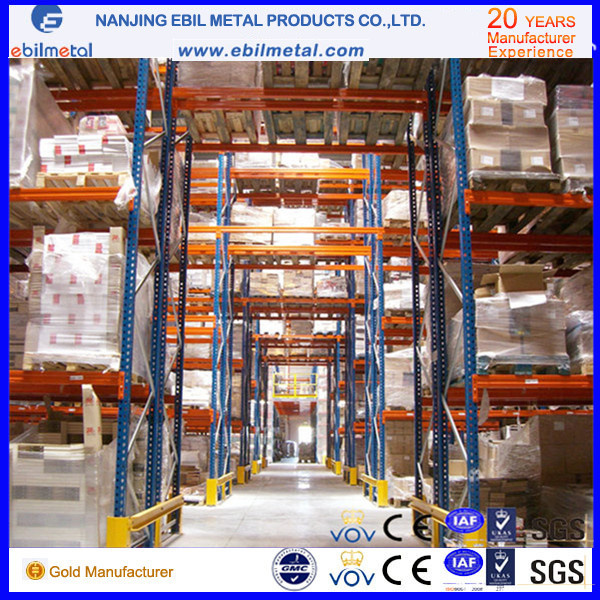

Globals Narrow-Aisle Racking consists of the same basic components as conventional racking but with runs placed closer together eliminating the wasted space of a wide aisle. The pallets can be stored to a greater height to maximize all available cubic space. The pallets are accessed via specialist trucks, which are guided in the very narrow aisles by either low or high profile floor mounted rails or electronic wire guidance in the floor.
Advantages of Globals Narrow-Aisle Pallet Racking:
Accessibility to individual pallet
Configuration for maximum storage, density and efficiency
Specialist narrow aisle fork-lift trucks are required to work in the reduced aisle
Better space utilization
Perfect occupancy rates
Specifications of Beam |
Type | | Item | Height(mm) | Width(mm) | Thickness(mm) |
P style Pipe(Step Beam) | | 1 | 50 | 30 | 1.5 |
2 | 60 | 40 | 1.5 |
3 | 80 | 50 | 1.5 |
4 | 110 | 70 | 1.5 |
5 | 140 | 70 | 1.5 |
6 | 160 | 70 | 1.5 |
Box Beam | | 7 | 80 | 50 | 1.5 |
8 | 100 | 50 | 1.5 |
9 | 110 | 50 | 1.5 |
10 | 120 | 50 | 1.5 |
11 | 140 | 50 | 1.8 |
12 | 160 | 50 | 2.0 |
Specifications of Upright |
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2.0 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2.0 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2.0 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3.0 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3.0 | 21000 |
![](/proimages/44f3j00YRLEhoOIagkN/adjustable-and-safety-1000-3000kg-level-heavy-duty-pallet-rack.jpg)
![](/proimages/44f3j00YUDtlMNrapqO/adjustable-and-safety-1000-3000kg-level-heavy-duty-pallet-rack.jpg)
![](/proimages/44f3j00URLEiKnMbpqO/adjustable-and-safety-1000-3000kg-level-heavy-duty-pallet-rack.jpg)
![](/proimages/44f3j00fRPQiFNcbgkO/adjustable-and-safety-1000-3000kg-level-heavy-duty-pallet-rack.jpg)
![](/proimages/44f3j00GULaiAFJEzqO/adjustable-and-safety-1000-3000kg-level-heavy-duty-pallet-rack.jpg)
