Price: | US $ 870-920/Piece |
---|---|
Min Order: | 1/Piece |
Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Prod Model: | 46 inch Ultra thin bezel LCD video wall |
---|---|
Screen To Screen: | 3.5mm |
Panel Size: | 1018.08(H)*572.67(V)mm, 46" LCD Screen |
Max Resolution: | 3840X2160 |
Viewing Angle: | 180/180 |
Pixel Pitch: | 0.4845(H)*0.4845 (V) |
Color: | 8bit-16.7m |
Contrast Ratio: | 3500 : 1 |
Brightness: | 700CD/M2 |
Backlit: | LED |
Product Dimension: | 1022(L) 576.6(H) 124.8(D) |
Application: | Airport, Station etc. |
Aspect Ratio: | 16:9 |
Feature: | 3D Display |
Optimum Resolution: | 3840x2160 |
Widescreen: | Widescreen |
Response Time: | 8ms |
3D: | 3D |
Interface Type: | HDMI |
Type: | Video Wall LCD |
Screen Size: | 46 Inch |
Support OEM / ODM
Infrared TOUCH ( optional )
42-65 inch Screen can support
Stand-alone / Android / windows version optional
Andy
Phone no :+86 13789084991
Description
♦ Excellent ultra narrow bezel design with just 3.5 mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.

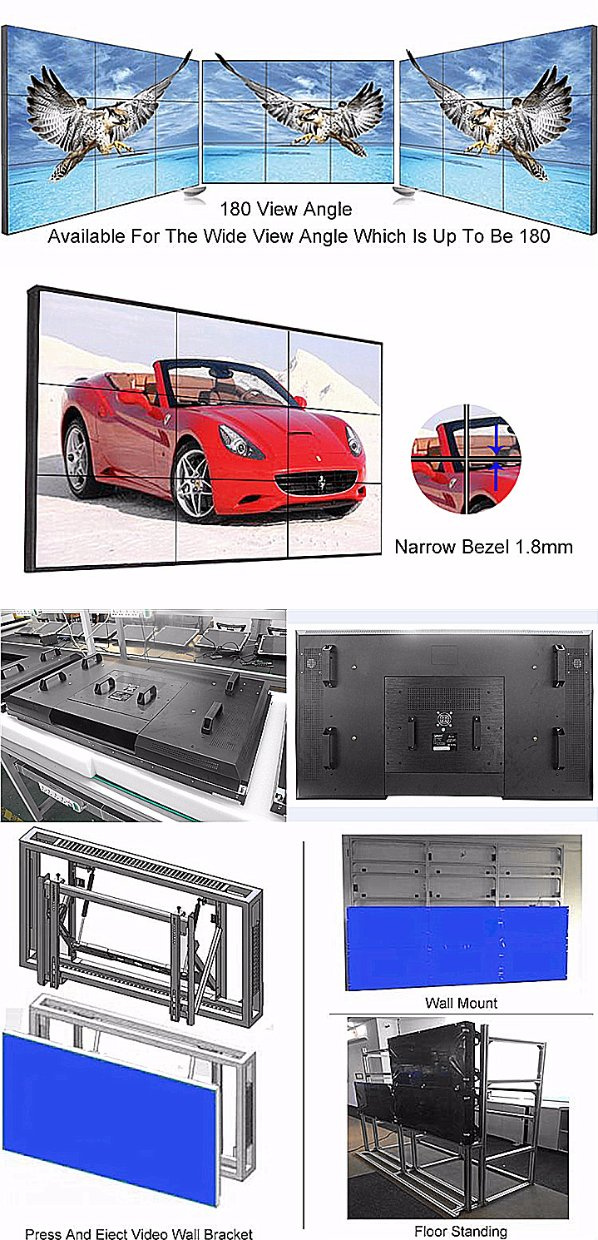

♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42" to 60" Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
USE

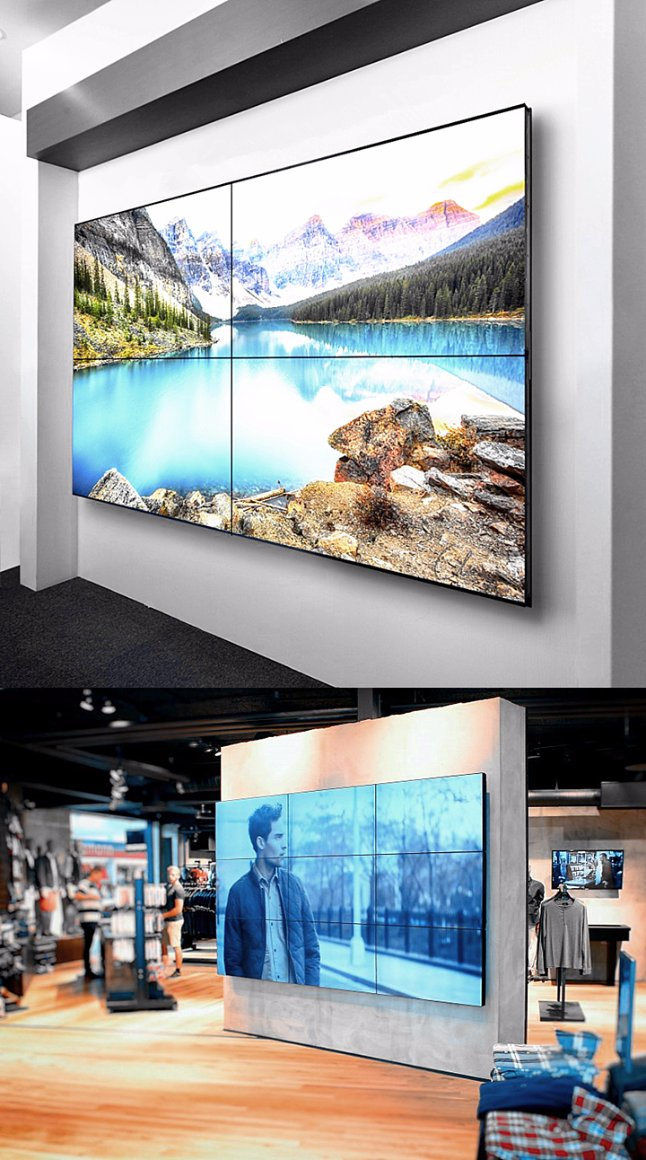

Widely use on Airport, station, catering industry, entertainment industry, medical institution, golf course, supermarket, exhibition, stadium and gymnasium, financial industry, organ and enterprise, building adverting and billboard advertising, subway, hotel, rail way station, bus station, lift, bank, commercial center, wedding photograph, large exhibition, mobile show, chain-store and etc.
LCD Video Wall ( 3.5mm high resolution 700nits 4k supported 46 inch advertisement monitor ) | |
Model No. | SDID4609-E-UHD |
Panel Size | 46" LCD Screen |
Backlight Type | LED |
Display Area | 1018.08(H)x572.67(V)mm |
Aspect Ratio | 16:9 |
Max Resolution | 3840x2160 |
Color | 8Bit,16.7M |
Brightness (nits) | 700cd/m2 |
Contrast | 3500:1 |
Visual Angle (H/V) | 180/180 ° |
Response Time | 8 ms |
Life Span | >60,000 hours |
Bezel width (between screens) | 3.5mm |
Product Dimension | 1022(L)×576.6(H)×124.8(D) |
Product Weight | 25KG |
Interfaces 4K input | |
Input | 1*DVI |
1*HDMI | |
1* DP (Display port) | |
1*VGA (SVGA / XGA / WXGA) | |
2*RS232(RJ45) | |
Output | 1* DP (Display port) |
2*RS232(RJ45) | |
Power | |
Power Supply | AC100V~240V 50/60Hz |
Maximum Power Consumption | 170W |
Stanby Power Consumption | <3W |
Working Environment | |
Working Temperature | 0ºC~60ºC |
Working Humidity | 5%-95%RH |
Company Information |
Packaging & Shipping |
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Certifications |
Contact |
FAQ |
We are a OEM / ODM factory.
Our officially promised warranty time is one whole year after delivery at best.
Our company has been in Alibaba.com for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for years.what's more,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV, Alibaba onsite check certificate. I hope those above will be persuasive enough.Our Trade Assurance Limit is US $736356.7, and it is still going up.
Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
Samsung and LG screenare normally used for the digital signages and video walls, while customized screen is also supported.
We hope you know that our company Gendragon perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.
