Aluminium Profile for Glass Shelves
| Price: | Negotiable/Ton |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
| Prod Model: | YLJCWOO4 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Length Of Profile: | Per Request Most Like 6m |
| Color: | Silver ,Champagne,Bronze,Customized Color |
| Thickness Of Profile: | 1mm-4mm |
| Width: | Max 400mm |
| Height: | Max 400mm |
| Brand: | Yonglijian ,China Famous Brand |
| Application: | Solar System Framing |
| Grade: | 6000 Series |
| Temper: | T3-T8 |
| Alloy: | Alloy |
| Surface Finishing: | Polished |
| Alloying Ingredient: | 6063 |
| Certification: | RoHS |
| Shape: | as Per Drawing |
| Window & Door Aluminium Profile: | All Series |
Product Description

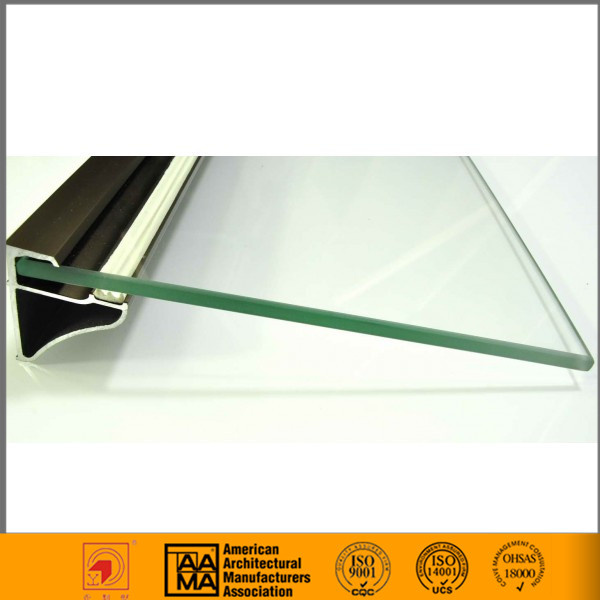

Aluminium profile for glass shelves
Aluminium profile for glass shelves, ideal for display cabinets and glass shelves. Fitted on to the edge rim of the glass, with a slight inclination, it projects light towards the centre of the lower shelf. The main advantage is that it converts the glass surface into a metal like surface whilst also hiding the LED strip.
Applications Aluminium profile for glass shelves:
1.Glass shelving.
2.Display cases.
3.Glass bottle racks for pubs, clubs, restaurants...
4.Advertising. Publicity stands.
5.Furniture...
6. Material: Aluminum alloy 6063 T5
7. Temper: T5
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| Alloy | Temper | Tensile strength test | Hardness test | |||||
| Thickness(mm) | Tensile strength RM(N/mm2) | Non-proportional stretching stress Rp0.2(N/mm2) | Stretching rate A50mm(%) | Pattern thickness(m) | HV | HW | ||
| 6061 | T4 | All | >=180 | >=110 | >=16 | - | - | - |
| T6 | All | >=265 | >=245 | >=8 | - | - | - | |
| 6063 | T5 | All | >=160 | >=110 | >=8 | >=0.8 | >=58 | >=8 |
| T6 | All | >=205 | >=180 | >=8 | - | - | - | |
| 6063A | T5 | <=10 | >=200 | >=160 | >=5 | >=0.8 | >=65 | >=10 |
| >10 | >=190 | >=150 | >=5 | |||||
| T6 | <=10 | >=230 | >=190 | >=5 | - | |||
| >10 | >=220 | >=180 | >=4 | |||||
8 .About us
Yonglijian Aluminum Co.,Ltd processes 30 years in designing ,production ,and exporting of aluminum die casting product for architectures including window ,door and glass wall system, stair handrail, garden fence, housing decoration supples.etc.
We own more than 20,000 die mold for different markets in different thickness and designs. Including aluminum molds for Nigeria, Canada, Australia, South America, chille, etc and never stop developing new die mold for global aluminum profile buyers.
Find no further than us for Aluminum alloy profiles in any alloy and temper and surface treatments.
9.Product range:
9.1 Raw Material:
- aluminum alloy profile for window /door/industrial use/decoration purpose
-Aluminum blank, flat bar, square tube, round pipes, groove, T profiles.
- Aluminum heat sink, and aluminum profile for electricity alliance
9.2 Finished products:
- Aluminum window and door
- Glass curtain wall
-Stair handrail/fence
- Roof lantern
-Aluminum shutter and Louvre
Please contact us for more information about polished kitchen cabinet profile stock!
Established in September 1986 and located in Foshan city zone, Yong Li Jian Aluminium Co., Ltd. is a large aluminum company which concentrate on construction, industrial aluminum materials production; Aluminum alloy products production; Curtain wall projects in one integrated. We can provide design, production, processing, fabrication, after sales quality tracking, and other train services.
Our factory is situated in Gaoming District Foshan Guangdong, with area of 200, 000 square meters, more than 1, 200 staff, aluminum alloy products annual capacity would be up to 150, 000 tons; Window and doors curtain wall engineering capacity is 300, 000 square meters. Our existing aluminum alloy products have more than 200 series and 10, 000 kinds of specifications. Product quality accord with China GB5237 standard, Japan JISH4100, JISH8601, JISH8602 standards, United States AAMA2603, AAMA2604, AAMA2605 standards, and British BS6496 standard.
As one of the earlist Chinese curtain wall engineering companies, Yong Li Jian Aluminium Co., Ltd has Grade-I qualification for curtain wall design and installation. We have professional design team and installation team, new curtain wall products, the ability to develop major projects and installation capabilities.
" Yong Li Jian " as one of the oldest aluminum brands sale our products and installation worldwidely, and established excellent cooperation with the multi-national real estate developers and construction companies. Welcome to visit our factory and cooperate with us!
Our factory is situated in Gaoming District Foshan Guangdong, with area of 200, 000 square meters, more than 1, 200 staff, aluminum alloy products annual capacity would be up to 150, 000 tons; Window and doors curtain wall engineering capacity is 300, 000 square meters. Our existing aluminum alloy products have more than 200 series and 10, 000 kinds of specifications. Product quality accord with China GB5237 standard, Japan JISH4100, JISH8601, JISH8602 standards, United States AAMA2603, AAMA2604, AAMA2605 standards, and British BS6496 standard.
As one of the earlist Chinese curtain wall engineering companies, Yong Li Jian Aluminium Co., Ltd has Grade-I qualification for curtain wall design and installation. We have professional design team and installation team, new curtain wall products, the ability to develop major projects and installation capabilities.
" Yong Li Jian " as one of the oldest aluminum brands sale our products and installation worldwidely, and established excellent cooperation with the multi-national real estate developers and construction companies. Welcome to visit our factory and cooperate with us!
