Angle Type Light Duty Shelf

Angle Type Light Duty Shelf
Price: US $ 22.9-39.9/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: Angle Shelf
Surface Finshed: Good Powder Coating
Loading Capacity: 150kg Max Each Layer
Payment: T/T in Advance
Material: Steel
Style: Four Column Style
Side Number: Single Sided
Weight: Light Weight
Rotary: Fixed
Usage: Convenient Store
Customized: Customized

Product Description


Angle Shelf(Universal Angle Steel Shelf)

Universal Angle steel shelves is one of the light shelf, Uses the high quality cold-rolled steel plate, stamping forming, and disassemble because it is easy to adjust, the combination of flexible, sex is very strong, can be used to increase or decrease at the request of customer placed layer board of the optimum effect of storage.


Features:
  1. The cost is low.
  2. Safe and reliable
  3. Easy to assemble and dismantle
  4. It can be used separately or in combination

Scope of application:
1. It is usually used for small and medium sized pieces and lighter storage, and the single-layer load-bearing capacity is set at less than 150kg.
2. Manual handling, storage and picking.



Product Specification:
Size L*W*H mmLayersLoading CapacityBoardRemark
600*300*20005150kg each layerSteel/Wood MDFWe can also customize the size according to your needs
800*300*20005150kg each layerSteel/Wood MDF
800*400*20005150kg each layerSteel/Wood MDF
900*450*20005150kg each layerSteel/Wood MDF
1000*450*20005150kg each layerSteel/Wood MDF
1200*300*20005150kg each layerSteel/Wood MDF
1200*400*20005150kg each layerSteel/Wood MDF
1200*450*20005150kg each layerSteel/Wood MDF

DimensionPost:38*38*1.2mm
Bar(bream): 1.0mm thickness
Board: steel board 0.5mm T
      Wood (MDF) board 9mm T
Design of the hole"8"hole
ColourBlack,White,Grey or as requirement
MaterialQ195 / Q235 steel
Surface TreatmentGood Powder Coating
Galvanized
AccessoryPlastic foot,
No screw and nut, installation is very convenient
PackingBubble and Carton
ShippingBy sea.
Sample can by air.
Terms of TradeT/T IN ADVANCE
After received 30% payment, we start to production,received 70%balance,then ship out.
Delivery TimeWithin 10-15 Workdays

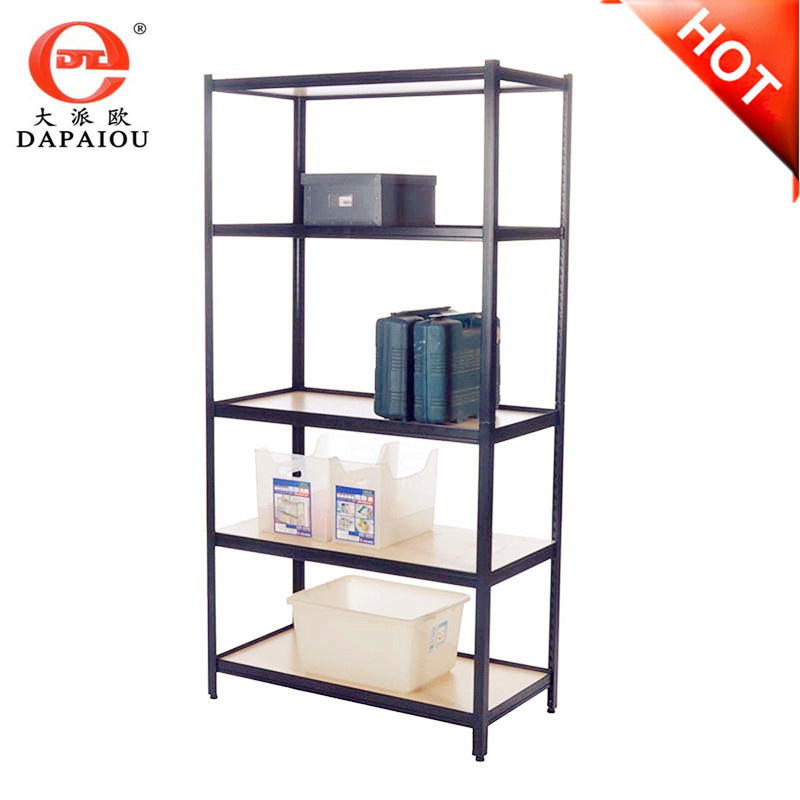

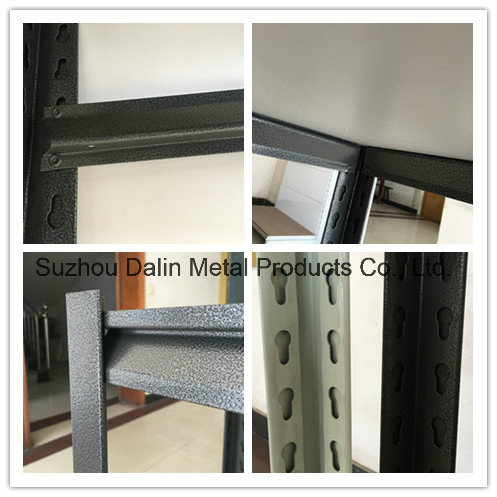

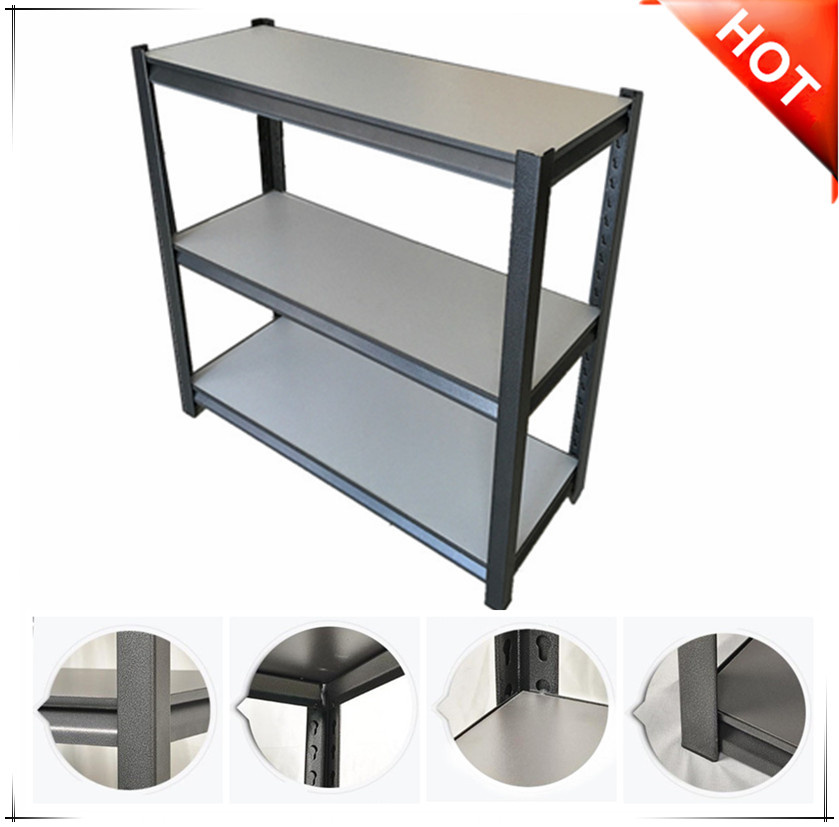

Product show

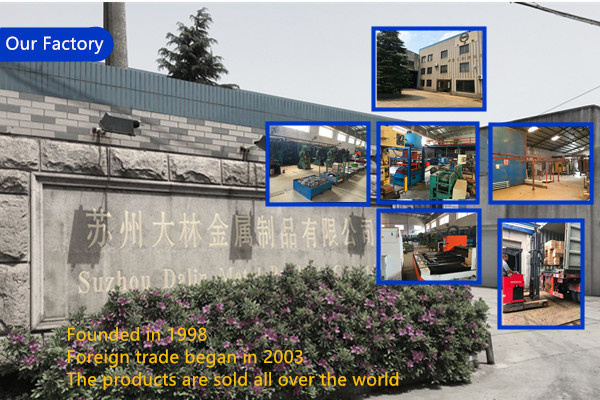

Factory show


Export Countries show


Our Services:
1.There are no screws at all, there are professional design card slots, convenient installation and more stable load.

2.The raw materials of the practical national standard guarantee the quality of the goods.

3.Excellent after-sales service and free installation instructions.

Suzhou Dalin Metal Products Co., Ltd. is a professional manufacturer of racks and logistic equipments, whose major products include racks, various light, medium and heavy storage racks, model racks, logistic table trolleys, trolleys, storage cages, shopping mall and logistic equipments. It is capable of designing various storage racks upon the customers' requirements.

Our company boasts powerful technical strength and advanced equipments, and the factory has introduced the latest models of full automatic surface phosphorization treatment and static epoxy resin powder plastic coating from both at home and abroad. It has also introduced the large foreign storage assembly lines, which can manufacture heavy storage series with the height from 2m to 12m and bearing the weight from 50kg to 3, 000kg for every shelf. The quality of the products all can reach the international advanced level. Since its founding in 1998, the products are very popular in the shopping centers, supermarkets, factory warehouses and distribution fields.

In 2003, our products began to enter the international markets, and some are exported to the Middle-East, America, France, and Germany. With fine quality performance and excellent services, they have won the universal praise from the customers and established sound reputation among the rack industries in China.

At present, the company strictly observes ISO9001 International Quality Management System. We will continue to explore and make innovations, and accompany you to get succeed with our best products, services and prices.
