Home LED Light Products Assembly Free Standing Server Cabinet 600*1000mm 42u Rack

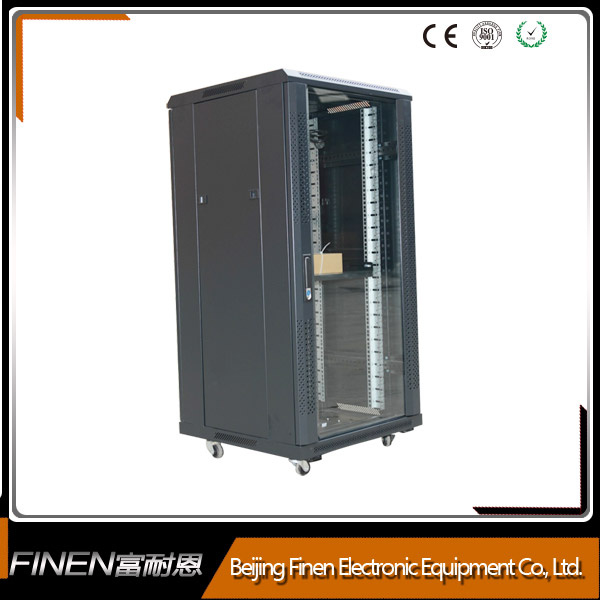

Assembly Free Standing Server Cabinet 600*1000mm 42u Rack
| Price: | US $ 80-200/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 15/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | H2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: | SPCC Cold Rolled Steel |
| Width: | 600mm |
| Depth: | 1000mm |
| Color: | Black, Gray, White |
| Loading Capacity: | 800kg |
| Surface Finish: | Degreasing/Pickling/Phosphating/Power Coating |
| Front Door: | Toughened Glass Door |
| Degree Of Protection: | IP20 |
| Cabinet Standard: | 19'' |
| Accessories: | Fan/Shelf/PDU Optional |
| Type: | Server Cabinet |
| Usage: | Wireless Monitoring System |
| Installation: | Vertical |
| Certification: | IEC |
| Condition: | New |
| Fan Number: | Optional |
| Capacity: | 18-42u |
Product Description
AS FINEN SPCC 19 inch free standing Networking telecommunication racks
Production Information
Basic Information | |
1) Standard | Complies with ANSI/EIA RS-31O-D, IEC297-2, DIN41491: PART1, DIN41494: PART7,GB/T3047.2-92, ETSI Standard |
2) Material | SPCC high-quality cold rolled steel |
3) Thickness | Mounting profile 2.0mm Others 1.2mm |
4) Surface Finish | Degreasing, Pickling, Phosphating, Powder coating |
5) Protection Degree | IP20 |
6) Loading Capacity | 800kgs(=1763lbs) |
7) Color | Optional: Black(RAL9004) White(RAL7035) Grey(RAL7032) |
Features | |
2 Sets of adjustable mounting rails(Zinc Plated) Cage nut style mounting rails Removable/lockable side panels Top and Bottom removable cable slots Glass front door/Vented Rear door
Width - 23.62 Inches (600mm), 31.50 Inches (800mm) Depth - 223.62 Inches (600mm), 31.50 Inches (800mm),39.37 Inches (1000mm) Rail Width - 19 inch EIA Compliant
Advantage 1.Secure,firm and reliable 2. Easy to maintain equipment 3. Two Packing Ways: 1).Assembly packing to save labour cost, ready to resell or use 2).Disassembly packing to save space and transport cost, easy to assemble 4.Certification: ISO 9001:2000 5. OEM/ODM service available
Fan assembly kit PDU Racks Screws,Cage nuts Plastic/Metal Cable management Shelves | |

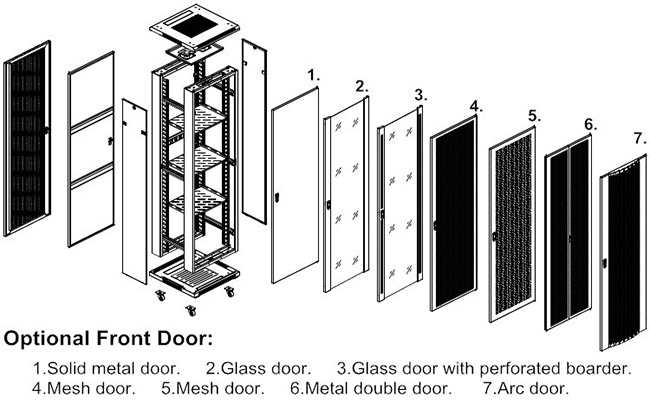

Cabinet Structure

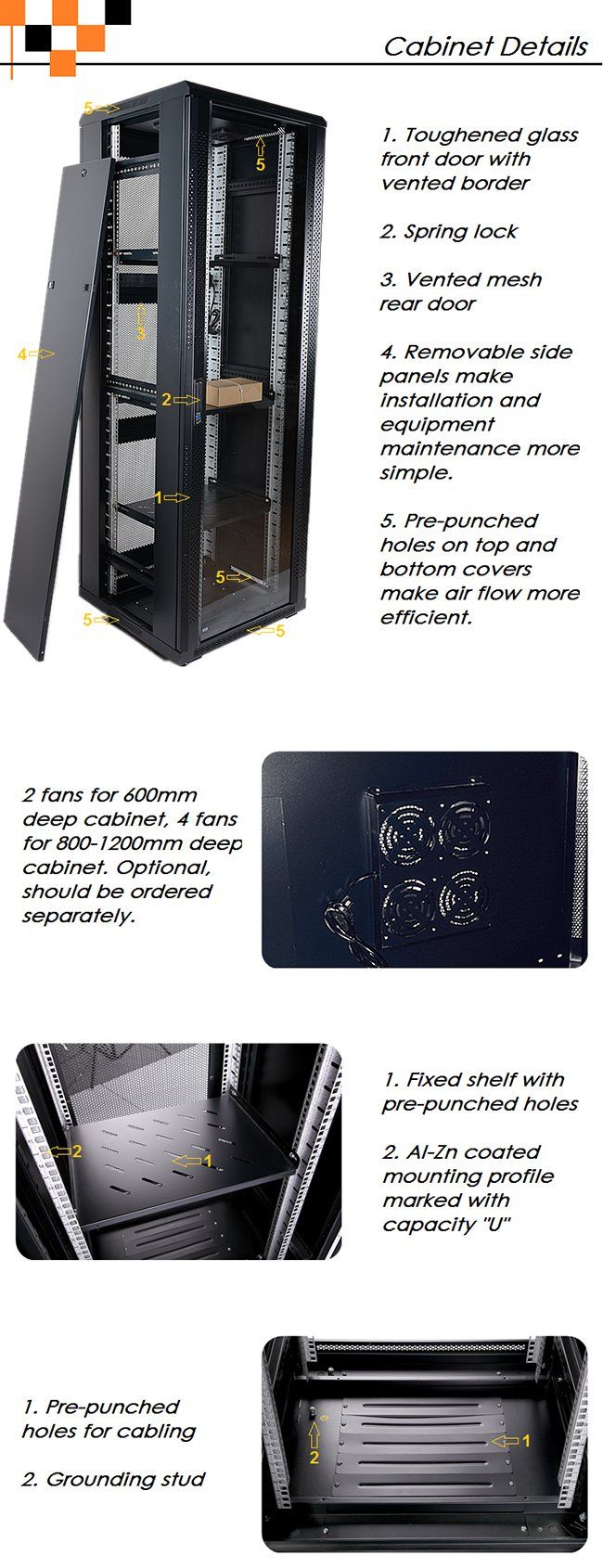

Cabinet Details

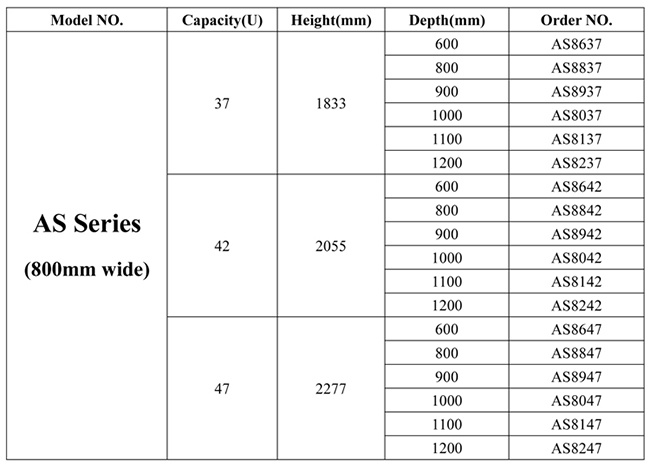

Specification
Who Are We?
1. A manufacturer of server rack and network cabinet with 25 years experience
2. Around 100 skilled engineers and more than 400 workers
3. 35000 square meters workshop
4. Customizing services, OEM services, etc.
Why Us?
Applications of Our Cabinets
Rack cabinets for Information Technology and telecommunication appliances use:
• Small, Medium and Large Servers
• DVR, Security Equipment and Routers
• Patch Panels and Switches
• Telephone Systems and PABX
• Network and Communications Equipment
• UPS Equipment
• Other Rack Mount Equipment
Beijing Finen Electronic Equipment Co., Ltd. Is located in industrial park of Pinggu district, Beijing. We are superior in geographic location and convenient transportation. Finen is a company with the whole line of designing, producing, selling and trading a standard series of products while continually making strides in new product development. Our tenet is "quality first, credit standing paramountcy". Welcome the clients at home and abroad to negotiate and cooperate with us.
We have excellent environment, about more than 3, 000 square meter standard production workshops and about 400 employees. Senior technical staff members are over 65 percent. The laser cutter is imported From German TRUMPF Company, AMADA CNC Press Brake, CNC punching machine and so on. We have automatic powder spraying equipment. All of processes are automation finished in airtight spray powder line.
Our product are widely adopted to the database of computer net, communication net, spaceflight and aviation, computer field, colligate thread and output electric of equipment, broadcast and TV, received series, automatism control, manpower control, monitor series, etc. Finen establishes a home & overseas sales system and earns prestige from consumers.
Our product: Network cabinet, sever rack, control console, TV screen wall, APC (structure) cabinet, (structure) cabinet, (structure) cabinet, distribution box, security equipment and so on.
