Certificate: |
Ce, SGS, As4084, ISO |
Material: |
Steel |
Structure: |
Rack |
Mobility: |
Mobile |
Height: |
5-15m |
Closed: |
Closed |
Development: |
New Type |
Serviceability: |
Common Use |
Weight: |
1500kg |
Product Description
The high density pallet storage solution

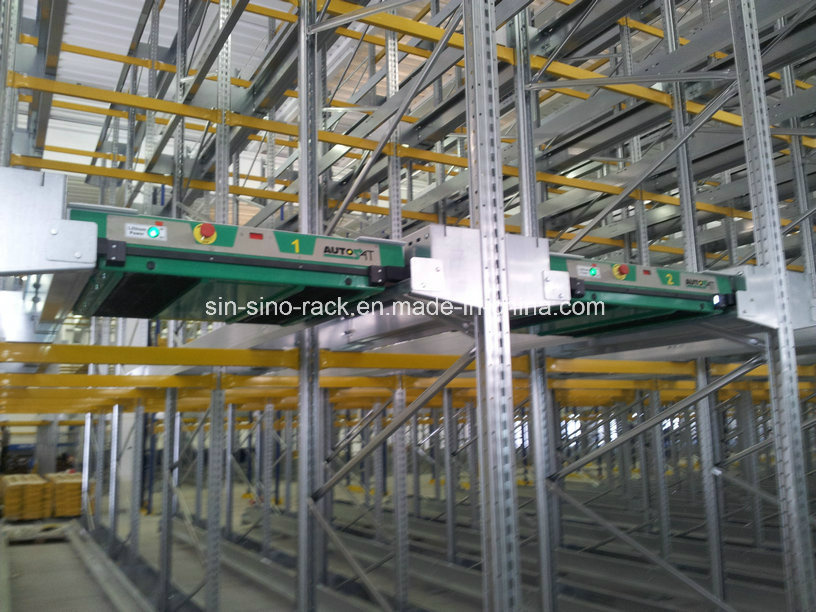

AUTOSAT is an automatic shuttle able to transform into an automatic warehouse all the drive-in racking systems, assuring the maximum use of the warhousing, making the facility more productive and efficient. AUTOSAT, powered by an innovative Lithium lon battery easy to recharge and managed by placed in the appropriate channel by means of a standard fork lift.
Applications:
Autosat benefits:
-The operator's work is front warehouse. -No stress for the operator. -No damage to the goods. -No damage to the drive-in racking -Space optimization -Warehouse efficient organization. -Quick and silence movements. -Quickness working. -No modification to the fork lift. -Able to be used in the existing drive-in system. -Easy to use. -Custom set up. | -Minimum manteinance. -State of the art safety systems. -Lithium lon innovative technology. -Battery pack easy to change. -Innovative placement. -Effective auto stop system with load on board. -Machine operation data nonce on the display. -Autoservice: the skilled, easy, effective AUTOSAT maintenance manual buggy. -Suitable mode for frozen area up to -30.C. -Service all over the world. |

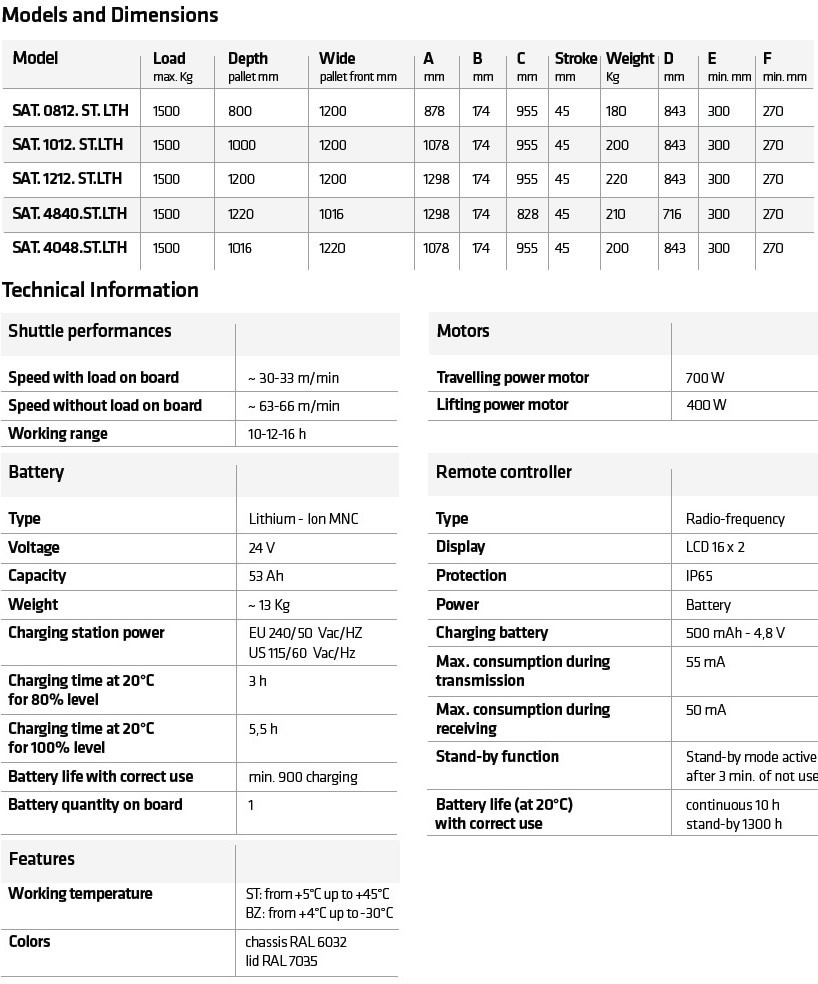

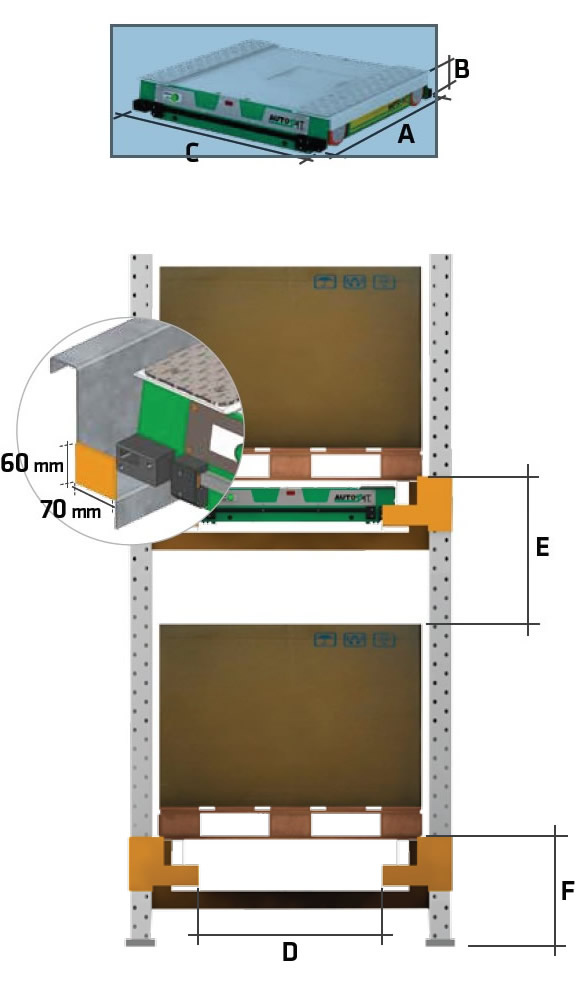

Models and Dimensions Model | Load Max.Kg | Depth Pallet mm | Wide Pallet front mm | A mm | B mm | C mm | Stroke mm | Weight kg | D mm | E Min.mm | F Min.mm |
SAT.0812.ST.LTH | 1500 | 800 | 1200 | 878 | 174 | 955 | 45 | 180 | 843 | 300 | 270 |
SAT.1012.ST.LTH | 1500 | 1000 | 1200 | 1078 | 174 | 955 | 45 | 200 | 843 | 300 | 270 |
SAT.1212.ST.LTH | 1500 | 1200 | 1200 | 1298 | 174 | 955 | 45 | 220 | 843 | 300 | 270 |
SAT.4840.ST.LTH | 1500 | 1220 | 1016 | 1298 | 174 | 828 | 45 | 210 | 716 | 300 | 270 |
SAT.4048.ST.LTH | 1500 | 1016 | 1220 | 1078 | 174 | 955 | 45 | 200 | 843 | 300 | 270 |
Technical Information Shuttle performances | Motors |
Speed with load on board | ~20-33m/min | Travelling power motor | 700W |
Speed without load on board | ~63-66m/min | Lifting power motor | 400W |
Working range | 10-12-16h | | |
Battery | Remote |
Type | Lithium-lon MNC | Type | Radio-frequency |
Voltage | 24V | Display | LCD 16*2 |
Capacity | 53Ah | Protection | IP65 |
Weight | ~13kg | Power | Battery |
Charging station power | EU 240/50Vac/HZ US 115/60 Vac/HZ | Charging battery | 500mAH-4.8V |
Charaing time at 20 for 80% level | 3H | Max consumption during transmission | |
Charaing time at 20 for 100% level | 5,5H | Max consumption during receiving | |
Battery life with correct use | Min.900 charging | Stand-by function | Stand-by mode active after 3min.of not use |
Batteryquantity on board | 1 | Battery life(at 20OC) With correct use | Continuous 10h Stand-by 1300h |
| | | | |
Features:Working temperature | ST:from+50C up to +450C BZ: from+40C up to -300C |
Colors | Chassis RAL 6032 lid RAL 7035 |
Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.
Specification:Specifications of Beam |
Type | | Item | Height(mm) | Width(mm) | Thickness(mm) |
P style Pipe(Step Beam) | | 1 | 50 | 30 | 1.5 |
2 | 60 | 40 | 1.5 |
3 | 80 | 50 | 1.5 |
4 | 110 | 70 | 1.5 |
5 | 140 | 70 | 1.5 |
6 | 160 | 70 | 1.5 |
Box Beam | | 7 | 80 | 50 | 1.5 |
8 | 100 | 50 | 1.5 |
9 | 110 | 50 | 1.5 |
10 | 120 | 50 | 1.5 |
11 | 140 | 50 | 1.8 |
12 | 160 | 50 | 2.0 |
Specifications of Upright |
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2.0 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2.0 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2.0 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3.0 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3.0 | 21000 |
