Automatic Door Sliding Door Operator Automatic Glass Door Auto Door
| Price: | US $ 479/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal |
| Prod Model: | ES200 Easy ES200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: | Dunkermotoren Germany |
| Power Supply: | 220V or 110V |
| Length: | 2000mm to 6000mm |
| Model: | Es200 |
| Warranty: | 36monthes |
| Function: | Works with Original Dorma Parts |
| 4200mm Standard System Weight: | Around 45kg |
| Material: | Aluminum Alloy |
| Type: | Sliding |
| Open Style: | Sliding |
| Color: | Silver |
| Certification: | CE |
| Position: | Commercial |
| Surface Finishing: | Finished |
Product Description

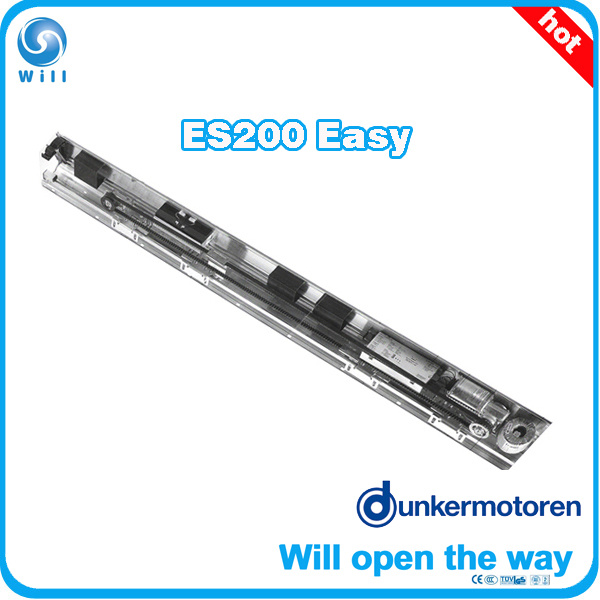

Automatic Door Operator Sliding Door Operator with Brush Motor automatic door with Dunker Motor ES200 Easy
----------------------------------------------------------------------------------------------------------------------
Feature
1..Function 95% similar as Dorma ES200 Easy and works with original dorma ES200 Easy
2.Brush Motor or Dunker Motor 99.5W ,powerful enough to bear 2X160KG gates.
3.Easy install since the Drive system has been installed before leavine the factory
4.Germany Dunkermotor,CE approved

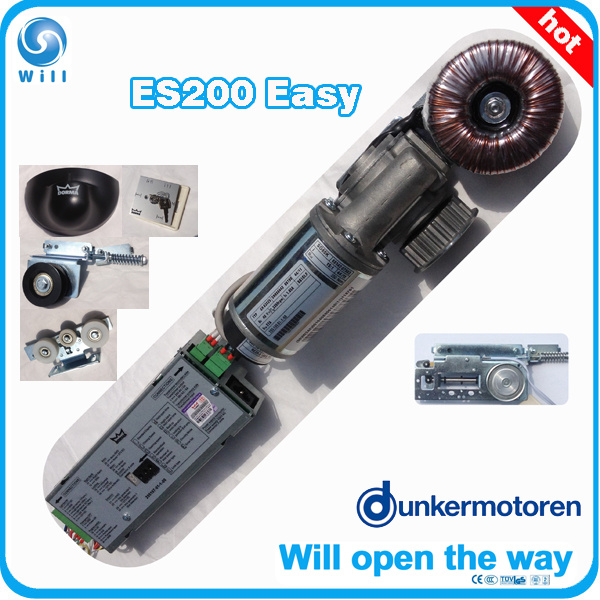

Standard Configuration
1.Minidrive Unit
2.Transformer
3.Motor
4.Decoder
5.Basic control module
6.Track
7.Carrier
8.Return Pully
9.Service cover holder
10.End stop
11.Door bracket
12.Belt connection
13.Belt tensioning device
9.Service cover holder
10.End stop
11.Door bracket
12.Belt connection
13.Belt tensioning device
Opetional Parts
Motion Sensor
Lock latch
Battery
Beam safety photocell
Specification
Weight of gate Single/Bi-part1X200KG/2X120KG
Width of gate Single/Bi-part900-6100MM
Master Controller32 digital microprocessor
Brush motor/Dunker motor99.5W 60VDC 2A IP50
Opening speed300-700mm/s
Closeing speed300-650mm/s
Max open strength150N
Hold Open Time/Lock0-10S/30s
Height of the rail8CM
Deepth of the rail16CM
Power SupplyAC110V-250V 50/60HZ
Temp15 C to +70 C
Power Consumptionaround 100W
Protection degree of ElectronicIP23
Function Programs
Off
Automatic
Permanent Open
Partial
Exit only
--------------------------------------------------------------------------------------------------------------------------------------------
Additional
Low noise desigh (<40db)
One million times of tests passed
Warranty: 18months
One million times of tests passed
Warranty: 18months
Emergency Functions
Emergency opening in case of power failure / Fail-safe
Obstacle detection with automatic return mechanism
Self monitoring light barriers
Slow speed search for obstruction

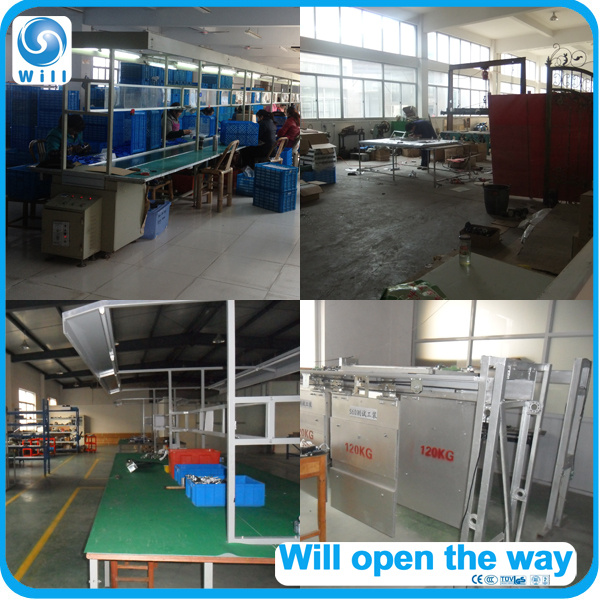

Workshop

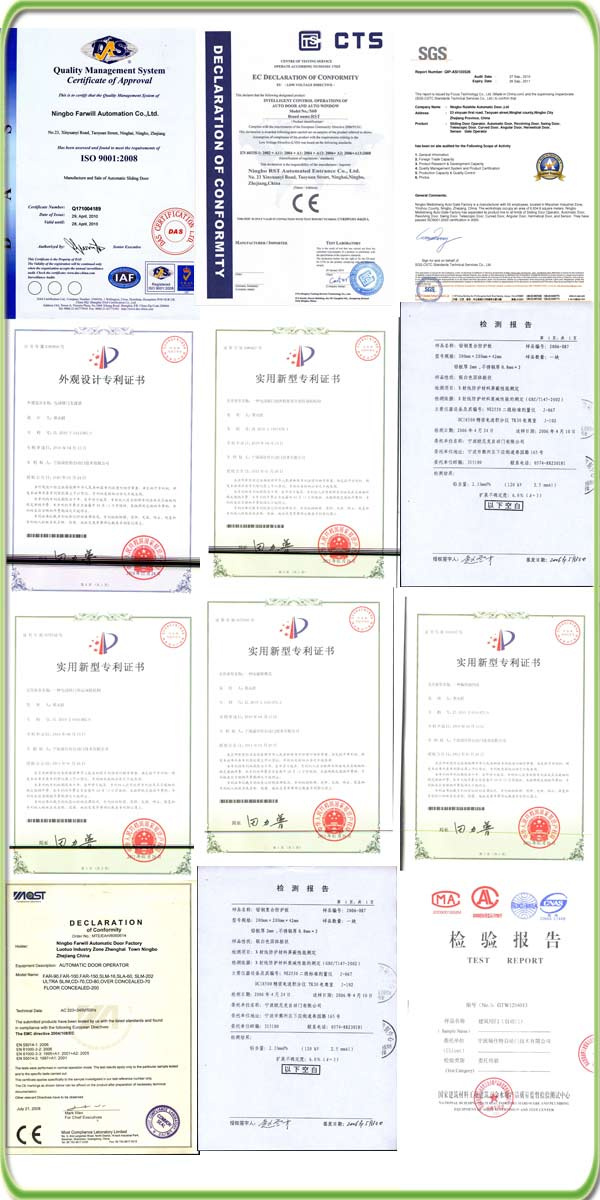

Farwill automatic door factory established in July, 2006 which grows very fast. Farwill has attained ISO9001, ISO14001, SGS and CE certifications. During the past four years We have 2 production bases covering 1, 000
Square meters and more than 100 employees. Our automatic door annual production capacity is 3000 sets of automatic swing doorsAnd 300000 sets of automatic sliding doors, as well as revolving doors.
Farwill integrates Swiss automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.
Today Farwill products are widely used in 89 countries & regions around the world, and more customers are joining us. For some we provide blank products, and for some more we deliver the goods with Farwill as our common brand.
We will open the way!
Square meters and more than 100 employees. Our automatic door annual production capacity is 3000 sets of automatic swing doorsAnd 300000 sets of automatic sliding doors, as well as revolving doors.
Farwill integrates Swiss automatic technology and Chinese manufacturing advantages, which enables our products to have reliable quality and competitive prices.
Today Farwill products are widely used in 89 countries & regions around the world, and more customers are joining us. For some we provide blank products, and for some more we deliver the goods with Farwill as our common brand.
We will open the way!
