Automatic Filling and Sealing Machine (Outer-heating type) Cfy- 60A
| Price: | US $ 35000-55000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union,Paypal,Money Gram |
| Prod Model: | CFY- 60A |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: | Filling and Sealing Machine (Outer-Heating) |
| Packing Mateiral: | Aluminum Tube or Other Metal Tube |
| Inside Heating Way: | Hot Air Heating for Inside Sealing |
| Filling Material: | Paste , Cream,Ointment |
| Keywords: | Filling and Sealing Machine |
| Maximum Tube Diameter: | 40mm |
| The Maximum Volume: | 1-150ml |
| Produce Speed: | 30-60tube/Min |
| Filling Precision: | <+/-1% |
| Air Pressure: | 0.4-0.6 MPa |
| Type: | Volumetric Filling Machine |
| Automatic Grade: | Automatic |
| Material Type: | Paste |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Single-Room Feeding |
| Dosing Device: | Capacity Cup |
| Filling Principle: | Pressure |
| Packaging Container Lifting Structure: | Pneumatic Lifting |
| Structure: | Rotary |
| Packaging Type: | Tube |
| Packaging Material: | Soft-Tube |
Product Description

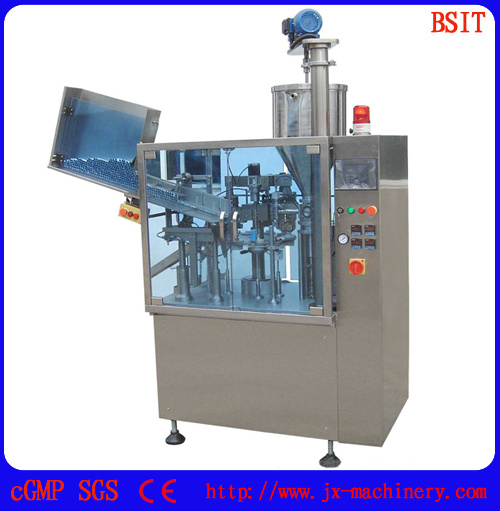

Automatic Filling and Sealing Machine (Outer-heating type)Cfy- 60A
Outer-heating type
Parameters:
Adapt to the maximum tube diameter: 40mm
The maximum volume:1- 150ml
Produce speed: 30-60tube/min
Filling precision:≤+/-1%
The power of machine:1.1kw
Air pressure: 0.4-0.6 Mpa
Features:
1,Tubes can load into station automatically and can be automatically pressed into the tube holder.
2,The automatic color mark adjusting systems by stepping driving tube holder is adopted for oval tubes or other special-shaped tubes.
3,Adopt mechanical transmission mode filling system ensuring the stability of loading capacity.
4,After the sealing, the wind cooling system is adopted to prevent the heat from being conducted to the ointment.
5,PLC automatic control system.
6,Highly clear stainless steel frame.
7,The connection of emulsifier,cartoning machine and filling machine can be easily achieved.
8,It is easy to operate between different sizes of tubes.
9,Automatic completion of filling ,sealing and batch No. printing in one machine.
10,Provided such functions as automatic supply of a tube to a worktable of machine,tube color mark automatic adjustment in a holder and automatic filling and sealing.
11,Speed shall be adjustable by inverter.
12,The production capacity can be realized and control automatically.
13,The code mechanical hand print the code automatically in the request position.
14,Human-machine interface with direct display and control.
15,Tube feeding and locating device,which is controlled by the original FESTO vacuum generator.
16,Automatic detection of tube direction inversion.,Omron inversion detection phototube can accurately detect the inverted tube.(optional)
17,Automatic cleaning the inner tubes and the dust collecting system.(optional)
18,Provided with malfunction alarm,automatic stopping device when mechanical overload.
19,The combined material feeding forms of blow cutting and cutting can guarantee the filling of high viscosity.
20,Column style material temperature automatic control blending system.(optional).
21,Ultrasonic hopper level sensor. (optional)
USA BANNER ultrasonic level probe combined with Siemens module can be used to accurately control material level and give direct display on the touch screen
22,No tube no fill.
23,Material pump. (optional)
24,Safe-door switching device.(optional)
When door opened,machine stops
25,Emergency stop button
PLC control system:
| Component | Brand | Technical parameters |
| Touch screen | Taiwan | 5.7'color screen |
| PLC | Siemens | 6ES7216 |
| Inverter | Siemens | 1.5KW |
| Encoder | Omron | E6B2 600P/R |
Pneumatic components
| Component | Brand | Technical parameters |
| Pneumatic components | Festo |
