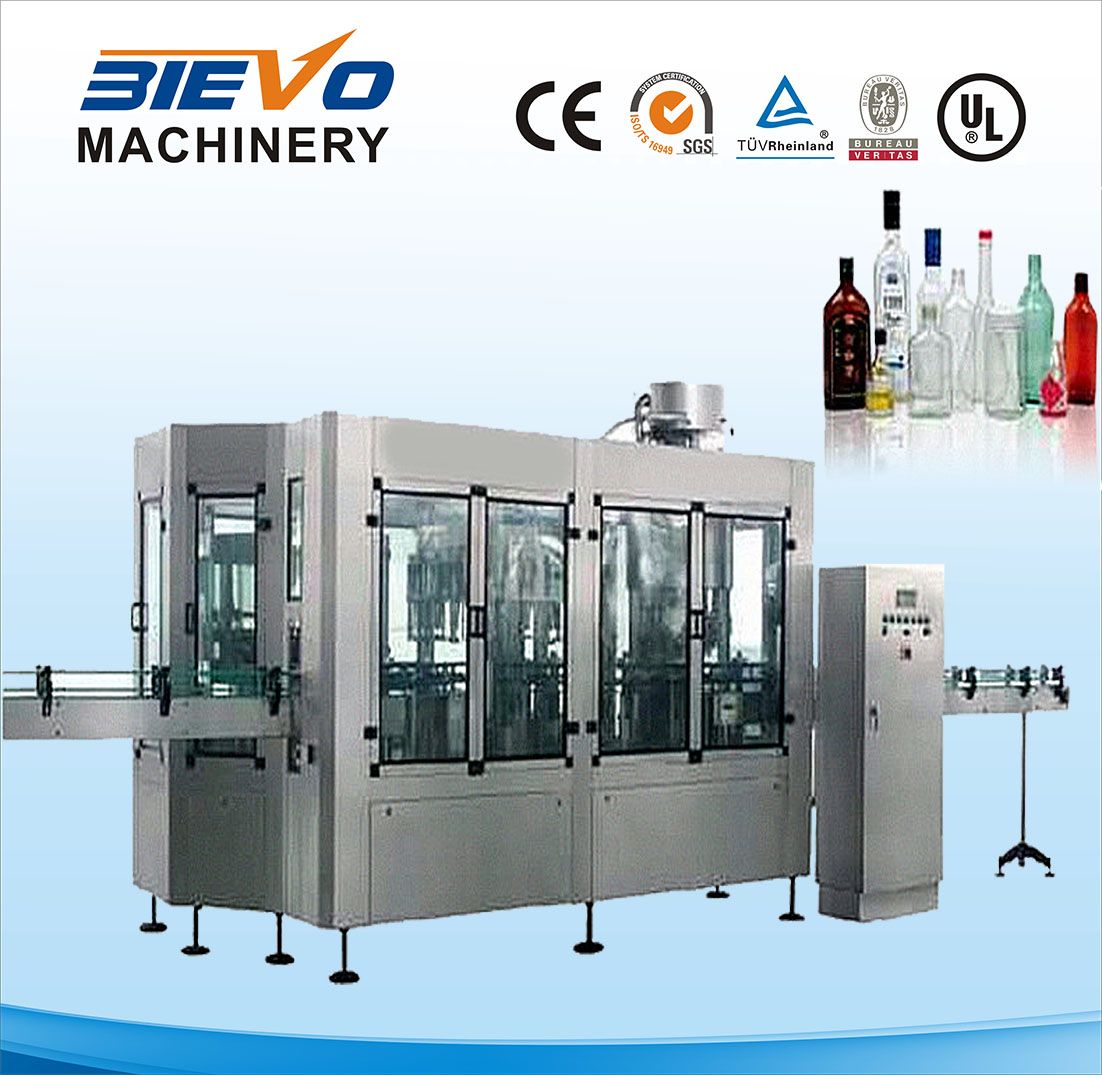

Automatic Glass Bottle Liquor Filling Machine
| Price: | US $ 80000-85000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | CGWF 18-18-6 |
|---|---|
| Power Motor(Kw): | 4.5 |
| Capacity(B/H) 500ml: | 6000 |
| Bottle Volume: | 200ml-2000ml Accept Customized |
| Suitable Bottle: | Diameter:50-120mm Height:160-320mm |
| Control System: | PLC with Touch Screen |
| Machine Name: | Wine Filling Machine |
| Type: | Weighing-type Filling Machine |
| Automatic Grade: | Fully Automatic |
| Material Type: | Liquid |
| Filling Valve Head: | Multi-Head |
| Feed Cylinder Structure: | Single-Room Feeding |
| Dosing Device: | Capacity Cup |
| Filling Principle: | Atmospheric Pressure |
| Packaging Container Lifting Structure: | Chute Lifting |
| Structure: | Rotary |
| Packaging Material: | Plastic |
| Packaging Type: | Glass Bottle |
Product Description
Introduction:
This series of wine filling machine is mainly used for alcohol and all kinds of spirits filling and sealing in glass bottles, also according to customers' demands, to fill in PET bottles, which is with washing, filling and capping monoblock. Such series of machine can fill with different capacities as requirements. Together with other assistant equipments used in the line for alcohol production line.
Features:
1.Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.
1.Filling valve adopts high precision mechanical filling valve, with the character of no bottle no vacuum pumping.
2.Open gear combinated gear box transmission, with no-off device. Frequency conversion velocity modulation device extends the speed modulating scope.
3.This machine has self oil lubrication device so that the lubrication points could be lubricated regularly in time. The machine is of high efficiency, low noise and long life.
4.Centering guide is of double guide bar type, with the function of pre-covering.
5.Wine jar and capping head are driven by manual, also can be driven by electricity to fit different sizes of bottles.
6.The material height in the tank is controlled by electric probe to assure the precise liquid level.

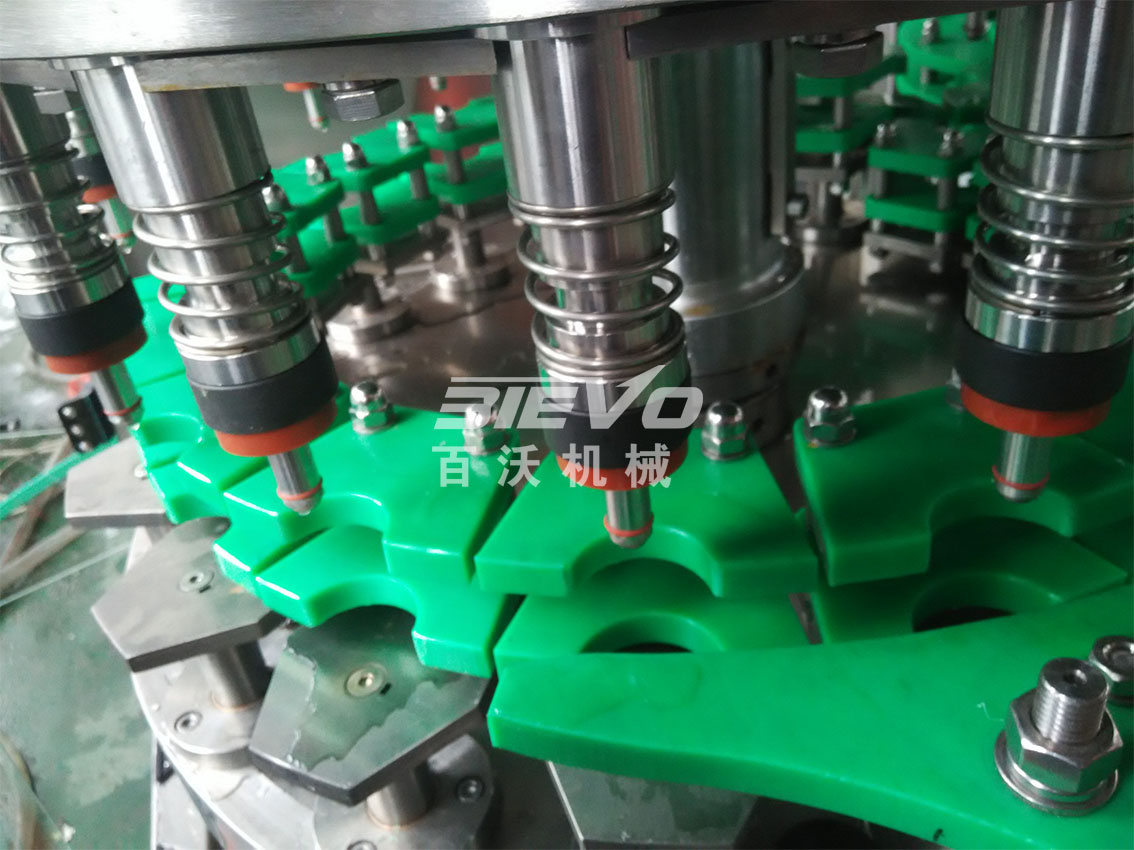

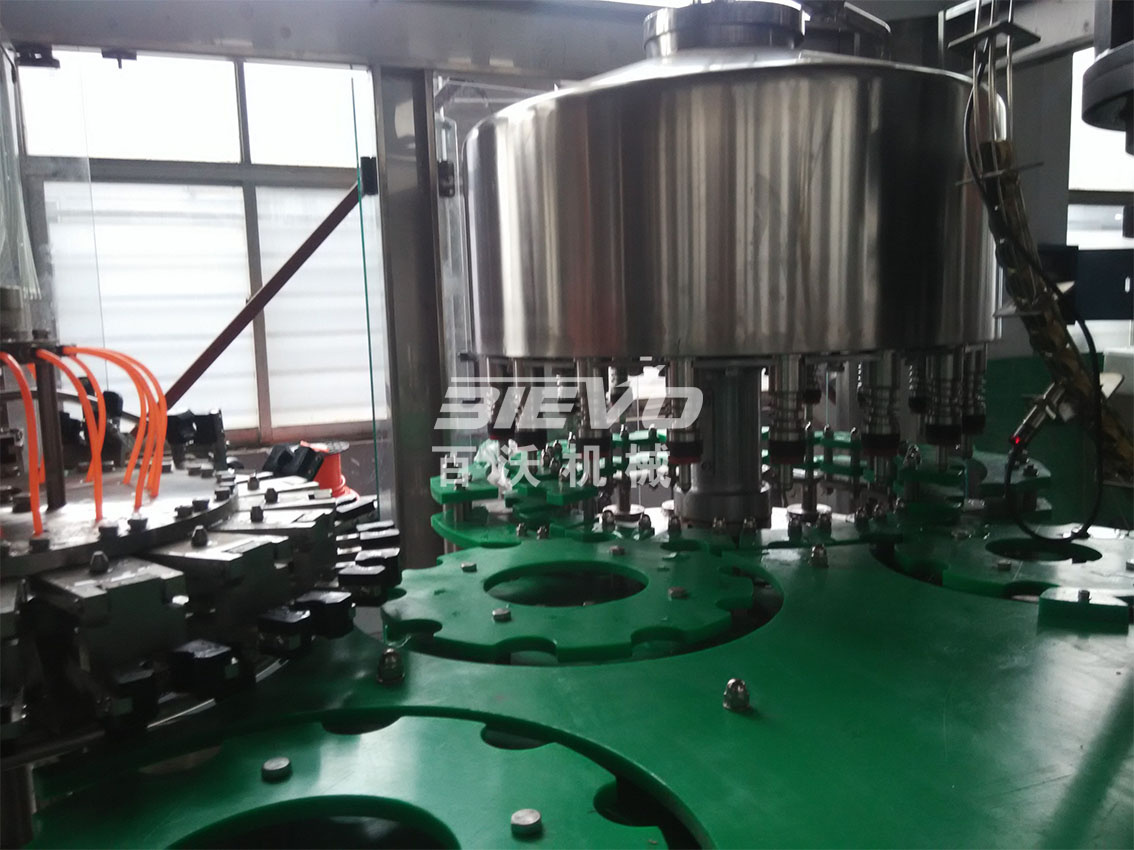

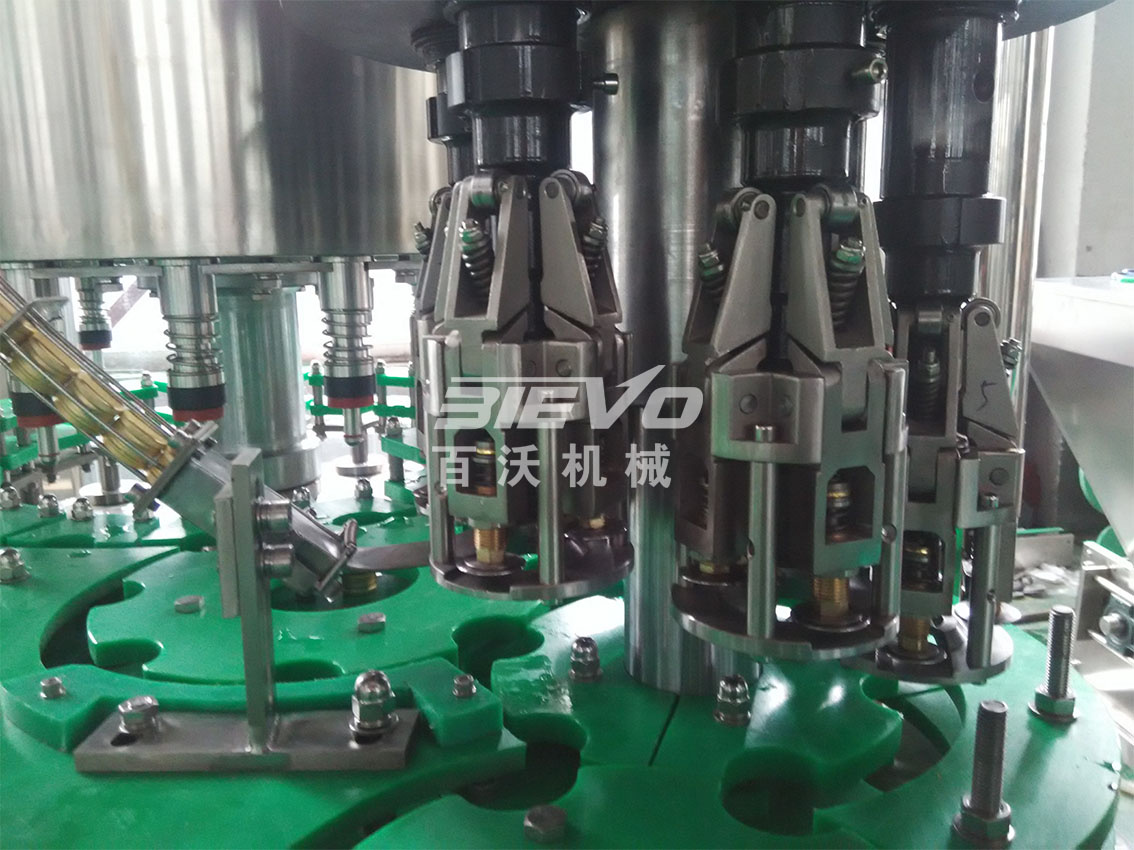

Detail Pictures Show:
Technical parameter:
| Item | CGWF 8-6-1 | CGWF 14-12-4 | CGWF 16-16-5 | CGWF 18-18-6 | CGWF 24-24-8 | CGWF32-32-10 |
| Capacity | 1000bph(500ml) | 2000bph(500ml) | 5000bph(500ml) | 6000bph(500ml) | 80000bph(500ml) | 12000bph(500ml) |
| Rising heads | 8 | 14 | 16 | 18 | 24 | 32 |
| Filling heads | 6 | 12 | 16 | 18 | 24 | 2 |
| Capping heads | 1 | 4 | 5 | 6 | 8 | 10 |
| Bottle Diameter | Commonly 50-110mm (can adjustable) | |||||
| Bottle Height | Commonly 150-340mm(can adjustable) | |||||
| Bottle | Glass or Plastic bottle | |||||
| Rising pressure | 0.2-0.25Mpa | |||||
| Overall size | 2030*1700*2350 | 2080*1700*2350 | 2130*1700*2350 | 2450*1800*2350 | 2780*2200*2350 | 3600*2650*2350 |
| Weight | 3.1t | 3.2t | 3.3t | 3.5t | 4.5t | 5.5t |

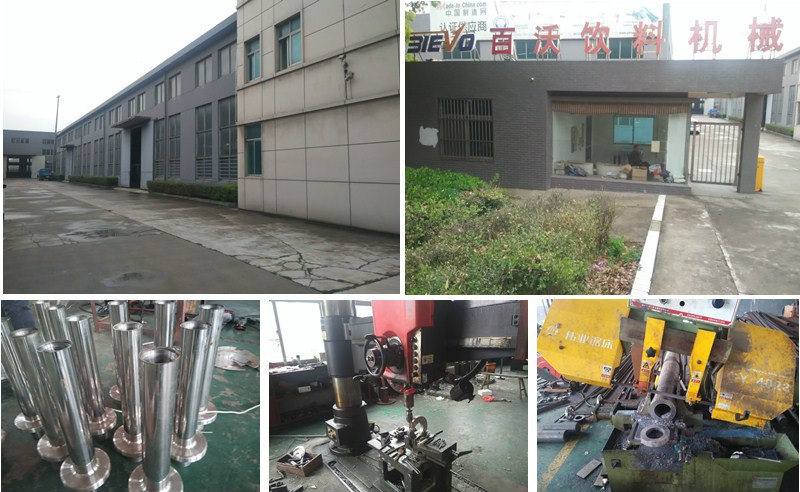

Our Working Office:
After sale service:
1.installation, debug
After equipments reached the workshop of customer, place the equipments according to plane layout we offered. We will arrange seasoned technician for equipments installation, debug and test production at the same time make the equipments reach the rated producing capacity of the line. Time for installation and debug is 15-25 days.
2.training
Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3.Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
