Automatic High End Metal Radio Shuttle Racking with Pallet Runner
| Price: | US $ 0.8-1.3/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | BEILMETAL - RSR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | According to Your Request |
| Colour: | Orange, Blue, Grey, or Ral System |
| Load Capacity Per Layer: | 1000kg |
| Shelf Height: | 5m~15m |
| Goods Characteristics: | Product Warehouse |
| Function: | Storage Type Stereoscopic Warehouse |
| Operation: | Automatic Addressing Artificial Loading |
| Surface Treatment: | Galvanizing, Powder Coating |
| Material: | Steel and Reinforced Concrete |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Semi-closed |
| Development: | New Type |
| Structure: | Automatic Multi-Levels |
| Weight: | 500-4500kg |
| Serviceability: | Especially Suit for Cold Warehouse |
Product Description
Automatic High End Metal Radio Shuttle Racking with Pallet RunnerRadio shuttle racking is a new kind of high-end storage management system, equipped with high density storage including racking and electrical-powered pallet runners with forklifts, make a new concept for loading pallets and space storage. This kind of racking system utilizes the warehouse space more adequately and flexibility comparing with other traditional storage systems. The main parts of Radio Shuttle Carts are bought from the world famous brand and the program module is sourced from Top Fortune 500 in the world. We will design the program according to actual request of you.
| Product Name | Ebil Metal Radio Shuttle Racking |
| 1. Style: | Heavy Duty Pallet Rack |
| 2. Certification | ISO9001:2008, CE, SGS |
| 3. Main components: | Pallet Racking(upright, spacer, beam, guide rail...), Pallet Runner, Remote Controller, Forklift |
| 4. Customized sizes accepted: | Yes |
| 5. Loading weight: | 1500KG per Layer |
| 6. Standard color: | Blue, orange, green, red, grey |
| 7. special color available: | Yes |
| 8. MQQ: | 1 units |
| 9. Delivery time : | 7 -15days for 1*40' containers |
| 10. Standard exporting package: | Metal strip, film, paper board and master carton. |
Working Principle:
Loading: With the remote radio controller's order, the pallet runer transports the pallet into the tunnel of the racking system from the home position, then returns for the next pallet.
Picking: According to the remote radio controller's order, the pallet runner carries the pallets out of tunnel to home position for forklift to pick.
Transferring: The pallet runner can be transferred to the other tunnel by a forklift. And the quantity of the pallet runners is decided vy depth of tunnels, quantity of pallets through put, load and pick frequency, etc.

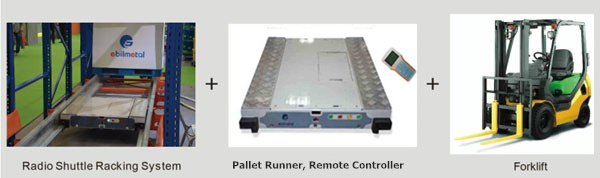

Radio shuttle rack system = Rack + Pallet Runner + Forklift + Operator
Please advise us the following information for quick quotation:
1. Drawing of the warehouse dimension, showing the door open position...
2. Dimension and weight of the cargoes or pallet size, capacity per pallet
3. Height of the rack or how many tiers needed
4. If customer has the racking drawing, please advise the dimension, tiers and capacity of the rack
5. Colors
If you don't have the drawing, we could provide you the CAD design for your warehouse according to your request.

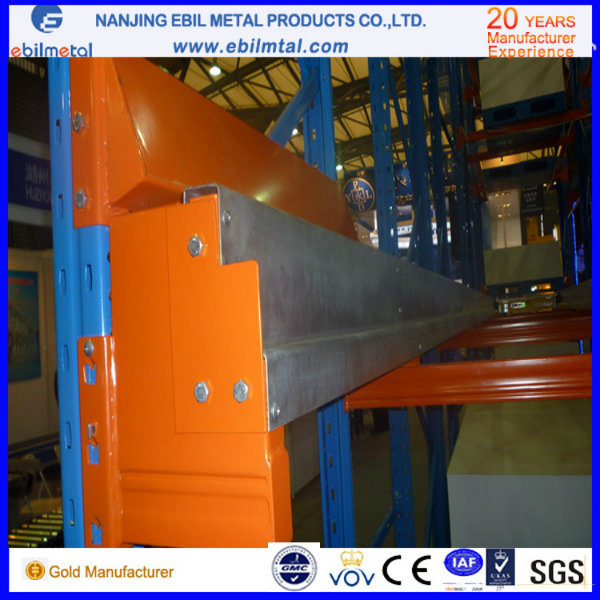

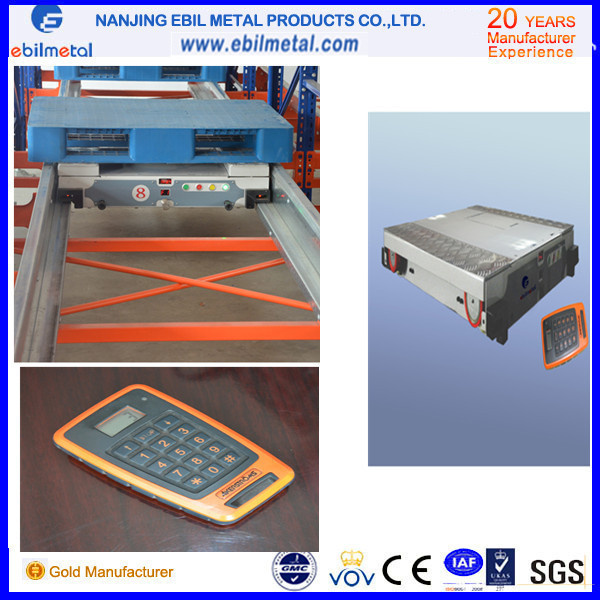

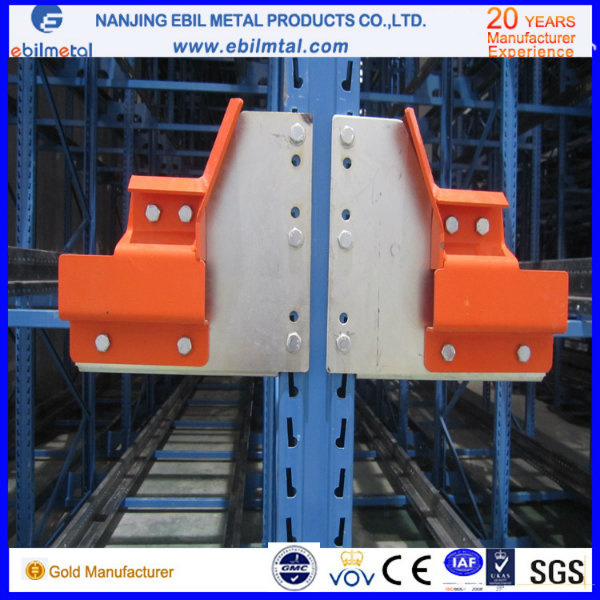

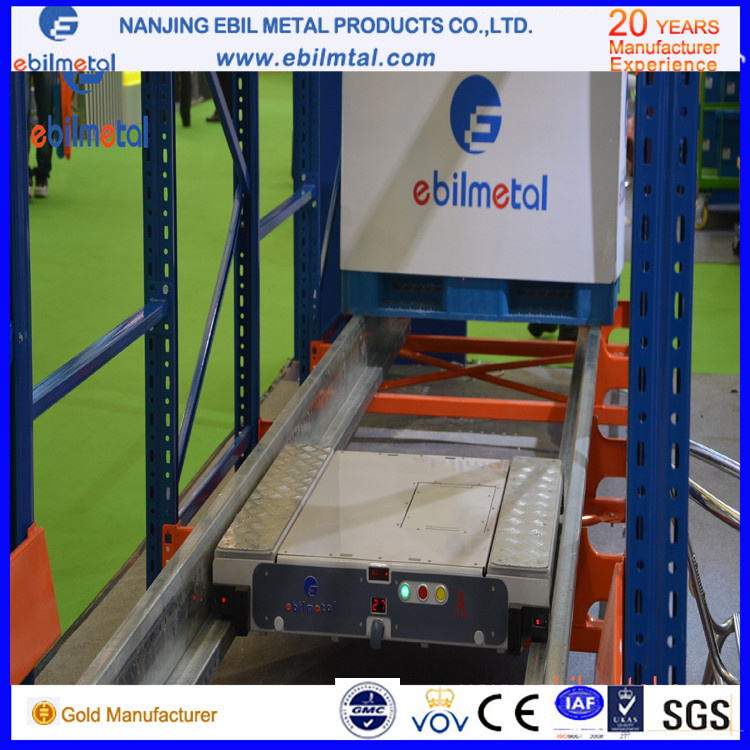

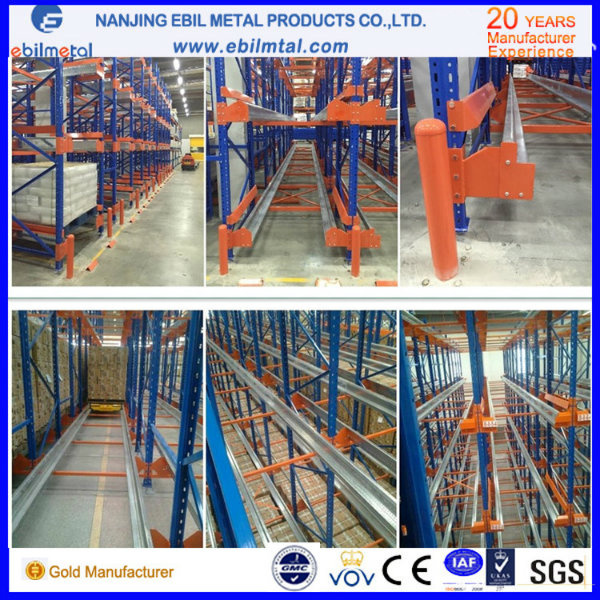

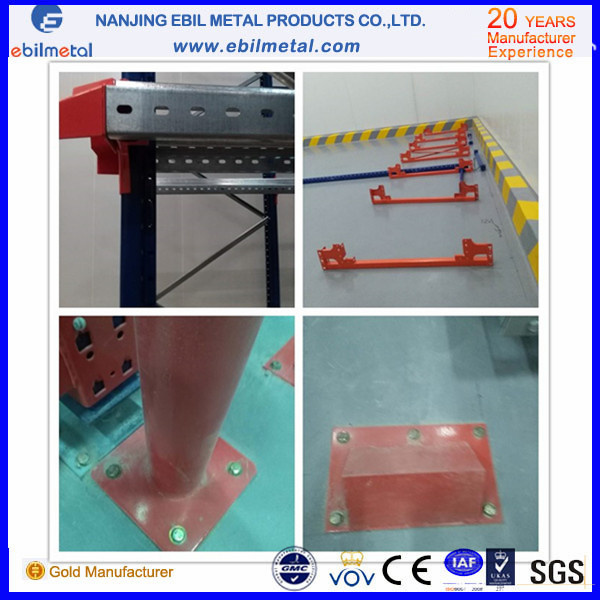

Photos of High Storage Capacity Pallet Shuttle System:
Nanjing Ebil Metal Products Co., Ltd
---- Over 20 years' experiences in designing and manufacturing storage racking system. More than 10 years' of experience in export.
---- Sell to more than 20 provinces in domestic and more than 120 countries overseas.
---- Ebil implements ISO9001 system into all operations rigidly, and had passed CE, SGS and TUV Certificates.
---- Professional installation and after sale service teams.
WE OFFER YOU:
1. Prompt service and response in 24 hous;
2. Lead Time: 7-20 days for 3*40'fcl general orders;
3. Excellent quality for every part, every step;
4. Best storage solution for your warehouse;
5. Perfect service & technical support in every business process;
6. Direct sale freom manufacture and customized dimensions;
7. Small wholesale allowed.
8. All kinds of colors and sizes are available.
Standard colors are: blue, orange, light grey, milk white and pea green;
9. Monthly output: 2000mt;
10. Meet American, European and Australian Standards.
Ebil Metal(Nanjing) Products Co., Ltd, professional manufacturer of metal shelving, storage teardrop pallet rack system and Intelligent Manufacturing storage equipment. Has more than 26 years manufacturing experiences, 15years exporting experience, exported more than 120 countries, and finished more than 10000 rack projects from design, produce to install. Like Southeast Asia, Europe, and America etc., providing the timely, thoughtful, professional service to the growing customers to win and lasting trust and industry credibility from all of these customers.
