Automatic Pet Cup Tilting Thermoforming Machine
| Price: | US $ 175000-210000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | PPTF-70T |
|---|---|
| Material: | Aluminimum |
| Cavity: | Multi-Cavity |
| Cutting: | in Mould Cutting |
| Cutting Plate: | Complete |
| Control: | PLC, All Servo Motor |
| Automatic: | Automatic Counting and Stacking |
Product Description
FEATURE:
- Rapid mould changing device
- Width of chain holder design with tension
- Heating adopt Up and down ceramic heater controlled by SSR and PID temperature
- PLC and humanized color touch screen control operation interface.
- Mould automatic memory system.
APPLICATION:
It is suitable for PP, PS, PLA, PET, PVC etc material. It mainly produce the containers such as water cups, drinking cups, milk cups, bowls etc.
Main Specification
| 1 | Max. Forming Area | 680×320mm |
| 2 | Max. Forming Depth | 130mm |
| 3 | Max. Clamping Force | 300KN |
| 4 | Dry Cycles Speed | 42 Cycles/min |
| 5 | Sheet Width Range | 550-720mm |
| 6 | Sheet Thickness | 0.35-2.0mm |
| 7 | Max. Roller Diameter | Φ1000mm |
| 8 | Air Pressure | 0.7-0.85mpa |
| 9 | Water Consumption | 50 L/min |
| 10 | Air Consumption | 3000 L/min |
| 11 | Heating Power | 130kw |
| 12 | Main Motor Power | 9.2 kw |
| 13 | Feeding Motor Power | 4.4kw |
| 14 | Plug Servo Motor Power | 7.5 kw |
| 16 | Machine Weight | 11500kg |
| 17 | Dimension | 12500×3650×3550mm |
| 18 | Power (3 Phase 3 Wire) | 3×380V+NP+PE.50HZ |

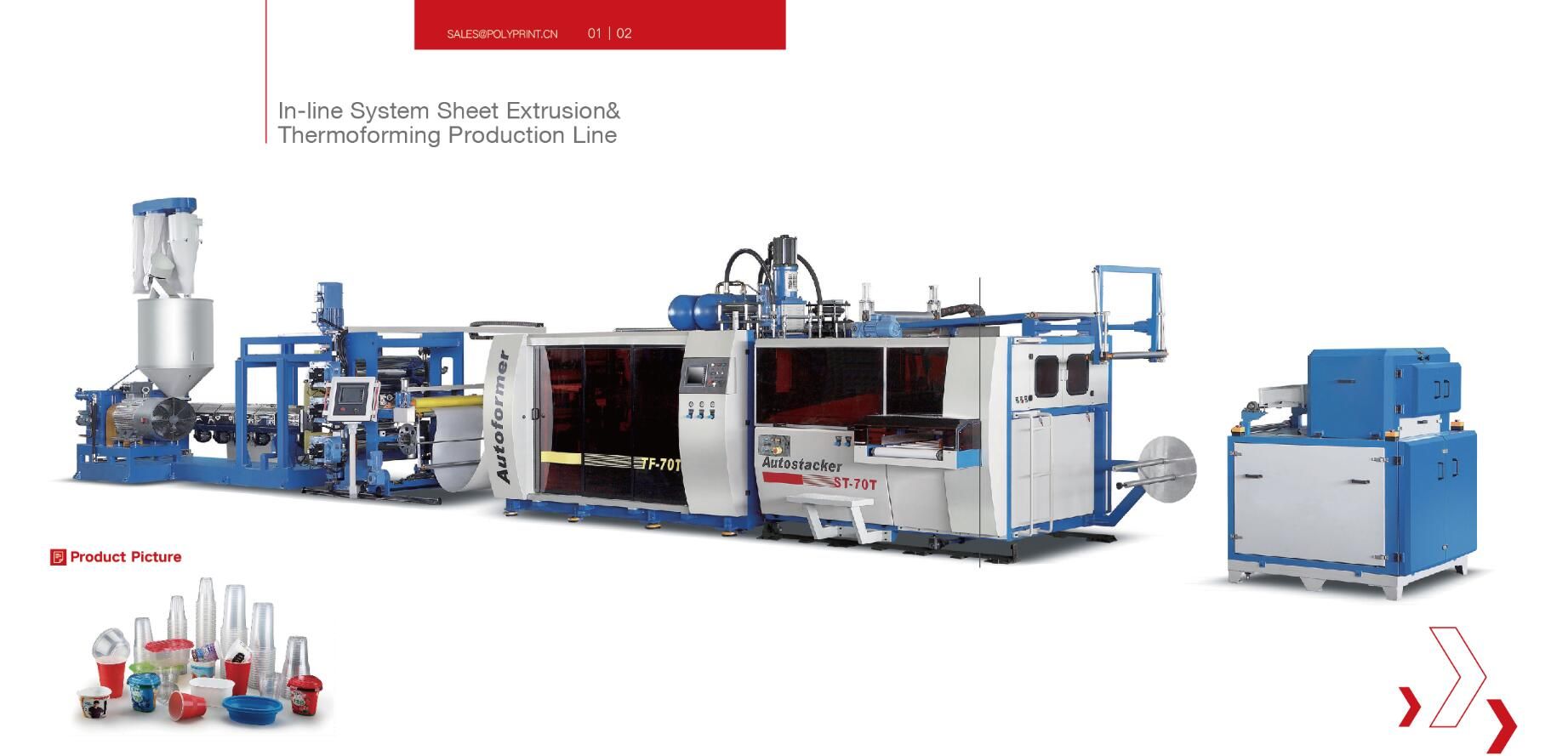

Machine can adopt In-line System as below:
