Prod Model: |
EBILMETAL-VPR |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Size: |
According to Your Request |
Colour: |
According to Your Request |
Brand: |
Ebil Metal |
Loading Capacity: |
700-4000kg |
Packing Detail: |
Experienced Export Packing |
Surface Treatmet: |
Powder Coating |
Layer: |
2-5 |
Delivery Detial: |
10-15 Ton Per 1X20FT Container |
Beams: |
Box Beam and Step Beam |
Market: |
All Around The World |
Material: |
Steel |
Structure: |
Rack |
Mobility: |
Fixed |
Height: |
5-15m |
Weight: |
150-500kg |
Closed: |
Open |
Development: |
Conventional |
Serviceability: |
Common Use |
Type: |
Storage Racking |
Product Description

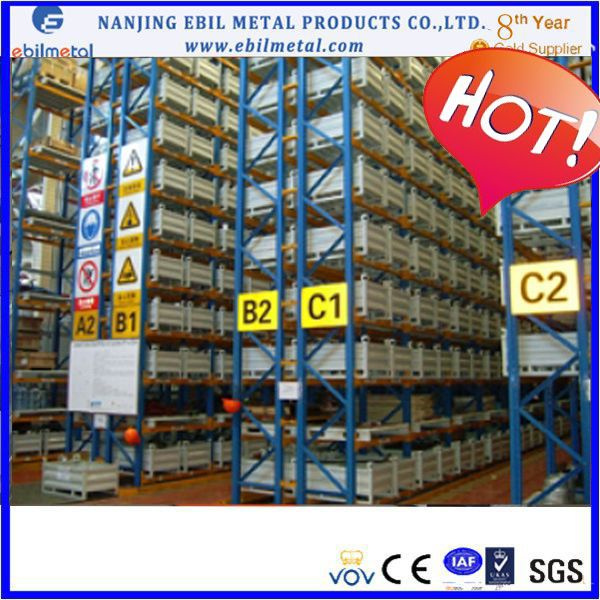

CE-Certificated Practical Vna Pallet Racking
Specifications
VNA racking has a narrower than the regular pallet racking, which make better use of storage space by 20%.
Structure:
VNA pallet racking refers to the pallet racking system for which three-direction forklifts are used. The major difference of VNA racking from regular pallet racking is that the width of the VNA racking aisle (usually 1600-2000mm) is much narrower than that of the regular pallet racking system, which makes better use of storage space by 20%. Guide rails are needed to be fixed at the two sides of the aisle to guide the forklift.
Specification:
Upright: NH1 TYPE (Upright 80), NH2A TYPE(Upright 90A), NH2B TYPE(Upright 90B), NH3 TYPE(Upright 100), NH4 TYPE(upright 120), NH5 TYPE(upright 140), NH6 TYPE(Upright 160) or customized by clients.
The non-standard ones can be customized based on clients' requirements.
Beams are divided into Box beams and Step beams.
Sectional sizes of box beams include: K80, K90, K100, K110, K120, K140, K150, K160
Sectional sizes of step beams include: PK95, PK115, PK135, PK155
Feature of VNA Pallet racking |
Meterial | High-quality steel VNA Pallet racking from Ebil Co. Ltd., the top manufacturer in China. |
Surface treatmet: | Podwer coating; Normal color(Orange or blue) or according to customer' s requirement. |
Size | Height | 2-11m (6.56-36.1ft), or according to customer' s requirements. |
Width | 1.5-3.3m (4.92-10.82ft), or according to customer' s requirements. |
Length | 0.8-1.2m (2.63-3, . 94ft), or according to customer' s requirements. |
Thickness | Upright: 1.5-2.5mm; Beam: 1.5-2.0mm. |
Spec. of upright | 60X55mm, 70X55mm, 90X70mm, 105X70mm, 120X90mm, etc. |
Spec. of beam | 80X50mm, 90X50mm, 100X50mm, 110X50mm, 120X50mm, 140X50mm, etc. |
Loading capacity (per layer) | 700-4000kg (1 543-8 818lb). Refer to below sheet 2 for more details. |
Layer | 2-5. or according to customer' s reqirement. |
Packing detial: | Experienced export packing (uprights and beams' both end with cardboard, then outside bundled tightenly with plastic belts, safe for long-distance transportation) also we can follow your requirement. |
Delivery detial: | 10-15 ton per 1x20ft container, 15-25 ton per 1x40ft container. 15-20 workdays after received the deposits. |
Ebil Metal(Nanjing) Products Co., Ltd, professional manufacturer of metal shelving, storage teardrop pallet rack system and Intelligent Manufacturing storage equipment. Has more than 26 years manufacturing experiences, 15years exporting experience, exported more than 120 countries, and finished more than 10000 rack projects from design, produce to install. Like Southeast Asia, Europe, and America etc., providing the timely, thoughtful, professional service to the growing customers to win and lasting trust and industry credibility from all of these customers.
For new and old import & export customers supply:
1. Solutions simple /regular warehouse rack/storage metal shelving, high-end warehouse / complete large-scale Intelligent Storage logistics system(6000MT/PER MONTH) warehouse planning, conveyance equipment; Various racking and storage management.; Optimize your warhouse; Economize space and cost.
2. A professional team, experienced engineers, advanced manufacturing equipment, particular production technology; Ebilmetal strictly implements ISO9001 Standard in all peration; Pass SGS and CE quality-guarantee system keep and assure customer products quality and delivery time.
3. Supply Specialized installation guidance and after services that anytime and any country if customer need
4. Reply your inquiries within 24 hours anytime and anywhere
Intelligent Manufacturing, Exclusive Customized
Create value services for the clients who approval our brand
