Ce Certified Heavy Duty Warehouse Selective Pallet Storage Rack
| Price: | US $ 0.8KG |
|---|---|
| Min Order: | 500KG |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | IH889 |
|---|---|
| Beams Loading Capacity:500kgs-4000kgs: | Upright Loading Capacity:1000-4000kgs Per Layer |
| Box Beam Sections:80-160mm: | Upright Sections:80-140mm |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | >15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500-4000kgs/Layer |
Product Description
Introduce:

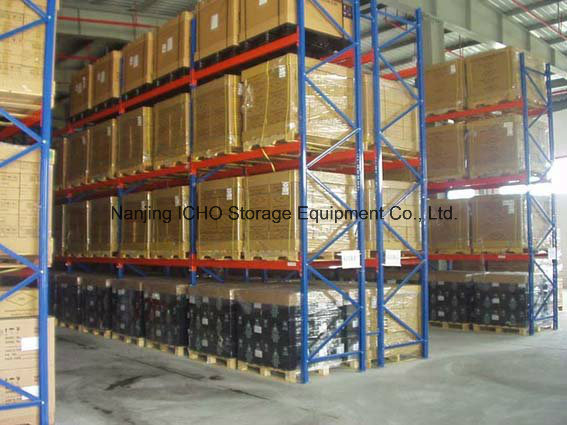

selective pallet racking is the best solution for warehouse where it is necessary to keep a wide variety of articles in pallets.
It provides direct access to all pallets for 100% accessibility and good stock rotation. Pallets can be located, accessed and move individually providing rapid handling of palletized goods. It provides easy beam adjustment and accommodates variable pallet heights. Lower level pallets can be located on the floor for picking purposes, which reduces structure costs. Alternatively additional shelving beams can be added for lower level picking.
Advantages:
1, Direct access to all articles;
2, Flexibility in the height and depth of the loads;
3, Extension is possible at any time;
4, Ideal for all types of forklifts;
5, Variable in accessories;
Pallet rack is infinitely adjustable and offers a wide range of options and components to accommodate specialized load types.
Product details:

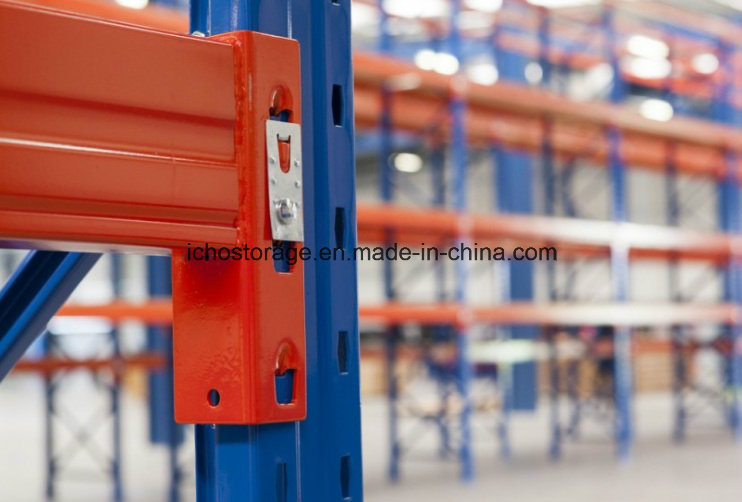

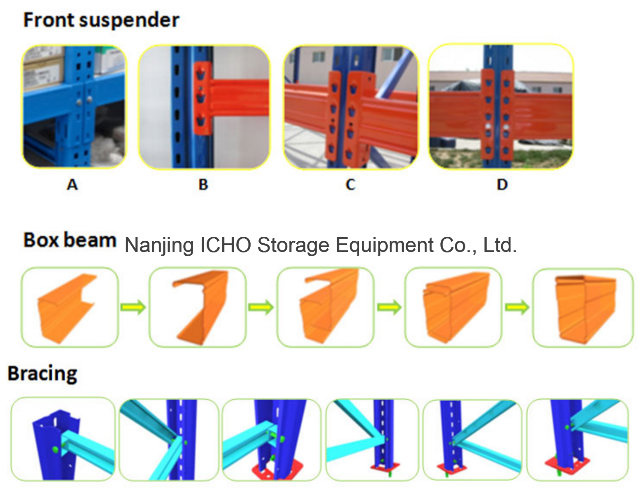

Beams consist of two "front suspenders" and beam pole which is formed by two special made C-beam embraced together. This structure makes the thickness double, which is designed according to the steel structure design theory. The beams are available in a comprehensive range to cover most loading requirements.Beam section height available from 80-160mm.
Uprights with 50mm or 75mm hole pitch for better loading capacity and sapce utilization.The uprights are made from cold-rolled steel and are very rigid.
These are then bolted from the stable frame using horizontal and diagonal bracing.Defferent kinds of base plates ensure even distribution of load to floor unassembled.
| Heavy duty pallet rack | |
| Material: | High quality rolled steel |
| Surface treatment: | Powder coating |
| Color: | Selective |
| Upright size: | 80*60,90*70,100*70,120*90 |
| Beam size: | 80*50,100*50,110*50,120*50,140*50,160*50 |
| Thickness: | upright:1.5-2.5mm; beam: 1.5-2.0mm |
| Loading capacity: | 1000-4000kg/layer |
| Layers: | 2-6, as your concrete requirement |
| Delivery port: | Nanjing or Shanghai |
ICHO Storage is one of the most specialized manufacturer and solution designers of various storage systems, helps our customers increase sales, reduce costs and improve productivity.
As one of the fast developing storage racking company in China, Nanjing ICHO storage equipments Co., Ltd. Specializes in providing professional production of storage racks and workshop equipment. Storage racks involves various types of adjustable light, medium and heavy loading racks, multi-tier mezzanine racks, steel platform, drive in rack, automotive shelves, automatic stereo-warehouse (distribution center), mold shelves, cable shelves, and other nonstandard racks. Workshop equipment includes equipment for the production of motor vehicles, trays, box pallets, folding pots, wire mesh containers, stacking racks, logistical carts, etc.
With a factory area of 33, 000 square meters, construction area of 20, 000 square meters, more than 100 sets main production equipments, our production capacity can be 30, 000 ton per year. The whole process including design, purchase of raw materials, production, quality control, installation, after service, etc. Is complied strictly with ISO9001.
By maintaining in house manufacturing and quality control, clients benefit from being able to draw on ICHOs extensive experience in steel forming and fabrication techniques for the creation of custom designed storage solutions.
We are here to provide you better, faster, cost efficient but trustworthy and dependable product and service!
We hold on to the thought that in building long term relationships with clients, we give the impression that we are reliable, trustworthy and dependable.
Welcome your inquiries at anytime and anywhere!
