Home LED Light Products China Heavy Duty Customized Stackable Warehouse Storage Industrial Metal Racks

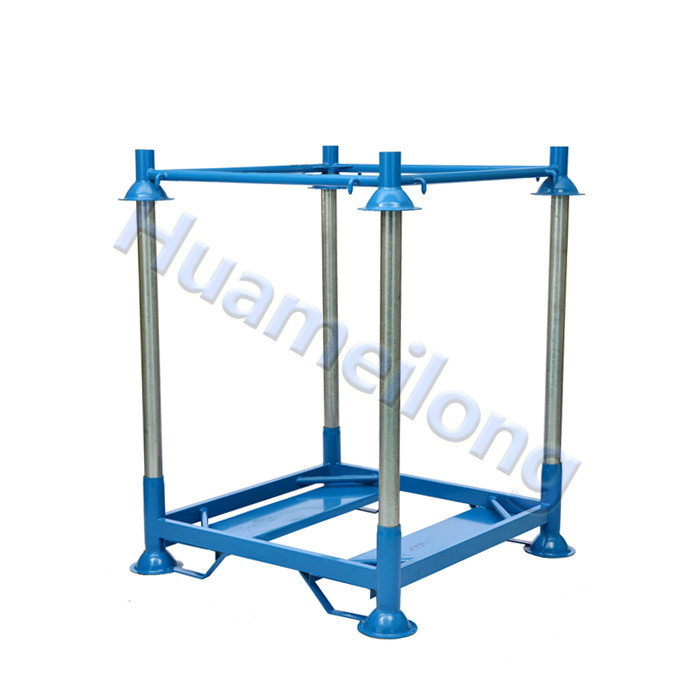

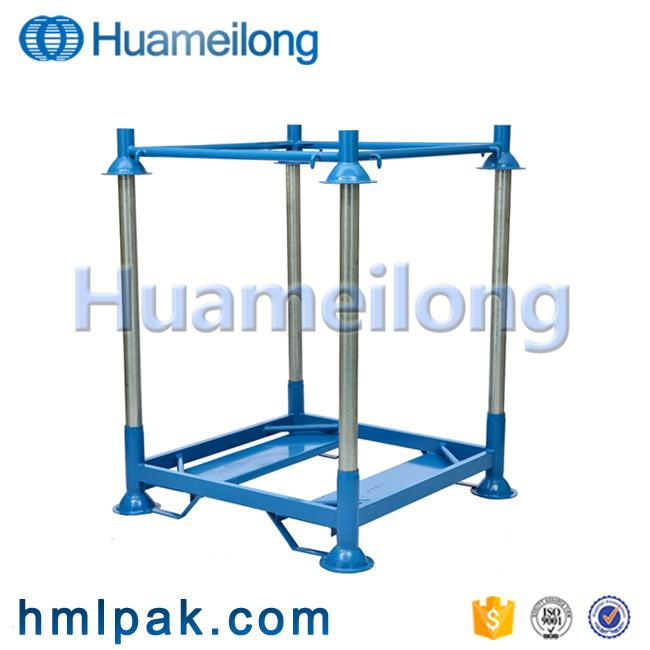

China Heavy Duty Customized Stackable Warehouse Storage Industrial Metal Racks
| Price: | US $ 45-65/Piece |
|---|---|
| Min Order: | 50/Piece |
| Pay Type: | L/C,T/T,D/P |
| Prod Model: | HML-M6 |
|---|---|
| Company Type: | China Professional Manufacturer |
| Product Warranty: | 1 Year |
| Exterior Dimension: | 950X950X310 mm |
| Post: | 2100X60X2.5 mm |
| Loading Capacity: | 1500 Kg |
| Surface Treatment: | Powder Coating/Hot DIP Zinc |
| Load In 40gp/Hq: | 160 |
| Remark: | Customized and OEM Support |
| Posts: | Detachable |
| Available Accessories: | Forklift Guide, Bottom Wire Mesh, etc. |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Mobile |
| Height: | 0-5m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 1500 Kg |
Product Description
Specifications of post pallet rack
| Similar design, defferent sizes | |||||
| Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 220 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 880 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1020 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
| Material | Mild steel Q235 | ||||
Applicationarea | Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||
| Key features | 1.Strong tubular steel - stack up to 4 high | ||||
China heavy duty customized stackable warehouse storage industrial metal racks
1 set = 2 bases + 4 posts, can use with big bag to store goods, load 2000kg, hot dip galvanized

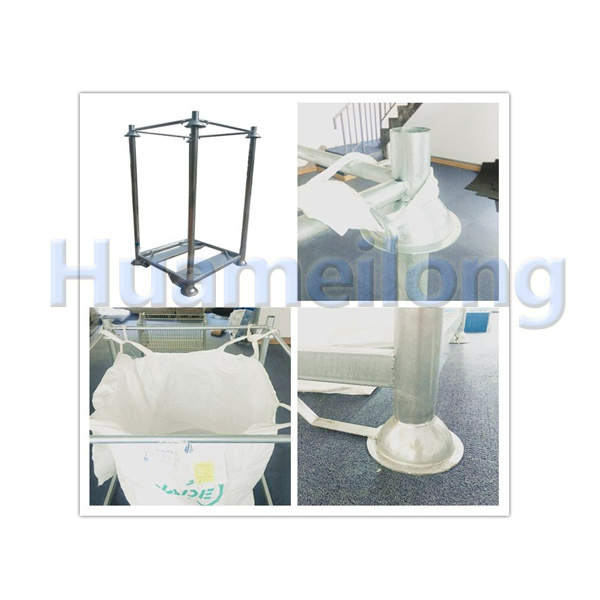

Details of post pallet rack

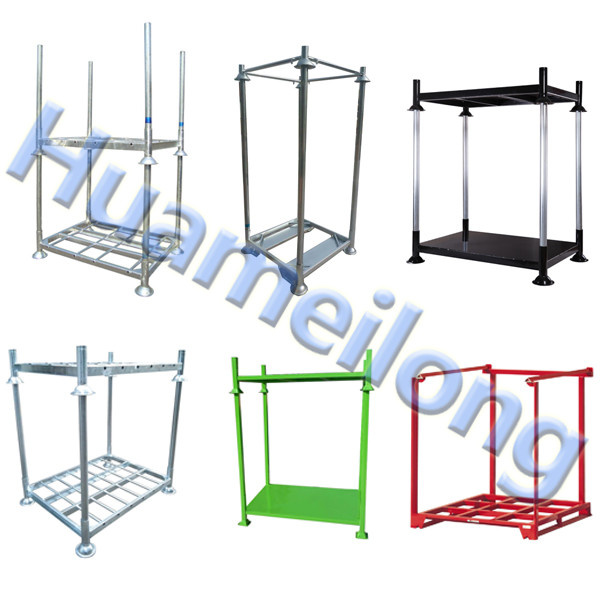

Other designs of post pallet rack
Detchable posts (assembled and disassembled within seconds)
Usage of post pallet rack
It will enable you to transform areas which are usually free into storage spaces

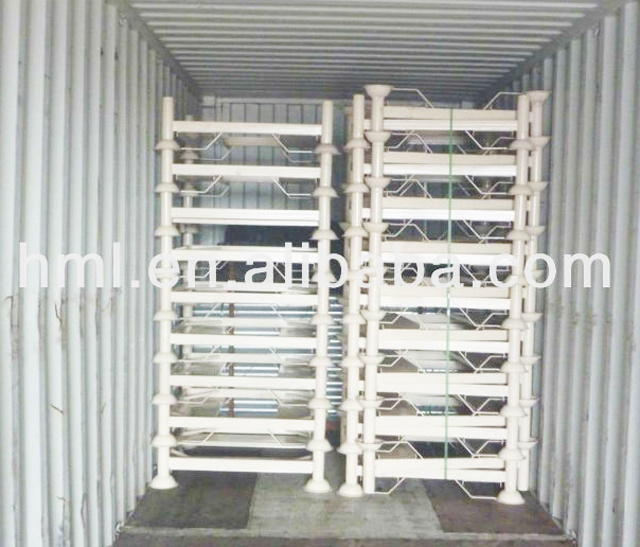

Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack
