Surface Treatment: |
Powder Coated |
OEM: |
Yes |
Certificate: |
ISO/SGS |
Operation: |
Fifo |
Material: |
Steel |
Structure: |
Gate-type Frame |
Mobility: |
Adjustable |
Height: |
5-15m |
Weight: |
150-500kg |
Closed: |
Open |
Development: |
Conventional |
Serviceability: |
Common Use |
Product Description
Product Names:Drive in racking/storage rack/warehouse rack/warehouse storage rack

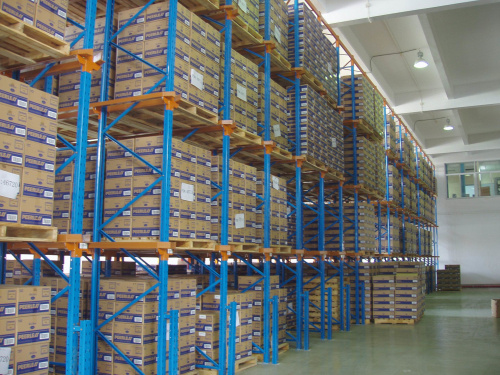

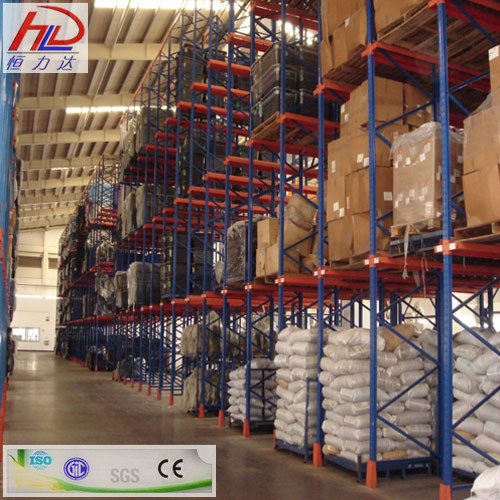

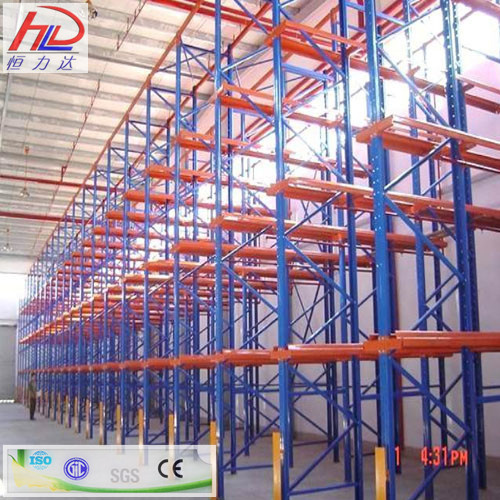

Drive in racking is designed for storage few varieties and large quantities
of similar goods with very high space utilization. The forklift truck can
drive into lane to storage goods. Goods are storage and remove from the same side,
or done from the opposite side in accordance with the " first-in-first-out" principle.
Features:Pallet support rail is punched and roll formed, so it has the
character of long inertial distance/strong load capacity.
Be used in food industry, chemical industry, clothes industry and freeze warehouse and so on.
Picking direction has single and double rows. Single one (near wall) depth is
not exceed 6 pallet depth.
Double one(middle area can pick goods) depth is better control in 12 pallet depth.
This kind system usually not exceed 10 meter high. To fasten it, not only need the strong
structure, but also need to add fix equipment. Goods is better not too big and too weight,
usually less than1500kg. The width is not excees 1.5 meter. And can work in trucks.
We offer design customized, so need following rack's factor: Weight of goods( include pallet or container)
Dimension of pallet and goods(WxDxH)
Pallet's entrance of fork direction
Storage ares( Length, wide, height)
Type and parameter of forklift( include lift height and turn radius)
Storage goods quantity and storage requirement.
Sample :we will send you sample for your reference, but have to pay from your side;
And we will refund the fee once you have an order with us!
Services:Our free services include consultations and sample CAD layouts
of your proposed rack system. Don't hesitate to consider reviewing
the racking systems on site or at our headquarters.
Get the racking system you need at the best price guaranteed.
FAQ1.What is the characteristics of HLD rack ? |
1) Simple to install and economic usage | |
2) Blue upright post and orange box beam | |
3) Rich facilities: post protector,row spacer,support pallet bar,steel decking ,handrail post etc | |
4) First layer pallet can be placed on the floor | |
5) Upright post connect with box beam through wedging, equipped with safety bin to make sure the safety. | |
6) Customized available by your needs. | |
2.What is the delivery time ? |
This depends on products. Typically standard products are delivering within 10 working days. And special products are delivering within 25 working days. |
3.What is the terms of payment. |
T/T,30% deposit balance before shipment, all bank charges be borne by the remitter. |
4.Special export package |
Standard for sea shipping,wrapping film and car board. |
5.Our warranty time |
Nonartificial damage( not including the force majeure 3 years warranty for the product (wood and plastic expect) . |
6.How to know the status of your order ? |
Yes, we will send the email and photos to you about the products at different stages, you can know the latest information . |
Guangzhou HLD Storage Equipment Co., Ltd. Was founded in 2001 with the headquarters located in Guangzhou and branches distributed in Shenzhen, Dongguan, Hong Kong, Suzhou and Chengdu. Since the company established we have specializing in manufacturing, designing and marketing the storage racking & logistic equipment products.
Taking an area of 270, 000 sq. FT plant we have more than 15 automatic racking production lines, 10 sets Computerized Numerical Control machine, 7 sets semi-automated Carbon Dioxide welding machine and 2 sets of fully automated welding robot and also equipped with the advanced powder coated line which takes an area of 45, 000 sq. FT. The number of mechanical equipments still keeps rising. We've already set up a thorough quality management system and most of our items got ISO9001 & CE certificates all the above facilities and management system ensured our high quality products.
HLD racking is widely used in the manufacturing factory, logistics distribution center and etc. We can meet customer's requirements to design research and develop a variety of new storage rackings.
Taking "Scientific Management, Rational Planning and Save Space" as our business principle we put considerable efforts to make the name HLD as an international brand in rack industry within another decade. If you have needs or interests to our company's products please don't feel hesitate to contact us we look forward to providing you the most professional and comprehensive warehouse planning service.
