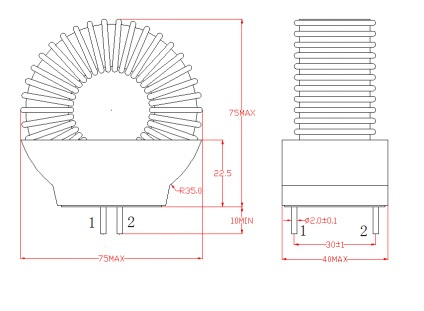

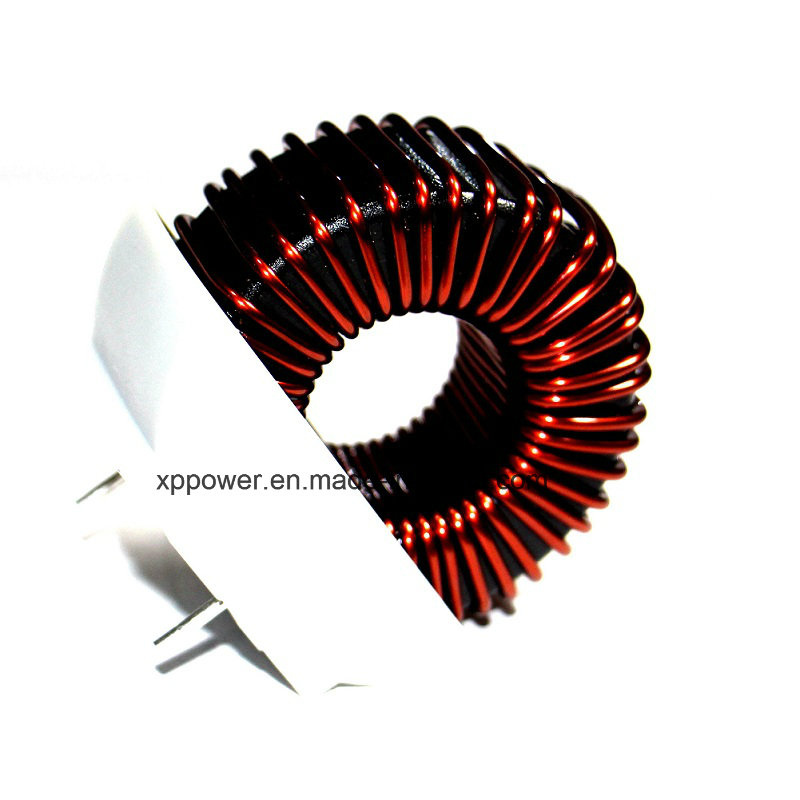

Choke Inductor Magnetic with a Base Bowl Cup Holder
| Price: | US $ 0.1-0.5/Piece |
|---|---|
| Min Order: | 2000/Piece |
| Pay Type: | T/T |
| Prod Model: | LI-TR632631-001R |
|---|---|
| Core: | Different Type Core Avaliable |
| Type: | Choke Inductor |
| Structure: | Inductive Choke |
| Range Of Application: | High Frequency |
| Packaging Form: | Carton |
| Brand: | XP Power |
Product Description
| WDG | WIRE | SIZE | TURNS | WINDING | Insulation | PIN | |
Interblock | S | F | |||||
| N1 | Φ2.0mm | 2UEW-B | 38Ts Ref | 1 | 2 | ||
Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
1)Insulation: Class B(130°C)insulation systems
2) Note: This product according to RoHS.
3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s
Material list:
1 Core: KS250-060A
2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
3 PCB:
4 Case:customized
5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
| XP Part Number | L@0Amps D.C. (MH)±20% | MaxRDC.() | Suggested Rated Current (Amps) |
| XP-ACL2929-0.2MH | 0.20 | .005 | 5.5 |
| XP-ACL2929-0.8MH | 0.80 | .006 | 5.5 |
| XP-ACL2929-1.8MH | 1.80 2.45 | .008 | 5.5 |
| XP-ACL2929-3.2MH | 3.20 | .010 | 5.5 |
| XP-ACL2929-5.0MH | 5.00 | .012 | 5.0 |
| XP-ACL2929-7.2MH | 7.20 | .014 | 5.0 |
| XP-ACL2929-9.8MH | 9.80 | .016 | 5.0 |
| XP-ACL2929-12.8MH | 12.80 | .020 | 5.0 |
| XP-ACL2929-16.2MH | 16.20 | .024 | 5.0 |
| XP-ACL2929-20.0MH | 20.00 | .028 | 5.0 |
| XP-ACL2929-24.2MH | 24.20 | .032 | 5.0 |
| XP-ACL2929-28.8MH | 28.80 | .034 | 5.0 |
| XP-ACL2929-33.8MH | 33.80 | .038 | 5.0 |
| XP-ACL2929-39.2MH | 39.20 | .046 | 5.0 |
| XP-ACL2929-45.0MH | 45.00 | .056 | 4.5 |
| XP-ACL2929-51.2MH | 51.20 | .062 | 4.5 |
| XP-ACL2929-57.8MH | 57.80 | .090 | 3.5 |
| XP-ACL2929-64.8MH | 64.80 | .100 | 3.5 |
| XP-ACL2929-57.0MH | 57.00 | .120 | 3.5 |
| XP-ACL2929-80.0MH | 80.00 | .180 | 2.0 |
XP Power that was established in 1992 is a manufacturing, integrating research & development, trading company, supply as a whole. The company is one of the world's leading developers and manufacturers of power transformers, power inductors, choke coils, high frequency transformers and reactors solutions for the electronics industry with specialists who are versed in all the technical and legislation requirements. The products of XP Power are stable quality, full range of variety, prompt delivery, competitive price so that they are applicable in new energy, communication facilities, UPS power, household appliances, Medical instrument, monitor, automotive electronics and so many other fields. After over a dozen of years' development, the company has complete quality management system, scientific technology research and development system and good service team. And now XP Power has fixed assets to the value of USD 60 million and six hundred employees and three factories located in Foshan, Hefei and Xi' An. The company has an annual production capacity of 50 million PCS. Our main market is Europe, North & South America, Middle East and Asia.
The company is equipped with advanced manufacturing equipment and testing apparatus as well as a R&D center comprised by various technicians, which can offer different customers different new products according to customers' needs, developing and researching more new projects. Our company always adheres to the high quality and technological innovation. In the process of production the rigorous quality inspection standards and inspection technique are used in order to realize the total quality management from the incoming inspection, process inspection, to the outgoing inspection, which guarantee the high quality. The quality of our products recognizes by some authorities and gets all sorts of world-class certification, such as ISO9001 and ISO14001, etc. Our products are RoHS and REACH compliant.
XP Power supplies its products to 30 countries across the globe. Every year, over 30 million coils are wound, over 20 million high frequency transformers are manufactured, and thousands of modules are mounted.
