Coffee PS Cup Making Machine (PPTF-70T)

Coffee PS Cup Making Machine (PPTF-70T)
Price: US $ 165000-200000/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Prod Model: PPTF-70T
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Forming Area: 685×320mm
Forming Depth: 160mm
Sheet Width Range: 550-720mm
Water Consumption: 50L/Min
Power (Three Phase Four Wire): 3×380V+Np+PE.50Hz

Product Description

Products Description:

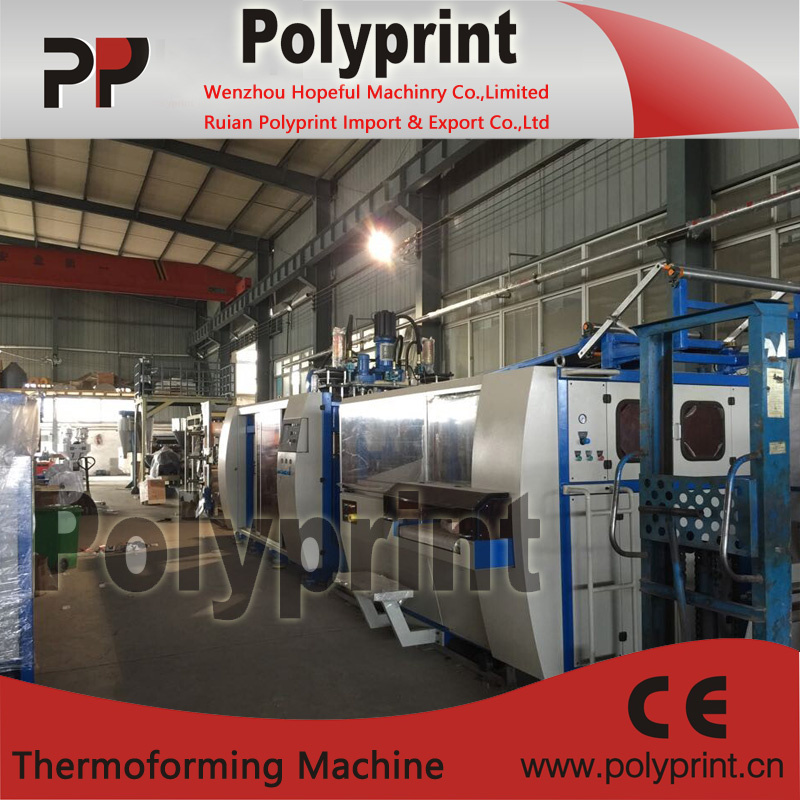

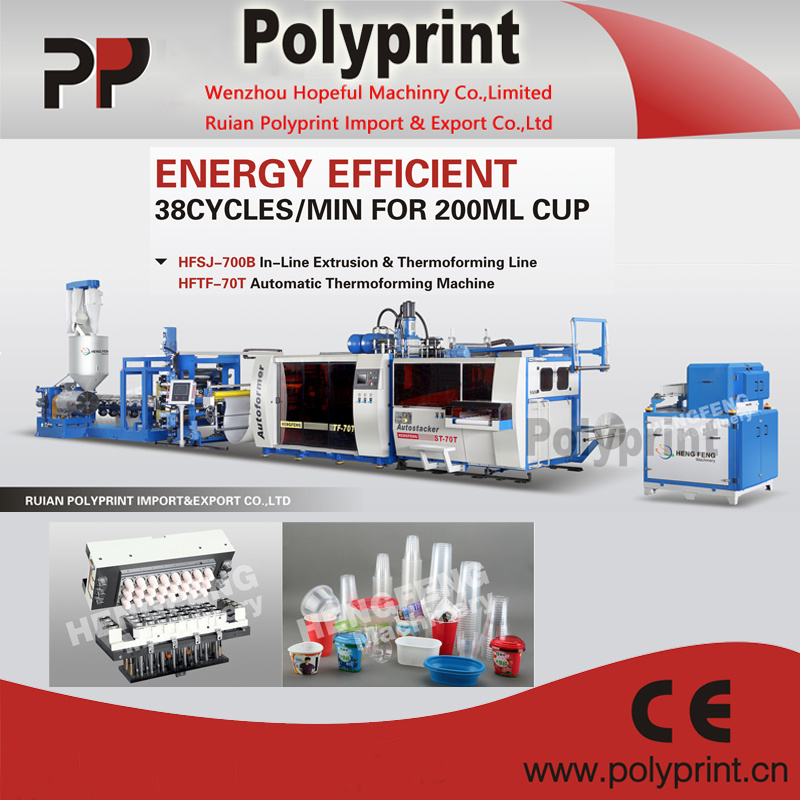

PPTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.

FEATURE:
Rapid mould changing device
Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet.
Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control
Automatic stacker system
PLC and humanized color touch screen control operation interface.
Mould automatic memory system.

Technical Parameter:

1Max. Forming Area685×320mm
2Max. Forming Depth130mm
3Max. Clamping Force300KN
4Dry Cycles Speed42 Cycles/min
5Sheet Width Range550-720mm
6Sheet Thickness0.35-2.0mm
7Max. Roller DiameterΦ1000mm
8Air Pressure0.7-0.85mpa
9Water Consumption50 L/min
10Air Consumption3000 L/min
11Machine Weight11500kg
12Dimension12500×3650×3550mm
13Power (3 Phase 4 Wire)3×380V+NP+PE.50HZ

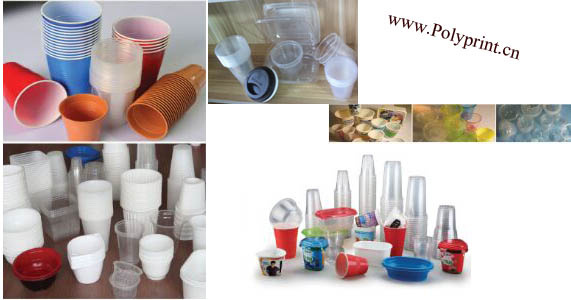

Sample Picture:

Our services:
1.     warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.
2.     Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.
3.     Quotation: valid for 60days.

Packaging shipping:

Company information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.
Contact information:
Mrs Lena
tel:86-13506569687

Ruian Polyprint Machinery Co., Limited specializes in manufacturing plastic PP and PS extruder machine and thermoforming machine. Such as plastic sheet extrusion line, thermoforming machine, and on-line cup making machine, cup lid forming machine, cup lip curling machine, cup automatic packing machine with a batch of semi-senior and senior technical experts, our company has obtained ISO9001 quality system certificate which combined design, development, manufacture, installation and service in to system.

Our products are mainly exported to America, Europe, southeast Asia and southwest Africa. Most of our products are accepted and favored by our clients from all over the world. With the principle of scientific management, our company actively carries out ISO9001 quality management system and implements this standard strictly.

The slogan that best epitomizes our approach to quality is: Service must run ahead of time, the customer is our priority, take technology as our lead, and production must be carried out meticulously and with care. Based on these principles our company has been successfully improving the quality of its products, talking active measures and making reasonable use of its resources.

What we are now striving for is to transform our company into the No 1 packaging manufacturer by exploiting our qualities and promoting ourselves publicly, building ourselves a better profile within the industry. We are looking for serious partners to join us in fruitful commercial ventures. Contact us today to find out more.
