Dog House Battery Rack Storage Peltier Cooling Units
| Price: | US $ 426.47-448.92/Piece |
|---|---|
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | SDC2-200 |
|---|---|
| Max Cooling Capacity: | 200W |
| Max Heating Capacity: | 200W |
| Rated Power: | 450W |
| Working Voltage: | DC48V |
| Max Current: | 8.5A |
| Working Temperature: | -20 to 55 Degrees Celsius |
| Working Humidity: | 10~95% Rh |
| Dimension: | 400*285*250mm |
| Weight: | 9kg |
| Protection Class: | IP55 |
| Type: | Air-Cooled |
| Certification: | CCC |
| Condition: | New |
| Cooling Water: | No |
| Application Fields: | Switchgear Cabinets |
Product Description

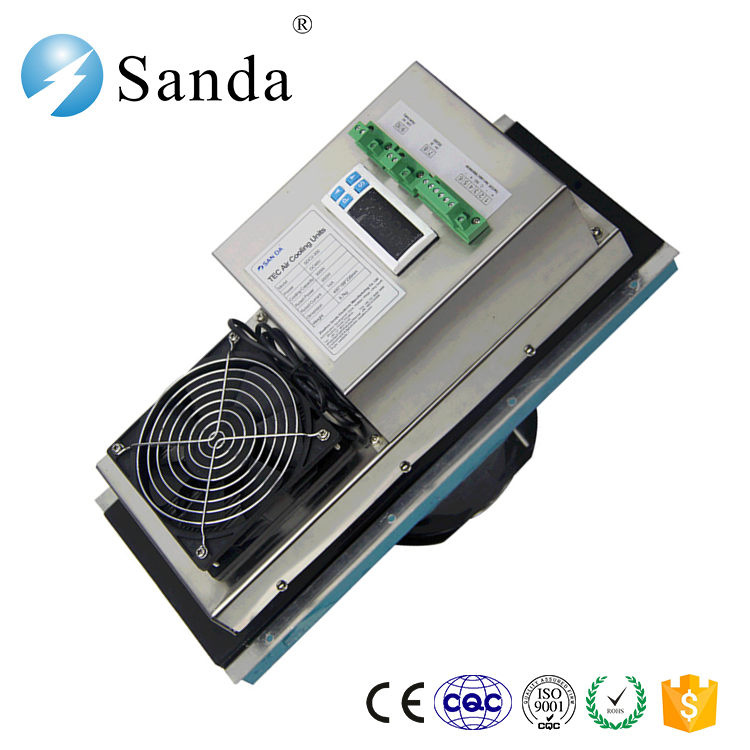

Dog house battery rack storage peltier cooling units
Description
SANDA's 200 W DC solid state air conditioner models are designed to cool your electronic and electrical controls,instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooler is designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in DC power configurations. Coolers feature corrosion-resistant stainless steel construction. All are available with a variety of options.
Features:
• Extremely reliable solid state construction with long lifespan
• Maintenance free design with no moving components (other than fans)
• No compressor, refrigerant or filters
• Compact size, lightweight, convenient to install and operate
• Construction (Type 304 stainless steel) for indoor or outdoor use
• Standard models to 55°C (High ambient models avail.)
• Flush-mount or recessed-mount installation
• Recommended for vertical mounting only
• DC power configurations
• Complete 12 month warranty
Optional features:
• Supplemental heating capability
• Condensate drip pan with fittings and drain tubing
• Extension frame for flush mounting on outside of cabinet
• Rain shroud - vertical mount
• AC power supply (220VAC)
• Digital temperature controller (remote mount)
• Powder coated aluminum construction
Technical Data
No | Parameters | Model No. | ||||
SDC2-200 | SDC2-300 | |||||
1 | Cooling capacity | W | 200 | 300 | ||
2 | Heating capacity | W | 200 | 300 | ||
3 | Rated voltage | V | DC48 | |||
4 | Rated power | W | 450 | 600 | ||
5 | Rated current | A | 8.5 | 13.6 | ||
6 | Internal circulation air flow rate | m3/h | 350 | 360 | ||
7 | External circulation air flow rate | m3/h | 600 | 640 | ||
8 |
Working range | °C | -20~55 | |||
RH | 10%~95% | |||||
9 | Cooling/Heating | Cooling and heating intelligent exchanging | ||||
10 | Protection class | IP55 | ||||
11 |
Dimension | Width |
mm | 250 | 250 | |
Depth | 285 | 285 | ||||
Height | 400 | 400 | ||||
12 | Noise | dB(A) | 60 | 60 | ||
Working Principle
How to install?
A. Embedded the door mounted TEC air conditioner into the open hole from the outside of the cabinet to ensure the TEC air conditioner's mounting flange match the cabinet's installation position.
B. Use 16* M4 phillips screws sequentially align the mounting holes on the mounting flange to fix and tighten it.
C. Check the mechanical installation of the cabinet TEC air conditioner, and do electrical installation after determining correct.

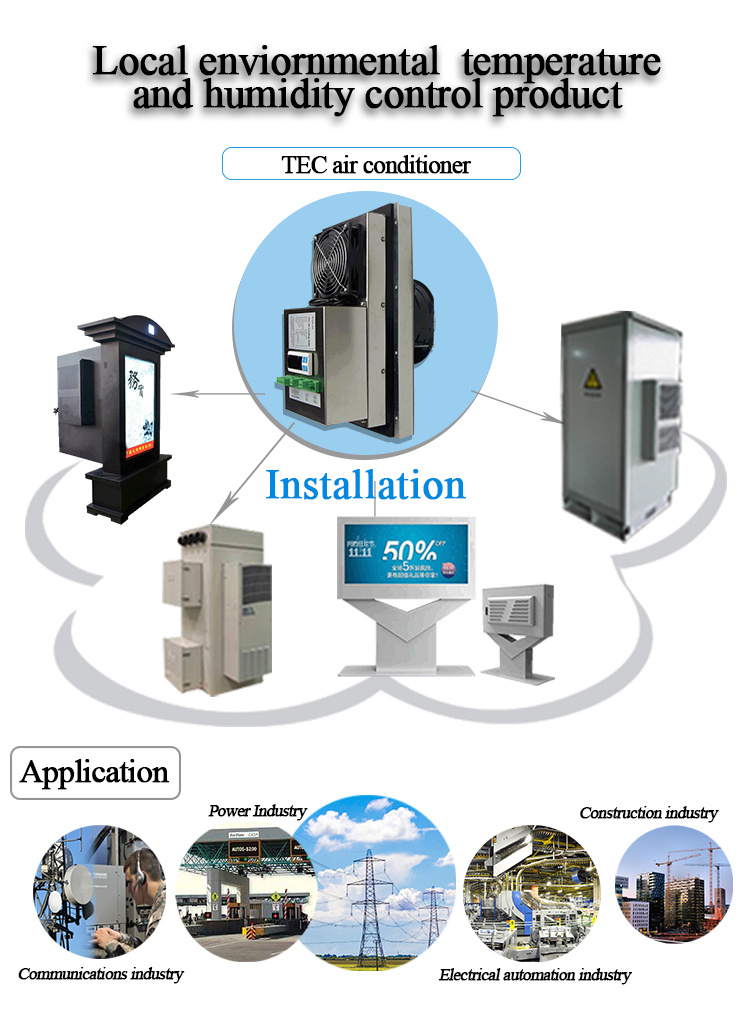

Application
