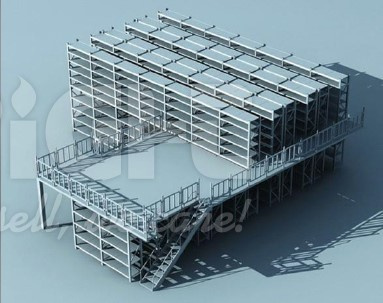

Double Layer Mezzanine Storage Warehouse Racking

Prod Model:	HBE-SR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Finish:	Pantone Color Available
Color:	Powder Coated
Product:	Double Layer Mezzanine Storage Warehouse Racking
Design:	Mezzanine Storage Warehouse
Material:	Steel
Structure:	Shelf
Mobility:	Adjustable
Height:	0-5m
Weight:	500kg
Closed:	Open
Development:	New Type
Serviceability:	Common Use

Product Description

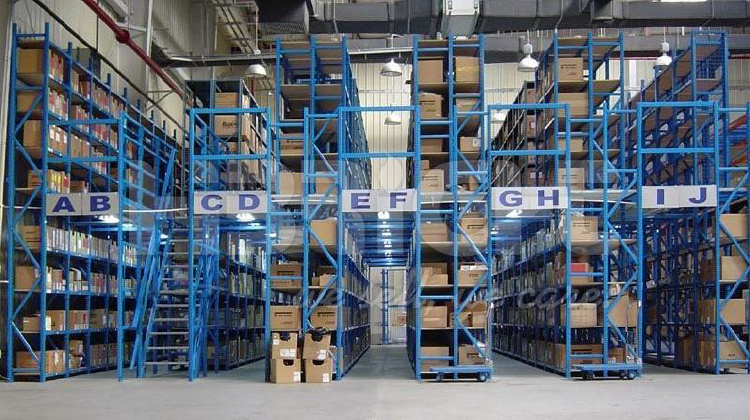

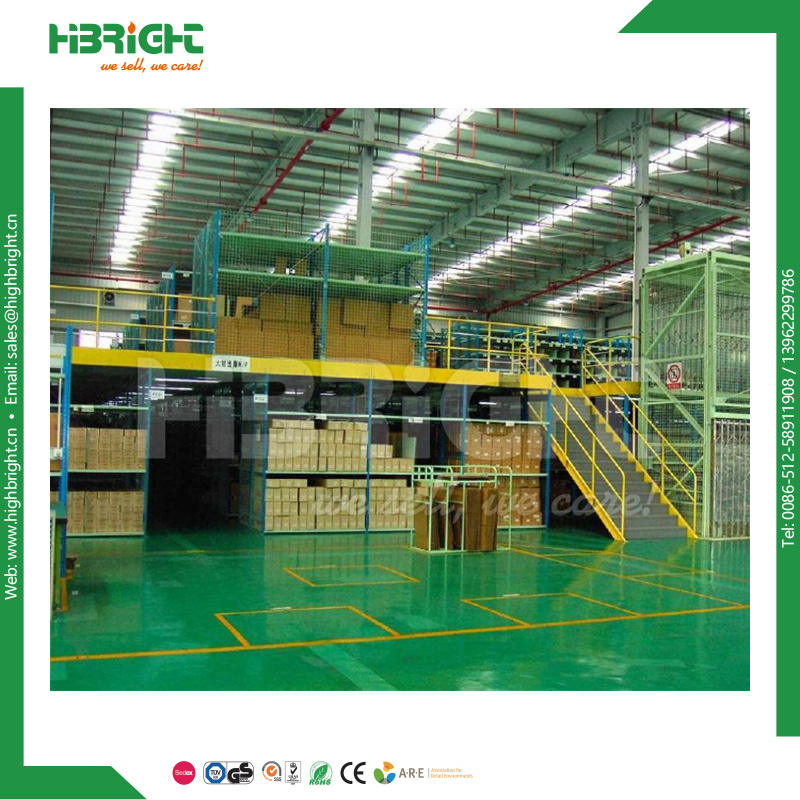

Double Layer Warehouse Racking Storage Shelves







Heavy duty shelving
Heavy-duty Shelving is the idea solution for storing heavy-duty palletized and non-palletized goods.
It's built by pallet racking frames, step beams or standard boxed beams with special clips and shelves. It can be incorporated into Pallet Racking to maximize storage capacity, picking face and minimize storage space.

Characteristics of Heavy Duty Shelving
1. Heavy duty shelving is a kind of assembly type industrial shelving that can be used to store various kinds of bulk cargo.
2. Separate shelf frame and shelf boards are available.
3. The shelf frame is installed with shims and floor fixing bolts.
4. Our heavy duty shelving is very safe and secure.

As a professional heavy duty shelving manufacturer in China, we have passed ISO9001: 2000 certification and our products have all passed FEM, AS4084 tests.
Our heavy duty shelving, material handling equipment and other products are very popular in America, Europe, Oceania, and the Middle East.

Rack Features:

Versatility and flexibility to meet any storage needs:

1. Heights from 1800 mm to 5000 mm

2. Frame widths from 400 mm to 1500 mm

3. Shelf loading capacity from 250 to 600 Kg per level

4. Maximum load per bay up to 5000 Kg

5. Uprights available inΦ 1.5 to 2.0 mm steel

6. Choice of steel or timber shelves (for steel, powder-coating or zinc)

Don't know how to organise your storage? Need help and advice designing your new warehouse layout? Contact us for help and advice by mail.

Please contact us if you require of any of our products.


1. Features:	Pallets can be located, accessed and moved individually. Rapid handling of almost all types of palletised goods. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. Strength and rigidity prevents compression damage to goods. Bottom level of pallets can be stored on the floor, lowering structure costs.
2. Load Capacity & Dimension:	Loading capacity: 500-4,000 kgs UDL/beam level. Height: 1,000-11,000mm Depth: 400-1,500mm Length: 1,500-3,300mm Specail sizes also avaiable to specific storage needs.
3. Main Parts Specs:	Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
4. Material:	High-quality steel
5. Finish:	High-quality Powder Coating Finish.
6. Quick Delivery .	Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
