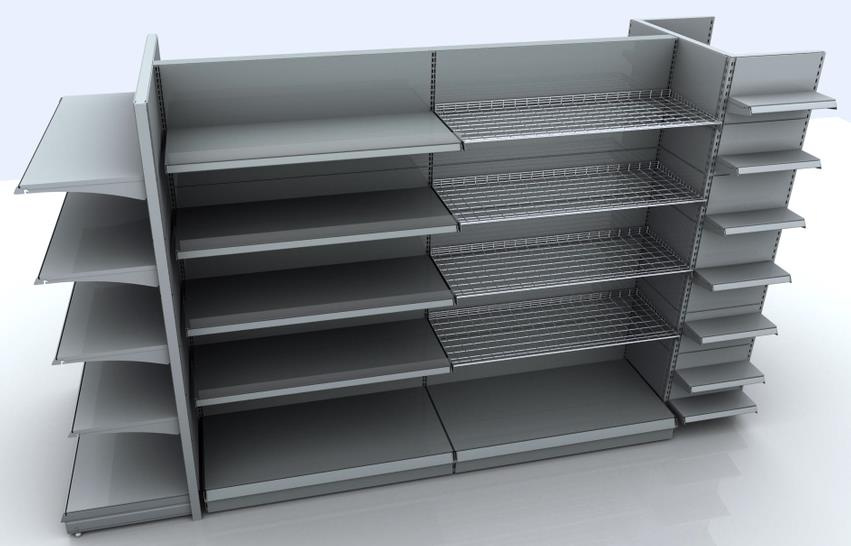

Double Sided Supermarket Gondola with Cold Rolled Steel
Price: |
US $ 50/Set |
Trade Terms: |
FOB,CIF,DAP |
Min Order: |
20/Set |
Pay Type: |
L/C,T/T,D/P,Western Union |
Prod Model: |
HGLS-DSDS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Length: |
900mm/1000mm/1200mm |
Width: |
900mm/1000mm/1200mm |
Height: |
1500mm-3000mm |
Layers: |
4-5 Layers |
Loading: |
80-120kgs |
Steel: |
Cold Rolled Steel Q195 |
Color: |
Customized |
Design: |
R Angle |
Certificate: |
CE and ISO |
Surface Treatment: |
Power Coating |
Material: |
Steel |
Side Number: |
Double Sided |
Weight: |
Heavy Weight |
Rotary: |
Rotary |
Usage: |
Convenient Store |
Customized: |
Customized |
Style: |
Euroepan Standard |
Product Description

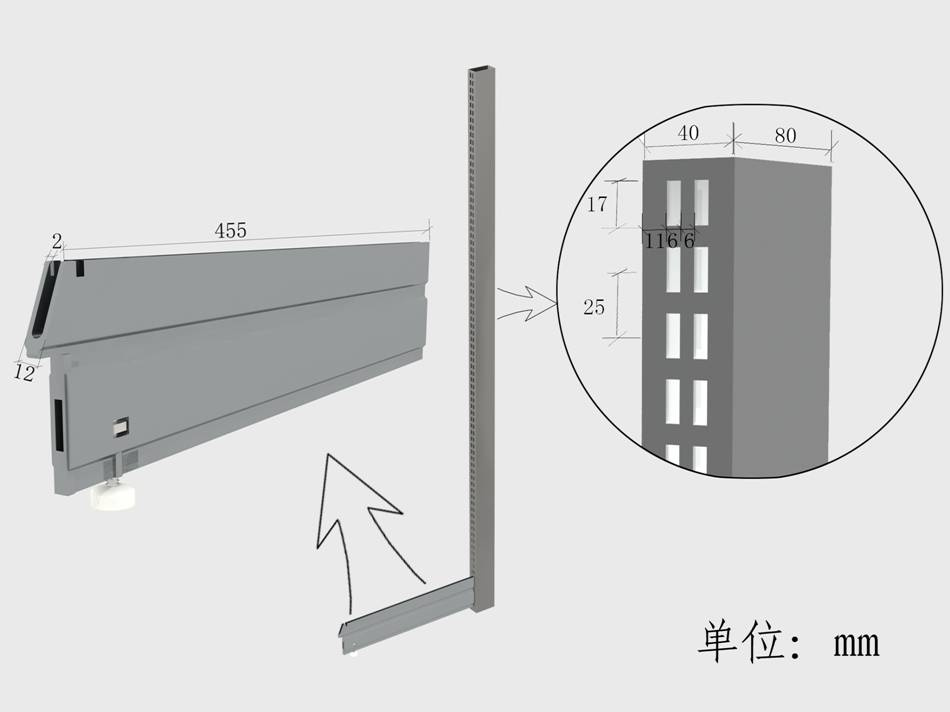

1. Upright: 40*80/30*80/30*60, the base leg could be assembled or welded.
2. Back panel: each one could be installed separately.

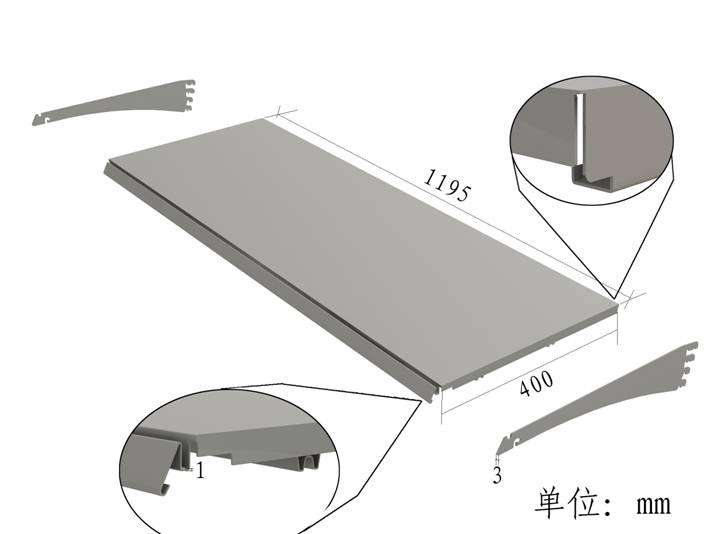

3. Shelf board: 8 bends are rolled one time. There are 5 bends on the front and 3 bends on the back. which not only make sure the solid, but also with good looking.
4. There are 30 technical processNO | ITEM | tehnical process | process quantity |
1 | Upright | cutting-punching(2) | 3 |
2 | base leg | cutting-punching(2)-welding | 4 |
3 | shelf board | cutting-rolling-welding | 3 |
4 | bracket | cutting-punching | 2 |
5 | strengthen rib | cutting-rolling | 2 |
6 | base board | cutting-rolling-welding | 3 |
7 | back panel | cutting-rolling | 2 |
8 | pre treatment | acid picking-clean watering-phosphorization treatment-clean watering-table transfer-neutralization | 6 |
9 | power coating | drying-coating-high temperature curing | 3 |
10 | package | caculating-package | 2 |
total | 30 |
5. Qualtiy warranty: 12 months.
6. layout drawing and 3D pictures are freely supplied
Hebei Woke Metal Products co Ltd founded in 1996, the headquarters and two sales company is located in Shijiazhuang hebei province, the production base is located in Hebei Xinhe industrial zone. We are partisan council unit of the China Storage & Distribution association/Hebei province modern logistics association and Hebei province e-commerce association. "HEGERLS" is ours registered trademark.
We can supply project plan design, supermarket and storage equipment and facilities installation, operation and management personnel training, supply series products, business planning and after-sales service, e-commerce etc. Our products and services has covered nearly 30 domestic provinces, cities and autonomous regions, products are exported to Europe, America, Middle East, Latin America, southeast Asia and other countries and regions. Annual sales of nearly 230 million yuan. More than 300 staffs, own production base and experimental centre, equipment research and development team, installation and after-sales service team, with senior technicians and senior engineer titles nearly 60. Company production base has the world advanced production assembly line 48.10 national patents of radio shuttle cart, stacker, mobile shelves, won the SGS, TUV certificate and ISO9001 certification.
In recent years, completed the domestic projects including: Sinopec storage project, Shanxi YunCang storage & distribution project, JiLin Long-Mart storage and distribution center project, Anguo Zhengtai Storage & distribution center project, Beiguo Goup supermarket chains, Guoda chain convenience stores, Hebei province expressway service area series of convenience stores and distribution centers, Junlebao dairy warehousing projects, etc.
Overseas projects: Sweden SwedMart warehouse project, Chile fisheries association Oscar refrigeratory AS/RS projects, Algeria FACTO storage projiects, Thailand JM Group AS/RS projects, FX Group South Africa AS/RS projects, AALM company UAE AS/RS projects. Automatic sorting stacker in FX Group South Africa AS/RS projects is domestic initiative within international leading level.
