Drive-in Warehouse Pallet Storage Rack
| Price: | US $ 89-298/Set |
|---|---|
| Min Order: | 50/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Drive-In Pallet Rack |
|---|---|
| Surface Finshed: | Good Powder Coating |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Fixed |
| Height: | 0-5m |
| Weight: | 150-500kg |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
Product Description

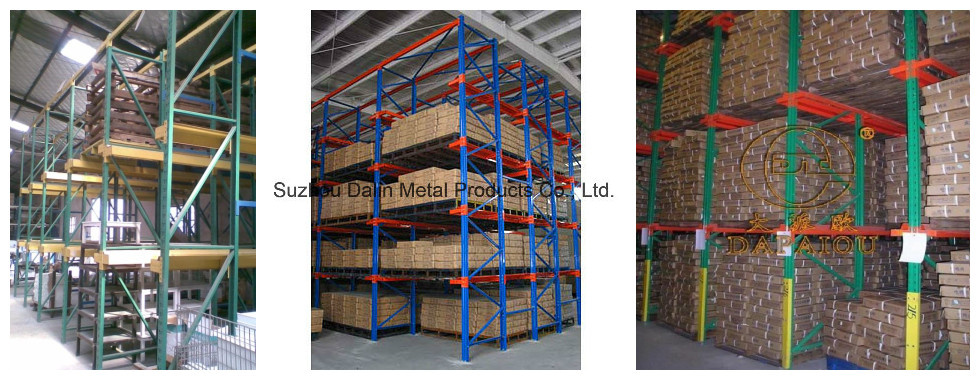

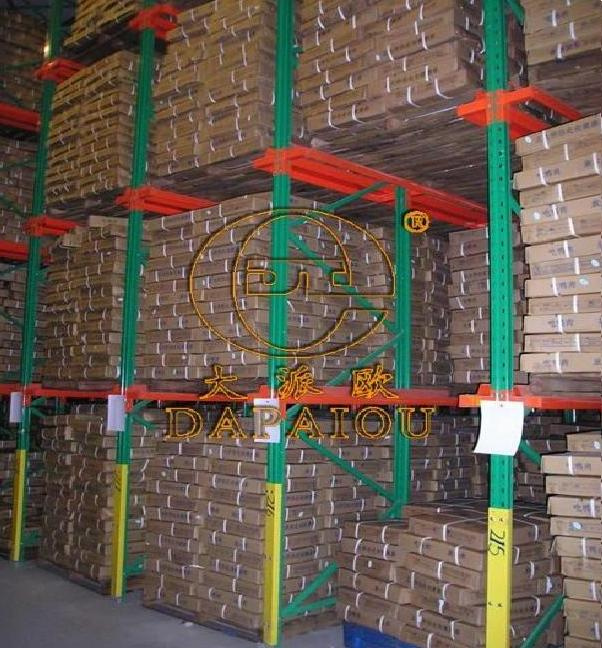

Drive-in Pallet Rack
Suitable for the one fold storage breed,the using rate of the warehouse space reaches 80%.
Features, advanced to come out finally.
| Size: | According Pallet& Product make. Customized |
| Loading Capacity: | One pallet 500kg |
| Price: | FOB/CIF/CFR/EXW |
| Packing: | Standard Export Packing |
| Payment: | 30% T/T advance. L/C st sight |
| Delivery date: | Within 15-25 Workdays |

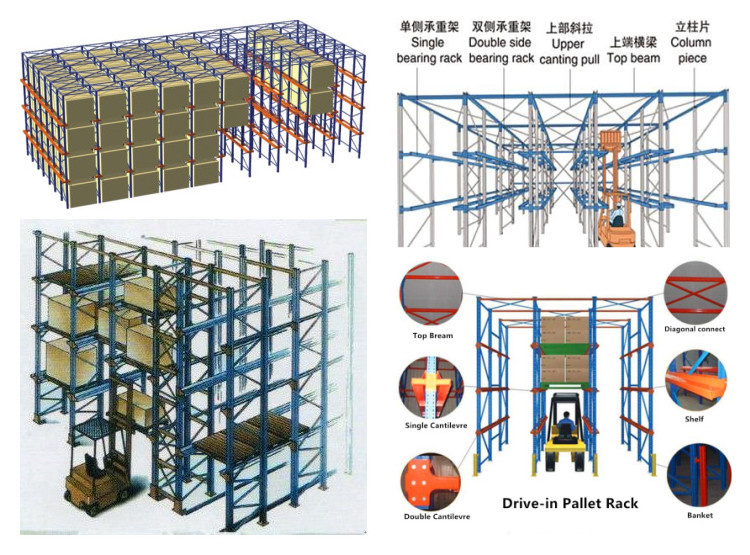

Structure:
1. Drive-in racking is also called corridor-type racking, composite structure, specialized high-intensity drive-in brackets, high-strength drive-in beam, frames are connected to top beams by bolts&nuts.
2. The depth of the single side drive-in racking which is against the wall should not be more than 9 pallet locations, and that of double side drive-in should be less than 15 pallet positions so as to ensure the loading efficiency of forklifts and stability of racking.
3. It is best to make drive-in lower than H11000mm because of its not so good stability which is the weakest compared with other racking system. The drive-in racking should be equipped with back, top cross beams, etc. To stabilize the racks.
4. This type of racking is densely arrayed, making full use of storage space; Both "first in first out" and "first in late out" are available, suitable for storing few types of goods with large quantity. Widely used in milk, drink industry, and also be welcome by cold storage.
Please give us you needed product information for a quick quotation:
*Size of your supermarket shelf
*Length, width, depth of supermarket shelf
*Height of supermarket shelf
*How many layers you need.
*Loading capacity of each layer.
*The color you want.
Terms and conditions:
1. Price terms: EXW/FOB/CNF/CIF.
2. Payment: 30% by T/T, balance by T/T before shipment. Other payment way can be negotiated for big order.
3. Package: Export standard package suitable for tough handling and sea transport.
4. Delivery: Goods to be ready within 10~30 days depending on order quantity.
5. Certification: SGS, ISO.
