Easy Assembly Racking HD Pallet Racking Metal Shelf

Easy Assembly Racking HD Pallet Racking Metal Shelf
Price: US $ 1040-1080/Ton
Min Order: 10/Ton
Pay Type: L/C,T/T
Prod Model: LS 60
Shelve Thickness: 0.6-0.7mm
Upright Height: 1.8-2.5m
Step Beam: 50*30, 60*40, 80*50
Finish: Epoxy Powder Coated
Material: Steel
Structure: Rack
Mobility: Adjustable
Height: 0-5m
Weight: 150-500kg
Closed: Semi-closed
Development: Conventional
Serviceability: Common Use
Type: Long Span Racking

Product Description

1.    Product Description:

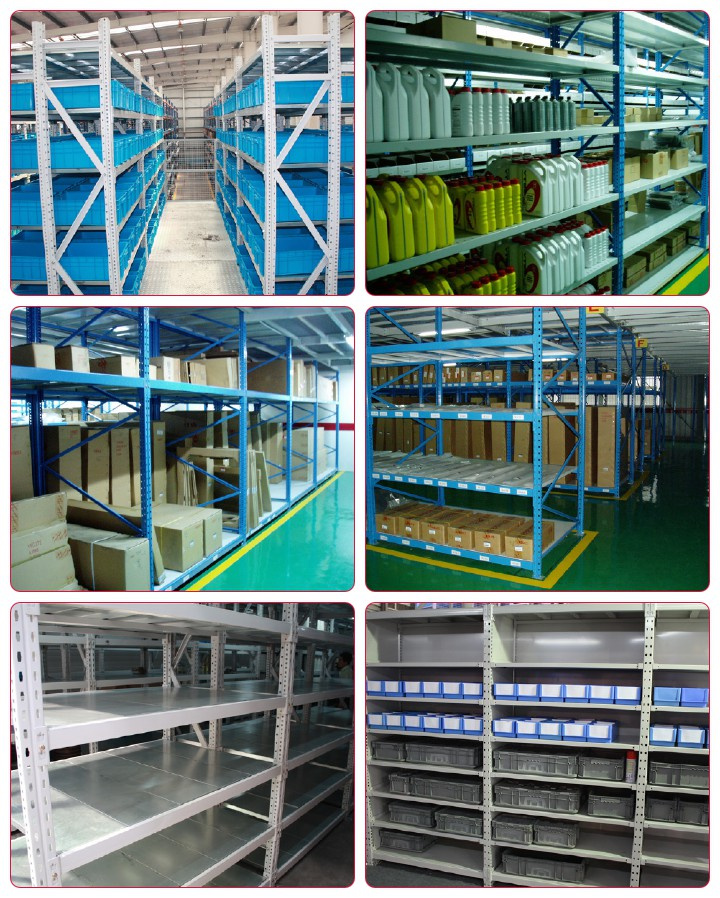

The long span racking is suitable for the storage of manual hand pick small items, containers and transport containers. The rack can be arranged in single run or double back-to-back, walkway width is approximately 900-1100mm(W). Each level of medium duty shelves can take the load from 200kg-600kg. it is widely used in warehouses, distribution center, parts store and production line. It is easily adjusted without using special tool.

2.  The basic components

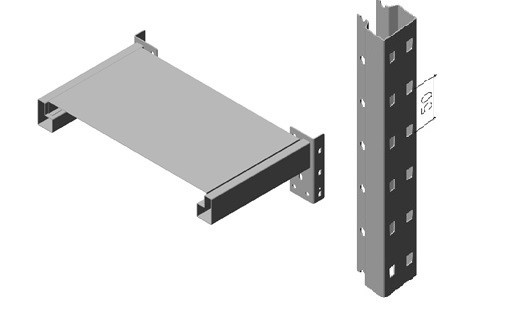

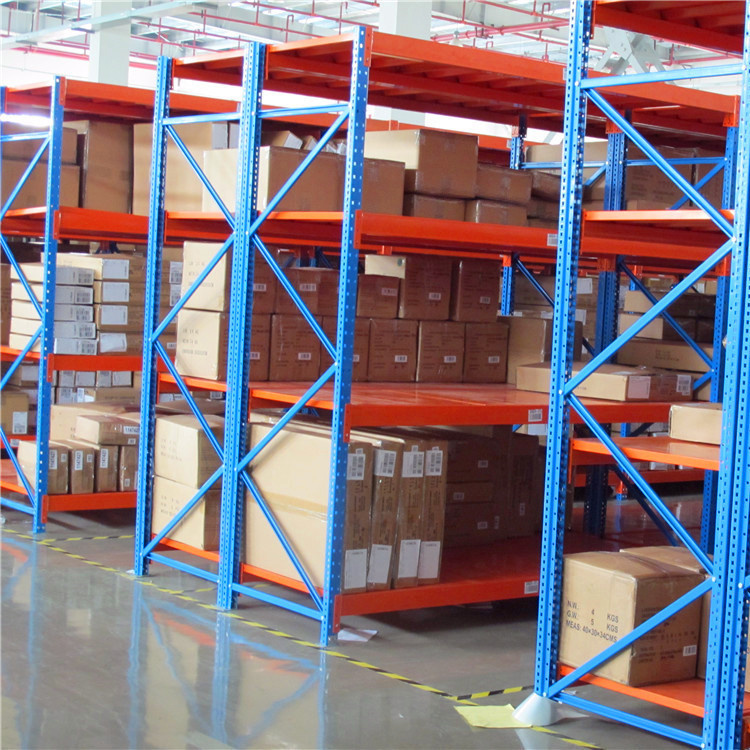

The upright is around 55-60mm width, which has the similar structure with pallet rack frames. Horizontal and diagonal braces are fitted to the lower and upper part to ensure frame rigidity. Bolted base plates are fitted to each frame, dependent on designed capacity.They are adjustable on vertical pitch of 50mm or 75mm. Each beam has a step of 24-28mm for fitting of steel shelves, and an integral safety lock is fixed to prevent accidental removal of step beams. Beam load capacity is based on your requirements.
 Cold rolled steel sheets are used to make the steel shelves. Normally the material thickness can be 0.6mm to 0.8mm for SPCC. 4-6 pcs of shelves for one level of racking. Underneath the shelves, reinforced bars are spot welded to offer more loading capacity.


The finish of all painted parts is an Epoxy-powder coating polymerized at 180 °C.
The standard colors are  RAL 5015 (=blue) and RAL 7035 (=light gray). Shleves can also be galvanized finishing. Special colors are available on request.



3. The main components are uprights, step beams and shelves. The standard specifications are as follows:

Main componentsSpecsThicknessMaterial
Frames55*47*1.51.5Q235B
55*47*1.81.8Q235B
60*60*1.51.5Q235B
60*60*1.81.8Q235B

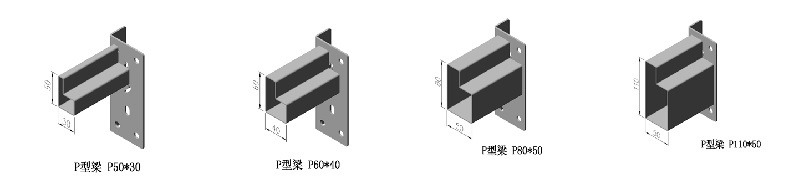

Step Beams50*30*1.21.2Q235B
50*30*1.51.5Q235B
60*40*1.21.2Q235B
60*40*1.51.5Q235B
80*50*1.51.5Q235B
80*50*1.81.8Q235B
80*50*2.02.0Q235B
110*50*2.02.0Q235B
110*50*2.32.3Q235B
Shelves24H, 28H0.6SPCC
24H, 28H0.7SPCC





Recomended Standard size for Long span racking:
Frame Height
(mm)
    Shelf Clear Width
(mm)
  Frame Depth (mm)
18001200400
21001500500
24001800600
27002000800
300023001000


4. Advantages and Key benefits·

Complies with international norms and regulations
·        Wide range of basic components for storage of all pallet sizes and weights.
·        Many standard accessories to meet every storage need you can imagine
·        Computer aided design ensuring the best solution for every application, including static calculations
·        Rigid and stable construction
·        High quality of finish
·        Easy and quick installation
·        Mass volume production to offer very cost effective products

5. Step Beam Loading Chart:

Beams SpecificationClear Entry (mm)  Deflection<1/200
10001200150018002000210023002500
Step Beam 50*30*1.5700500300
Step Beam 60*40*1.515001000650450375
Step Beam 80*50*1.5 240015001100880700500
Step Beam 110*50*1.5  200015001100900750500

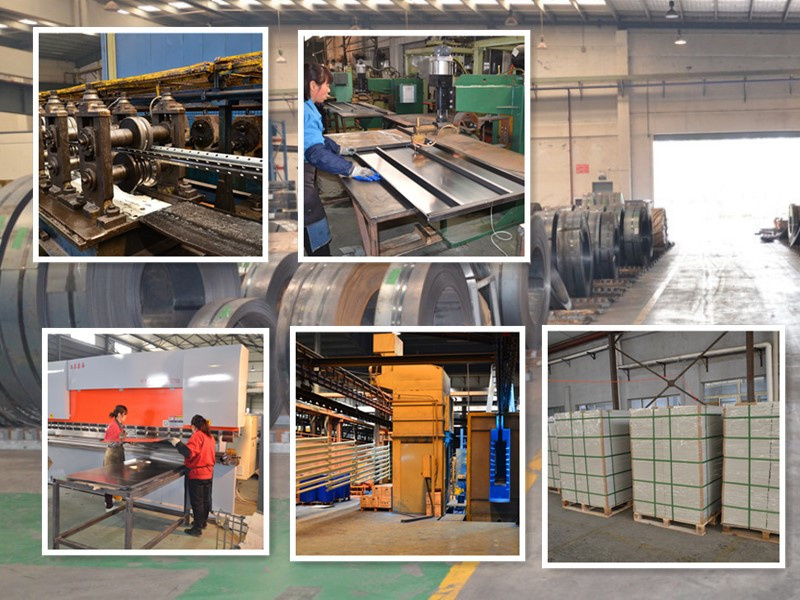

6. Factory Production:



7. RFQ documents:  Before you send us your Requirement For Quotation, please prepare the following information:
  1. Warehouse layout CAD drawings if available.
  2. Carton box size, width, depth and height.
  3. Loading weight per box.
  4. Clear height of the warehouse
  5. Required line items to be stored.
  6. Your intra logistic flow within the warehouse.
  7. mateail handling equipment informaiton such as picking trolley, mobile ladders, etc.


Shanghai Calin Logistic Equipment Co. Ltd. Is one of the professional suppliers for storage and logistic equipment with the specialty of racking design, manufacturing, sales and services. The company is located in Changning District, Shanghai. Our main business is to provide racking systems for the storage of palletized or small goods and longer items.

The company's Motto is Credibility, Specialty, Innovation and Win-win. Calin provide storage solutions to improve the warehouse usage and logistic efficiency, which creates value for the clients, this is also the mission for the company development.

There are two racking manufacturing plants in Kunshan and Zhenjiang, Jiangsu province, covering the total area of 20, 000 M2 with 150 employees. The factory is equipped with high precision roll forming machine, cold formed and sheet cutting, metal structural components welding and automatic epoxy painting line. The factory has been awarded ISO9001 since 2007. The experienced sales engineers and designers are able to provide "tailor-made" proposals for the clients, so as to provide rapid and most suitable storage solutions.

Our main products are conventional pallet racking, compact storage systems (Mobile pallet rack and Pallet shuttle system), Long span shelving systems and ASRS racking systems total integration. The products are widely used in food industry, auto parts storage, e-commerce logistics, manufacture industry, pharmaceutical, commercial distribution, etc. Our clients include FAW, BMW, Amazon, Siemens, Philips, Emerson, and also include many local developing private companies, as well as the products exported to South East Asia, Middle East, Australia and Europe, etc.
