Home LED Light Products Easy Installation Heavy Duty Pallet Beam Storage Racking
Easy Installation Heavy Duty Pallet Beam Storage Racking
| Price: | US $ 0.8-1.216 |
|---|---|
| Min Order: | 116 |
| Pay Type: | L/C,T/T |
| Prod Model: | PR |
|---|---|
| Surface Finished: | Power Coating/Galvanized |
| Color: | Royalblue/Charcoal Gray/Orange/Medium Yellow |
| Certificates: | ISO900, Ohsas18001, SGS. |
| Box Beam: | 50*80/100/120/140/160*1.5/2.0mm |
| Upright: | 80*60*2.0/90*68*2.0/100*68*2.0mm |
| Row Bracer: | 40*24*1.5/40*34*1.5mm |
| Design: | Free and Professional Design |
| Custom: | Yes |
| Brand: | Union |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | for Special Purpose |
| Weight: | 500-5000kg |
Product Description

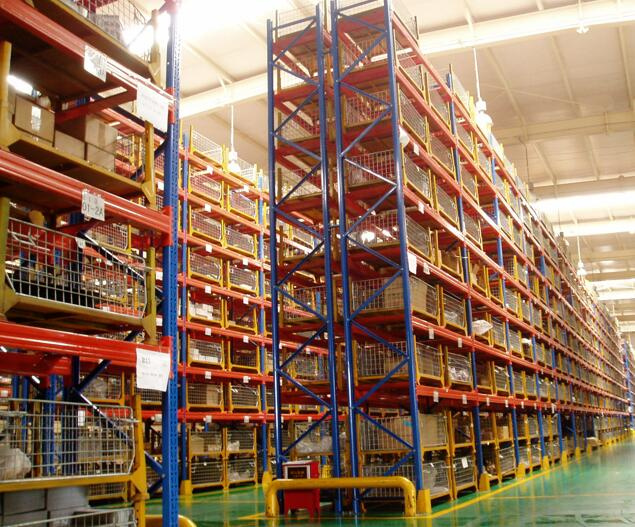

Selective Pallet Rack for warehouse storage
Description:
Beam rack, we also called them pallet rack. It composed by beams and uprights. Pallet Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Below is some information you should get.
| 1. | Feature | A. Pallets can be located, accessed and moved individually. B. Rapid handling of almost all types of pallet used goods. C. Infinitely adjustable and offering a wide range of options and components to accommodate specific needs. D. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. E. Strength and rigidity prevents compression damage to goods. F. Bottom level of pallets can be stored on the floor, lowering structure costs. |
| 2. | Loading capacity & Specification | A. Loading capacity: 500-4000 kgs UDL/layer. B. Height: 1000-9000mm C. Depth: 400-1500mm D. Length: 1500-3300mm E. Special sizes also available to specific storage needs |

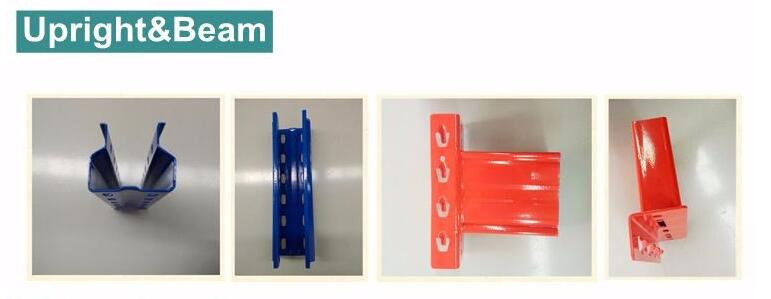

| 3. | Parts | A. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. B. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., C. Adjusted by 50-75mm pitch D. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components |
| 4. | Material | High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China |
| 5. | Finish | Epoxy power coated / Glavanize |
| 6. | Quick Delivery | Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
| 7. | SGS test | Union's racking can be tested by international authority test organization, most of our customers like to be tested by it. It is also a trend of it in the future |
Our pallet racking can be design according to your requirements! Company Show

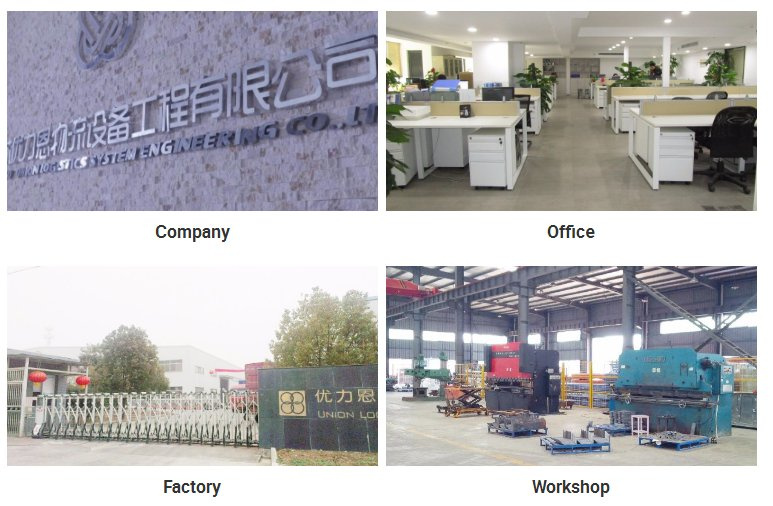

Company
Jiangsu Union Logistics System Engineering Co., Ltd
Established in 1995, Possessing 10 years export experience; With the strength of Pallet Racking, MID-duty Shelving, Radio Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Our Products: Pallet Racking, MID-duty Shelving, Radion Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Service
Service
We can offer CAD design service for customer for free charge and give customer technical support
Kindly provide information f- Drawing of racking (if available)
- Dimension of your warehouse (Length X Width X Clear height mm)
- Pallet Size (W*D*H) & loading weight
- How many layers and bays
- The color you want
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Please feel free to contact us if you are intersted in!
We kindly welcome clients from all over the world to contact us.
Give us a chance to be your provider, we guarantee you'll be pleased with our performance.
Jiangsu Union Logistics System Engineering Co., Ltd. Is a specialized designer and manufacturer of logistics systems, including racks, logistics systems, and multi-layer warehousing systems. Besides, Union also provides warehouse storage solutions for our clients.

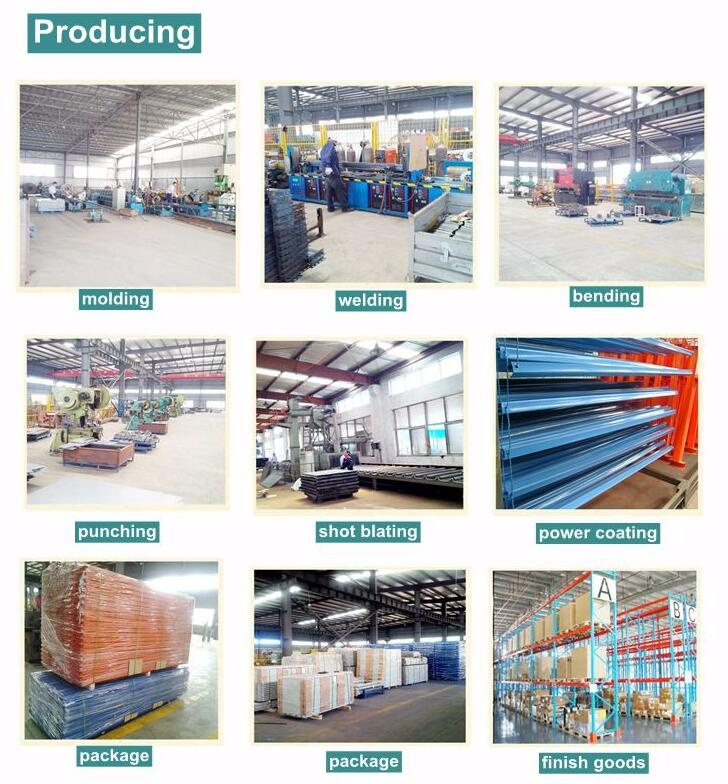

Union possesses a professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology and perfect quality-guarantee system. We have ability to supply large quantity of products which amounts to about 3, 000MT per month. Moreover, our products have been widely used in large companies, Our sales network covers 28 provinces and regions in China, and our overseas market includes North America, Southeast Asia and West Europe. We have several distributors in Europe and the US.
We can supply following products:
1. Light, medium and heavy pallet racking;
2. Drive-in, flow-through, cantilever, movable racking;
3. Radio Shuttle Pallet Rack, AS/RS system, Stacker Crane, mezzanine floors/multi-tier racking;
4. Kinds of pallet, for example, steel pallet, foldable mesh box pallet, and plastic pallet
As one of the best logistics system suppliers in China, Union will provide our clients with high quality products and excellent services. Our trade team will respond to your inquiries within 24 hours.
Union possesses a professional sales team, experienced engineers, advanced manufacturing equipment, particular production technology and perfect quality-guarantee system. We have ability to supply large quantity of products which amounts to about 3, 000MT per month. Moreover, our products have been widely used in large companies, Our sales network covers 28 provinces and regions in China, and our overseas market includes North America, Southeast Asia and West Europe. We have several distributors in Europe and the US.
We can supply following products:
1. Light, medium and heavy pallet racking;
2. Drive-in, flow-through, cantilever, movable racking;
3. Radio Shuttle Pallet Rack, AS/RS system, Stacker Crane, mezzanine floors/multi-tier racking;
4. Kinds of pallet, for example, steel pallet, foldable mesh box pallet, and plastic pallet
As one of the best logistics system suppliers in China, Union will provide our clients with high quality products and excellent services. Our trade team will respond to your inquiries within 24 hours.
