Price: | US $ 1kg |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 10/Ton |
Pay Type: | L/C,T/T |
Prod Model: | MR |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: | ISO9001, As4084, CE, SGS |
Material: | Steel |
Structure: | Rack |
Mobility: | Adjustable |
Closed: | Open |
Development: | Conventional |
Serviceability: | Common Use |
Height: | up to 12m |
Weight: | up to 4, 000 Kgs Udl/Level |

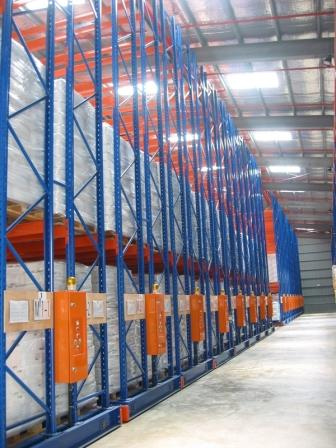

Powered Mobile Pallet Racking
With land, building and operating costs escalating, there is a compelling need for high density storage systems, improved productivity and lower costs.
Powered Mobile Racking can double your pallet storage capacity when comared with selective type pallet racking and yet allow 100%, stock selectivity. Powered Mobile Racking can utilize up to 80% of available space for storage, whilst selective type racking systems utilize as low as 50%.
With Sin-Sino Powerd Mobile Bases, you can move banks of 7, 8, 9 or more double sided racks, smoothly and safely, to provide one operating aisle.Sin-Sino Powered Mobile Base Systems are rigid, stable and safe to use. Systems up to 12 meters high carrying loads, light or heavy, hand or mechanically loaded and small or large installations.
With Sin-Sino many years of experirnce as a manufacturer and installer of Powered Mobile Systems, we can assist you with system design, civil works co-ordination and rail selection, laying and leveling. Sin-Sino can design a racking syste and layout to suit your requirements.
Sin-Sino offer dynamic system at low costs.
Detail:
Load Capacity: | 1000-4000Kg/Lever | Surface Treatment: | Powder Coating |
Color: | Customizable | Hieghth/Depth: | Customizable |
Dimensions: | Customizable | Metal: | High Quality Cold Rolled Steel |
Specification:
Specifications of Beam | |||||
Type | Item | Height(mm) | Width(mm) | Thickness(mm) | |
P style Pipe(Step Beam) | 1 | 50 | 30 | 1.5 | |
2 | 60 | 40 | 1.5 | ||
3 | 80 | 50 | 1.5 | ||
4 | 110 | 70 | 1.5 | ||
5 | 140 | 70 | 1.5 | ||
6 | 160 | 70 | 1.5 | ||
Box Beam | 7 | 80 | 50 | 1.5 | |
8 | 100 | 50 | 1.5 | ||
9 | 110 | 50 | 1.5 | ||
10 | 120 | 50 | 1.5 | ||
11 | 140 | 50 | 1.8 | ||
12 | 160 | 50 | 2.0 |
Specifications of Upright | ||||
Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
1 | 85 | 67 | 1.6 | 7000 |
2 | 85 | 67 | 1.8 | 8500 |
3 | 85 | 67 | 2.0 | 10000 |
4 | 85 | 67 | 2.3 | 12500 |
5 | 100 | 67 | 1.8 | 10500 |
6 | 100 | 67 | 2.0 | 12000 |
7 | 100 | 67 | 2.3 | 13800 |
8 | 100 | 95 | 2.0 | 12000 |
9 | 100 | 95 | 2.3 | 14500 |
10 | 100 | 95 | 2.5 | 16000 |
11 | 100 | 95 | 2.75 | 18000 |
12 | 100 | 95 | 3.0 | 20000 |
13 | 120 | 95 | 2.5 | 17000 |
14 | 120 | 95 | 2.75 | 19000 |
15 | 120 | 95 | 3.0 | 21000 |

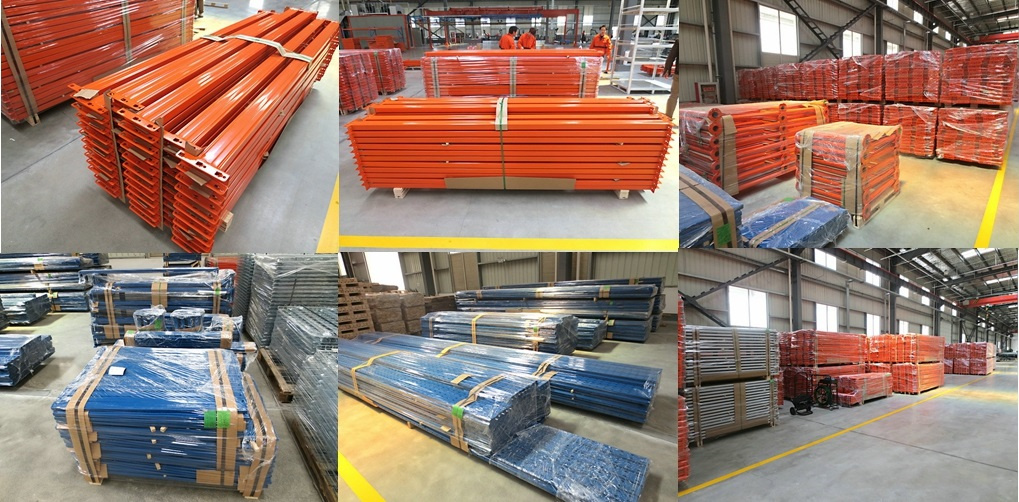

Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.

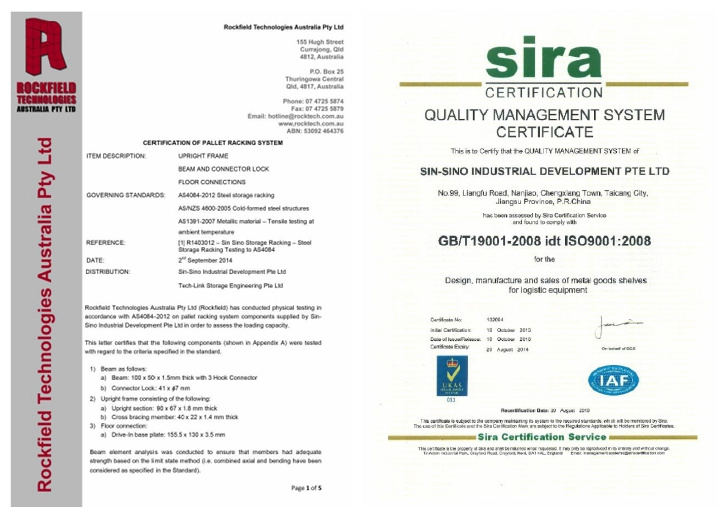

Certificates: ISO & AS4084
ABOUT SIN-SINO
Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.
Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forwards to being part of your success
