Factory Price Industrial Double Deep Pallet Rack
| Price: | US $ 189-255/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | UNPR-1 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Surface Finished: | Power Coating/Galvanized |
| Upright: | 80*60*2.0/90*68*2.0/100*68*2.0mm |
| Box Beam: | 80*60*2.0/90*68*2.0/100*68*2.0mm |
| Row Bracer: | 40*24*1.5/40*34*1.5 mm |
| Certificates: | ISO900, Ohsas18001, SGS. |
| Design: | Free and Professional Design |
| Custom: | Yes |
| Brand: | Union |
| Export Markets: | Global |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Weight: | 500-5000kg |
Product Description

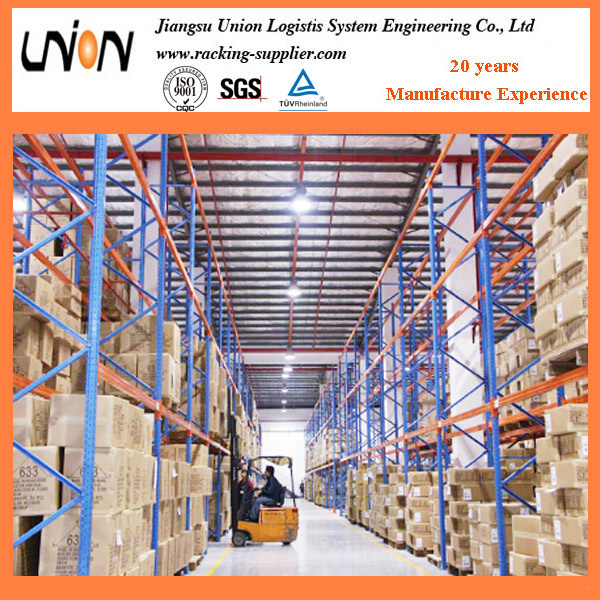

Selective Pallet Rack for warehouse storage
pallet rack, heavy duty racking, selective pallet rack, adjustable pallet rack
Description:
Beam rack, we also called them pallet rack. It composed by beams and uprights. Pallet Rack is a most useful and cost-effective storage racking system providing direct access to all pallets. It provides high capacity storage, is easily installed and adjusted, and has low equipment and capital costs.
Below is some infomation you should get.
Feature
A. Pallets can be located, accessed and moved individually.
A. Pallets can be located, accessed and moved individually.
B. Rapid handling of almost all types of pallet used goods.
C. Infinitely adjustable and offering a wide range of options and components to accommodate specific needs.
D. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
E. Strength and rigidity prevents compression damage to goods.
F. Bottom level of pallets can be stored on the floor, lowering structure costs.
Loading capacity & Specification
| Loading capacity | 500-4000 kgs UDL/layer |
| Height | 1000-9000mm |
| Depth | 400-1500mm |
| Length | 1500-3300mm |
| Special sizes | available to specific storage needs |
| Upright section | 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. |
| Box beams section | 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc., |
| Adjusted pitch | 50-75mm |
| necessary components | Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components |
Material High-quality steel from BAO Steel Co. Ltd., the largest steel manufacturer in China
Finish Epoxy power coated / Glavanize
Quick Delivery Within 20 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
SGS test Union's racking can be tested by international authority test organization, most of our customers like to be tested by it. It is also a trend of it in the future
Our pallet racking can be design according to your requirements!
Factory Show
Jiangsu Union Logistics System Engineering Co., Ltd
Established in 1995,
Possessing 10 years export experience;
With the strength of Pallet Racking, MID-duty Shelving, Radio Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Our Products: Pallet Racking, MID-duty Shelving, Radion Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Our Products: Pallet Racking, MID-duty Shelving, Radion Shuttle Pallet Racking, ASRS System, Drive In Racking, Cantilever Racking, Mezzanine and Steel Platform, Steel/Plastic Pallet, Wire mesh container and other related storage equipment.
Service
We can offer CAD design service for customer for free charge and give customer technical support
Kindly provide information for quick quotation
- Drawing of racking (if available)
- Dimension of your warehouse (Length X Width X Clear height mm)
- Pallet Size (W*D*H) & loading weight
- How many layers and bays
- The color you want
FAQ
Q: What is your trading terms?
A:
1. ) Payment term: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading. Or L/C.
2. ) Lead time: Normally in 30 days after deposit received.
3. ) Sample policy: Samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4. ) Shipping port: Shanghai China.
5. ) Discounts: We offer discount for large quantity.
Q: How I can delivery my goods?
A:
1. ) Sea Freight: We will update sea freight once we know your sea port where goods will be delivered.
2. ) Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange to deliver the items.
Q: What is your service?
A:
1. ) Your inquiry related to our products or prices will be replied in 24 hours.
2. ) Well-trained and experienced staffs to answer all your enquires in fluent English.
3. ) OEM&ODM, any your customized racks we can help you to design product.
4. ) We have very experienced professional engineers to make best solutions.
Q: How to purchase your product?
A:
Design drawing → Confirm drawing →Quotation → PI → Confirm PI → Arrange 30% deposit →Manufacturer→QC inspect → Pay balance → Shipping
Q: What is your advantage?
A:
1. ) Warranty: Two years warranty, the broken parts will be replaced and sent to you.
2. ) Factory price: Factory direct sale competitive price.
