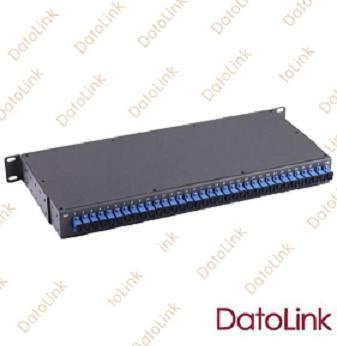

Fiber Optic Splitter Rack for PLC Splitter
| Price: | US $ 25-30/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | DTLSR |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: | 1u, 2u, 19'' |
| Application: | Communication |
| Connection Structure: | Sc |
| Material Shape: | Round Wire |
| Core: | Multicore |
| Brand: | OEM |
| Sheath Material: | PVC |
| Wiring Devices: | ODF |
| Condition: | New |
| Type: | Multi-Mode Fiber |
| Certification: | ISO9001 |
Product Description
Features:Splitting ratio can be customized
Light weight, strong strength
Good anti-shocking and dustproof
Rack dimension can be customized
Easy install
Application:
Fiber optical communication system
CATV system
LAN system
Ordering Information:
1U 19" distribution frame (Aluminum) 1&2X8 Fibers 430mm x 250mm x 43mm
1U 19" distribution frame (Aluminum) 1&2X16 Fibers 430mm x 250mm x 43mm
1U 19" distribution frame (Aluminum) 1&2X32 Fibers 430mm x 250mm x 43mm
2U 19" distribution frame (Aluminum) 1&2X64 Fibers 430mm x 250mm x 86mm
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating wavelength | 1260 ~1650NM | |||||
| Fiber type | G657A1 or customer specified | |||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 |
| Loss uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
| Polarization Dependent loss (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
| Return Loss (dB) (P/S Grade) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability (-40~85 ºC)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (ºC) | -40~85 | |||||
| Storage Temperature (ºC) | -40~85 | |||||
| Dimension for white box (cm) | 23.8*43*4.4 | 23.8*43*4.4 | 23.8*43*4.4 | 23.8*43*4.4 | 23.8*43*4.4 | 23.8*43*4.4 |
| Dimension for black box (cm) | 31*19.9*4.4 | 31*19.9*4.4 | 31*19.9*4.4 | 31*19.9*4.4 | 31*19.9*4.4 | 31*19.9*4.4 |
Ordering Information
| PLC | ×××× | × | × | × | × | × | × |
| Port | Input Iigtal Style | Input Connector | Output Iigtal Style | Fiber Length | Output Connector | Package Type | |
| 0102=1×2 | 0=bare fiber | 0=none | 0=bare fiber | 0=0.5m | 0=none | A=4×4×40 | |
| PLC | 0104=1×4 | 1=900um | 1=SC/PC | 1=900um | 1=1m | 1=SC/PC | B=4×7×50 |
| 0108=1×8 | Loose tube | 2=SC/APC | Loose tube | 2=1.5m | 2=SC/APC | C=4×12×60 | |
| 0116=1×16 | 2=900um | 3=FC/PC | 2=900um | 3=2m | 3=FC/PC | D=4×7×60 | |
| 0132=1×32 | Jacket | 4=FC/APC | Jacket | 4=3m | 4=FC/APC | E=6×20×80 | |
| 0164=1×64 | 3=2.00 mm cable | 5=ST | 3=2.00 mm cable | 5=4m | 5=ST | F=100×80×10 | |
| 1128=1×128 | 4=3.00 mm cable | 6=LC | 4=3.00 mm cable | S=Special | 6=LC | G=120×80×18 | |
| 0202=2×2 | 7=LC/APC | 7=LC/APC | H=140×115×18 | ||||
| 0204=2×4 | 8=E2000 | 8=E2000 | I=19# 1U Rack | ||||
| 0208=2×8 | 9=Special | 9=Special | G=Insert Plate | ||||
| 0216=2×16 | K=Tray Type | ||||||
| 0232=2×32 | S=Special | ||||||
| 0264=2×64 | |||||||
| 02128=2×128 |
