Filo Industrial Warehouse Drive in Pallet Rack Heavy Duty Storage System
| Price: | US $ 1kg |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Ton |
| Pay Type: | L/C,T/T |
| Prod Model: | DR-01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: | ISO9001, As4084, CE, SGS |
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Closed: | Open |
| Development: | Conventional |
| Serviceability: | Common Use |
| Height: | up to 12m |
| Weight: | up to 8000kgs |
Product Description

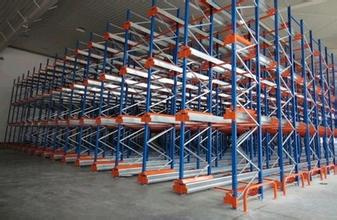

SIN-SINO Drive-In Pallet Racking
SIN-SINO Drive-In Pallet Racking storage systems allow selection of a batch of pallets in storage. Rows of pallet storage lanes are arranged with operating aisles between them, to allow transport and access to storage lanes.
Storage lanes can be 2,to any number of pallets deep. However, lanes over 7 pallets deep should be carefully considered to minimised pallet handling difficulties, ensure pallet turnover and storage position losses are minimised and safety is not jeopardised.
Aisle widths are determined by handling equipment requirements.Storage is in a Last-In-First-Out(LIFO) arrangement.
The floor space utilisation is based on a specific application. Floor space utilisation varies considerably with application to application. Sin-Sino would be pleased to provide this data after a solution is designed to suit a customer's needs.s.
Detail:
| Load Capacity: | 1000-4000Kg/Lever | Surface Treatment: | Powder Coating |
| Color: | Customizable | Hieghth/Depth: | Customizable |
| Dimensions: | Customizable | Metal: | High Quality Cold Rolled Steel |

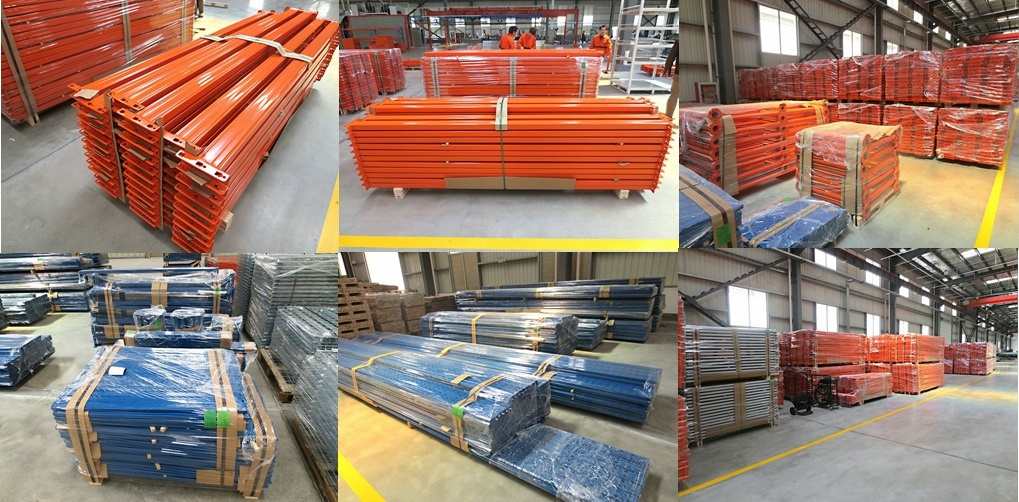

Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.
Certificates: ISO & AS4084
Specification:
| Specifications of Beam | |||||
| Type | Item | Height(mm) | Width(mm) | Thickness(mm) | |
| P style Pipe(Step Beam) | 1 | 50 | 30 | 1.5 | |
| 2 | 60 | 40 | 1.5 | ||
| 3 | 80 | 50 | 1.5 | ||
| 4 | 110 | 70 | 1.5 | ||
| 5 | 140 | 70 | 1.5 | ||
| 6 | 160 | 70 | 1.5 | ||
| Box Beam | 7 | 80 | 50 | 1.5 | |
| 8 | 100 | 50 | 1.5 | ||
| 9 | 110 | 50 | 1.5 | ||
| 10 | 120 | 50 | 1.5 | ||
| 11 | 140 | 50 | 1.8 | ||
| 12 | 160 | 50 | 2.0 | ||
| Specifications of Upright | ||||
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2.0 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2.0 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2.0 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3.0 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3.0 | 21000 |
