Five Level Parking System Bike Rack
| Price: | US $ 5500/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | Large Carport |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Clamp Arm Motor: | 1.5kw |
| Sliding Motor Of Conveyor: | 0.75W |
| Sliding Motor Of Clamp Arm: | 0.2W |
| Clamp Arm: | 30m/Min |
| Sliding Speed Of Clamp Arm: | 15m/Min |
| Sliding Speed Of Conveyor: | 45m/Min |
| Power: | 3 Phase 5 Wire 380V 50Hz |
| Type: | Parking Lift |
| Certification: | CCC |
| Working Mode: | IC Card, Button and Remote Control System |
| Design: | Multi |
| Voltage: | 380V |
Product Description

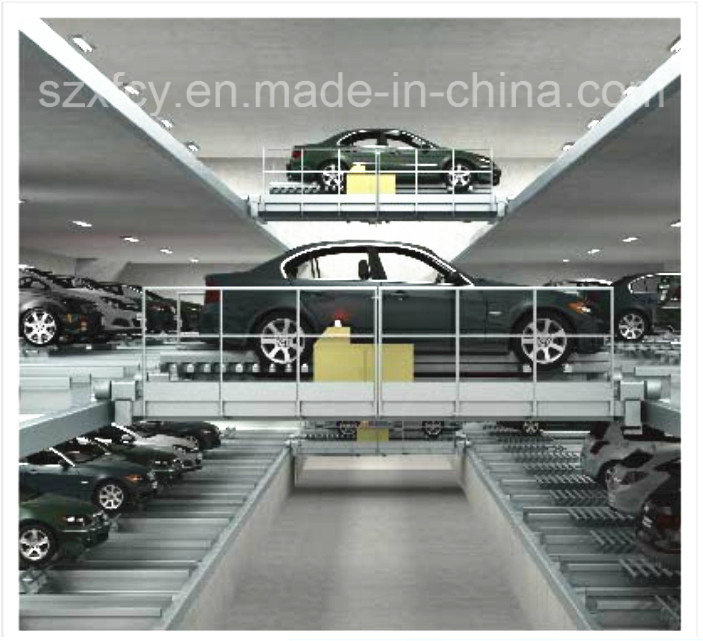

Five level automatic parking system
Operating principle
This equipment parks car automatically to the multi-level parking space by elevator's vertical lift and the reciprocating movement of conveyor on same level. And cars turned around by the rotation pallet in parking room, ensuring the forward of car is outside, conveniently driving car in and out.
The park/unpark process can be seen in below diagrams.
Parking Diagram
The car in red color is to be unparked. The equipment need to finish follow actions to unpark the car.
1. The convey pallet which in the same level with the red car slide to the fully back of the red car, then the conveyor convey the red car to the pallet.
2. The convey pallet with the red car slide to the adjacent position with the elevator, then put the car on elevator.
3. The elevator descends down to the exit of the car.
4. Convey pallet convey the car to the parking room and the rotation pallet rotte to turn the car, to ensure
the front of the car is outward, then the red car finish unparking...
Products Features:
1. There's no need of ramp, so that can save land area and the parking capacity density is big to take full use of space.
2. Park/unpark automatically and easily, can park/unpark by a button press.
3. The most suitable building place is underground parking garage with long laneway and not too many levels.
4. Equipped with safety protection device, ensure safe and reliable to avoid various accidents.
5. Adopted photoelectric safety inspection to control the dimension and quantity of parking cars.
6. Generally do not need forced ventilation and there's no large area lighting, energy saving...
Applicable occasion
The most suitable place for this system is the large and medium-sized buildings of public facilities, it can be designed according to the vertical and horizontal comulmn...
Our factory equipment
Remarks: Please send us your land layout, our engineer will design drawings and provide best parking solutions for you~!
| Car size | Length*width*height |
| Mm | <=5200*1950*1550 |
| Car weight | <=2000kg |
