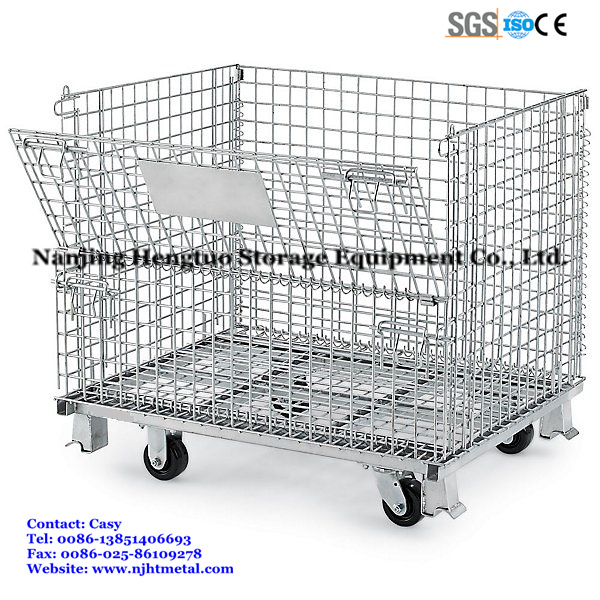

Foldable Metal Wire Mesh Storage Container with Casters

Prod Model:	selective
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	800mm
Width:	600mm
Height:	640mm
Capacity:	2000kg
Stackable:	Yes
Mesh Sapce:	50*50, 50*100mm
Wire Dia:	6.0, 5.0, 4.8mm
ODM:	Yes
Material:	Steel ;Metal
Certification:	CE, SGS, ISO9001, RoHS
Type:	Foldable Storage Cage
Mesh Spacing:	50mm?á100mm
Feet Height:	100mm
Size:	500mm-1200mm
Load Capacity:	up to 2000kg
Wire Diameter:	5.0-6.0
Wire Diameter:	5.0-6.0

Product Description

Steel Collapsible Wire Mesh Container / Storage Box for Pallet Rack



Features:

1. Wire container is made of strong steel, welded with U channel steel at the bottom to guarantee the Load capacity;

2. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;

3. Wire container use bolt structure, providing easy access to product even when they are stacked;

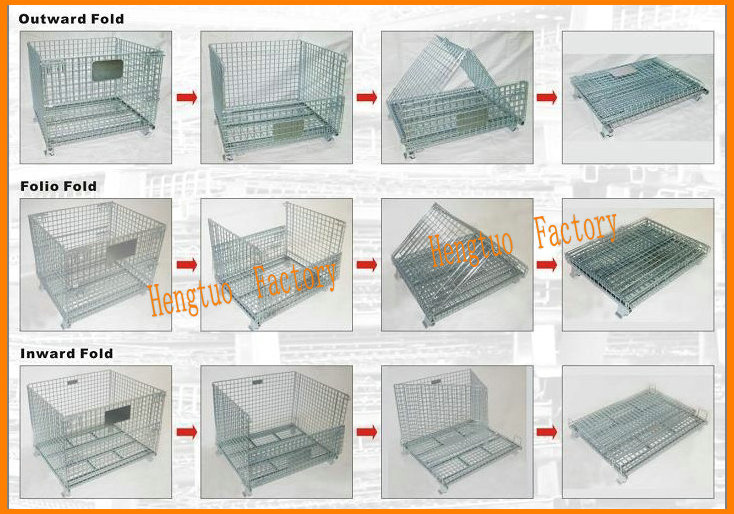

4. Stackable: Wire container can be stacked to 4 layers, achieve three-dimensional storage; When not used, wire container can be collapsed and piled to save space;

5. With united specification and fixed capacity, it's convenient for identification of goods and inventory Count;

6. Casters can be equipped to make it convenient for move;

7. Cardboard or Wantong board can be equipped in the wire container to protect the surface of goods During storage and transportation;

8. Worked with hydraulic trucks, forklifts, elevators and other handling equipments, simple operation

9. Euro-style wire container is widely used in transportation, loading & unloading, storage and other logistics links, low cost and high efficiency.

Specification

ype	Layers	External Size(mm)			Diameter (mm)	Wire Mesh (mm)	Capacity (kg)	Volume (m3)	Foot Height (mm)
		L	W	H
A-5	4	1000	800	840	6.0	50x50	1200	0.52	100
B-5	4	1000	800	840	6.4	50x50	1500	0.52	100
B-5 1/2	4	1000	800	500	6.4	50x50	1000	0.26	100
C-5	4	1000	800	840	4.8	50x50	600	0.52	100
S-5	4	1000	800	840	6.4	50x100	1000	0.52	100
F-5	4	1000	800	840	6.0	50x100	1000	0.52	100
A-7	4	1200	1000	890	6.0	50x50	1500	0.84	100
B-7	4	1200	1000	890	6.4	50x50	2000	0.84	100
S-7	4	1200	1000	890	6.4	50x100	1000	0.84	100
F-7	4	1200	1000	890	6.0	50x100	1000	0.84	100
C-7	4	1200	1000	890	4.8	50x50	500	0.84	100
A-9	4	1200	800	840	6.0	50x50	1200	0.65	100
B-9	4	1200	800	840	6.0	50x50	1500	0.65	100
A-3	4	800	600	640	6.0	50x50	800	0.22	100
C-2	4	800	500	540	4.8	25x50	500	0.19	100
Other specifications can be customized.

Terms and Condtions :
1). Price terms: EXW/FOB/CNF/CIF.

2). Payment: 30% by T/T, balanced by T/T before shipment. Other payment terms can be negotiated for big order.

3). Package: Export standard package suitable for tough handling and sea transport.

4). Delivery: Goods to be ready within 10~20 days depending on order quantity.

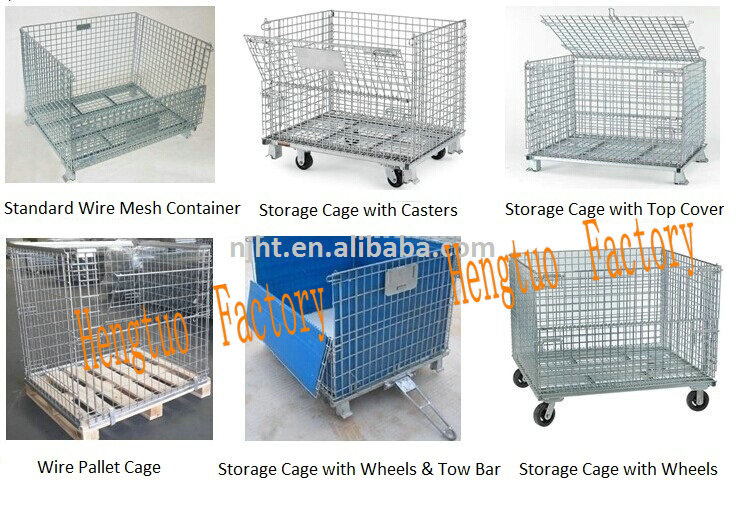

More Kinds:

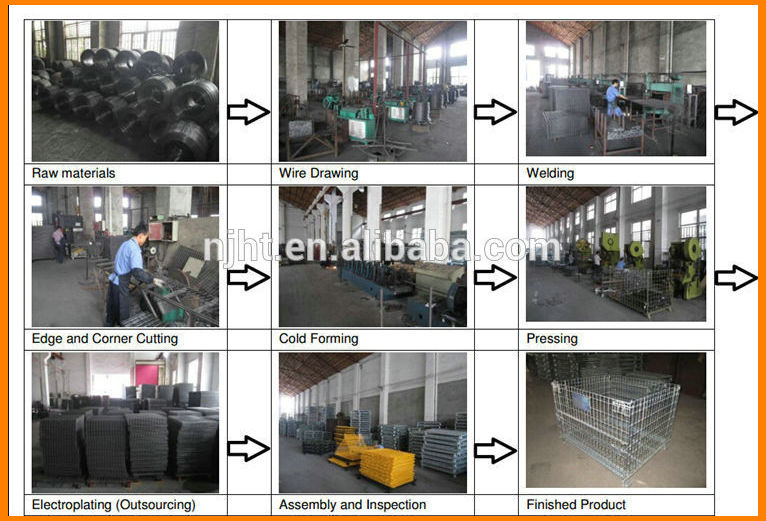

Production Process:




Our Services:


We can provide sample service to each of our clients, as it is the best way for you to know us, to check our products' quality and our service, and to continue our cooperation in the further.

FAQ
1Q :Are you a factory or trading company?
A: We are a factory. Wire Mesh Container is one of our featured products.
2Q :Where is your factory located? How can I visit there?
A: Our factory is located in Shanghu Industrial Park, Jiangning Town, Jiangning District, Nanjing, China. You can fly to Nanjing airport directly. You are warmly welcome to visit us whenever you are available!
3Q :What is the raw material of your products?
A: As general, the raw material of steel code is Q235. Other steel is also available to clients' requirements.
4Q :What is the term of payment?
A: As general, T/T, 30% payment in advance and balanced before shipping.
5Q :What is the delivery time?
A: It depends on the order quantity. For one 40ft, it usually takes 7-10 days.
6Q :Which port will be used as loading port?
A: Nanjing port, the closest port to us, is recommended strongly as loading port. Shanghai port is also available.
7Q :May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
8Q :Are samples available?
A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
9Q :Is Galvanized Finish available or powder coated?
A: Galvanized or powder coated finish is upon your choice.
10Q :How can I get your quick quotation for wire mesh container?
As usual, you should provide us the following information:
      A. External size or Internal size(L*W*H)
      B. Wire Diameter
      C. Mesh Spacing
      D. Loading Capacity

Certificate:


We can provide our clients good quality products with a competitive price, if you are interested in ordering some logisctic equipments, pls feel free to contact us, we have factory in Jiangsu China, so we are sure we can privide a good price to you!
