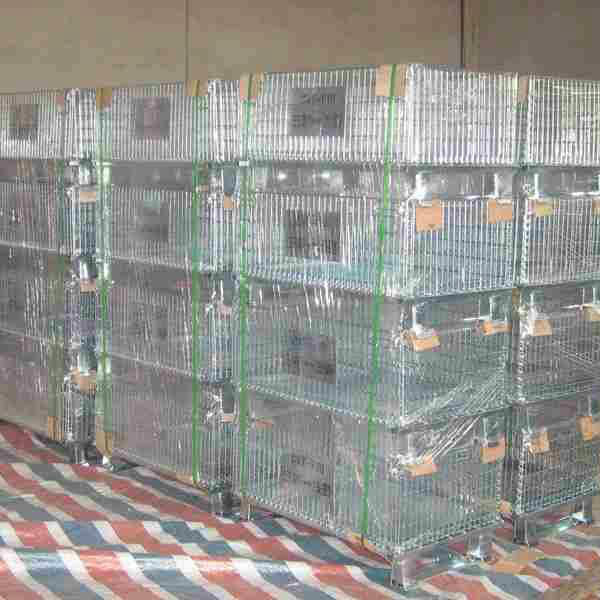

Foldable Wire Mesh Galvanized Container for Warehouse Storage

Prod Model:	Selective
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	800mm
Width:	600mm
Height:	640mm
Capacity:	2000kg
Stackable:	Yes
Material:	Steel ;Metal
Wire Dia:	6.0,5.0,4.8mm
ODM:	Yes
OEM:	Yes
Certification:	CE, SGS, ISO9001, RoHS
Type:	Foldable Storage Cage
Mesh Spacing:	50mm?á100mm
Feet Height:	100mm
Size:	500mm-1200mm
Load Capacity:	up to 2000kg
Wire Diameter:	5.0-6.0
Wire Diameter:	5.0-6.0

Product Description

Foldable Wire Mesh Galvanized Container for Warehouse Storage
1. Details
A. Professional wire mesh box manufacturer
B. We offer wire mesh box of high quality and best price.
C. Long time supply
D. Promptly delivery and good services
E: Material: Steel
F: Surface Treatment: Powder painting or zinc coated

2. CE Warehouse Storage Galvanized Foldable Stacking Wire Mesh Container advantages
A. Welded wire mesh structure: Stable, durable, high loading capacity;
B. Surface treatment: Electro galvanized finish or Powder coated finish is available;
C. Stackable, collapsible, folds flat to save space;
D. Drop gate for easy access when stacked;
E. Easy fork access from all sides;
F. Lowest maintenance cost;
G. Most sizes and capacity are available.

3. Wire Mesh Container features
A. Stackable: Can be stacked to 4 layers, achieve three-dimensional storage;
B. Collapsible: Save space when not used;
C. Made of strong steel, welding with U channel steel at the bottom to guarantee the load capacity;
D. Use bolt structure, easy to open the door and fetch goods;
E. Surface treatment: Galvanization; Bright and clean, corrosion resistance, long service life;
F. Operated with hydraulic trucks, forklifts, elevators and other handling equipment, simple operation, widely used.

4. Foldable Wire Mesh galvanized Container Application
A. Suitable for electron, medicine, education, light industry and library areas.
B. Applied with conveying equipment which is convenient to transportation, tumover and storage.

5. Packing & Delivery
A. Packing: Packed in bundles and stretch films outside or according to your requirement.
B. Delivery: Within 10-20 days according to quantity

6. Contact Information
Jason Zhang
Tel: 0086-025-85363177,
Fax: 0086-025-86109278

Type	Layers	External Size(mm)			Diameter (mm)	Wire Mesh (mm)	Capacity (kg)	Volume (m3)	Foot Height (mm)
		L	W	H
A-5	4	1000	800	840	6.0	50x50	1200	0.52	100
B-5	4	1000	800	840	6.4	50x50	1500	0.52	100
B-5 1/2	4	1000	800	500	6.4	50x50	1000	0.26	100
C-5	4	1000	800	840	4.8	50x50	600	0.52	100
S-5	4	1000	800	840	6.4	50x100	1000	0.52	100
F-5	4	1000	800	840	6.0	50x100	1000	0.52	100
A-7	4	1200	1000	890	6.0	50x50	1500	0.84	100
B-7	4	1200	1000	890	6.4	50x50	2000	0.84	100
S-7	4	1200	1000	890	6.4	50x100	1000	0.84	100
F-7	4	1200	1000	890	6.0	50x100	1000	0.84	100
C-7	4	1200	1000	890	4.8	50x50	500	0.84	100
A-9	4	1200	800	840	6.0	50x50	1200	0.65	100
B-9	4	1200	800	840	6.0	50x50	1500	0.65	100
A-3	4	800	600	640	6.0	50x50	800	0.22	100
C-2	4	800	500	540	4.8	25x50	500	0.19	100
Other specifications can be customized. Contact: Jason Zhang
