Prod Model: |
G255/40/100 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Name: |
Galvanized Grating |
Origin Of Place: |
China Hebei |
Surface Treatment: |
Hot DIP Galvanization |
Bearing Bar Type: |
Flat Bar, Serrated Bar, I Type |
Certificate: |
ISO9001 |
Manufacturer Type: |
Welded |
Ended Type: |
Closed Open |
Dimension Size: |
1m*6m 1m*5.8m |
Trade Type: |
OEM Manufacturer |
Material: |
Steel |
Structure: |

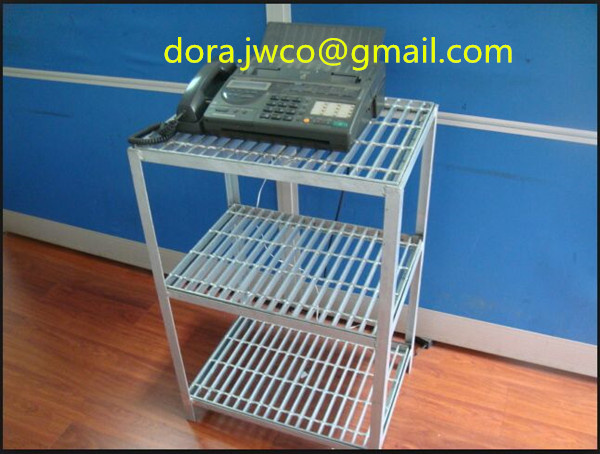

Shelf |
Mobility: |
Adjustable |
Height: |
0-5m |
Weight: |
500kg |
Closed: |
Open |
Development: |
New Type |
Serviceability: |
for Special Purpose |
Product Description
mobile //008615122904795
1.what is steel grating ?( steel platform grating) -- Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.
2.steel grating specification- steel platform grating
panel size available(black grating): 1000x5800mm or 1000x6000mm
Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) |
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 |
30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 |
40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 |
60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) |
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 |
30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 |
40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 |
60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |

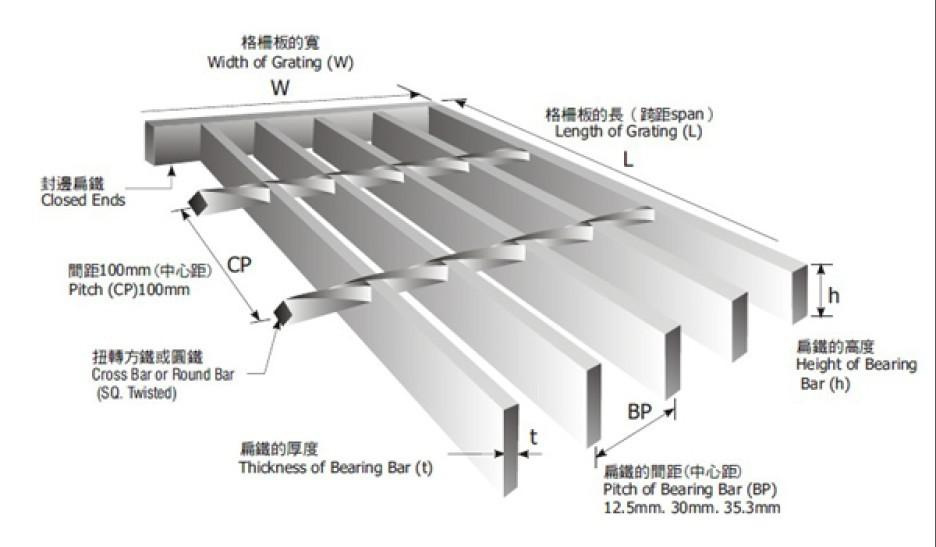

3. steel grating platform introduction-- steel platform grating
Type bearing bar:i TYPE, Serrated type,plain type
tolerance of standard steel grating
Surface treatment: mill finish(untreated),hot dip galvanized, painted,PVC
Bearing bar type | Flat bar | I bar | Serrated bar | |
Cross bar type | Twisted bar | Round bar | flat bar | |
Production process | welded | Pressure locked | | |
Surface treatment | Self-colour | Galvanized | painted | |

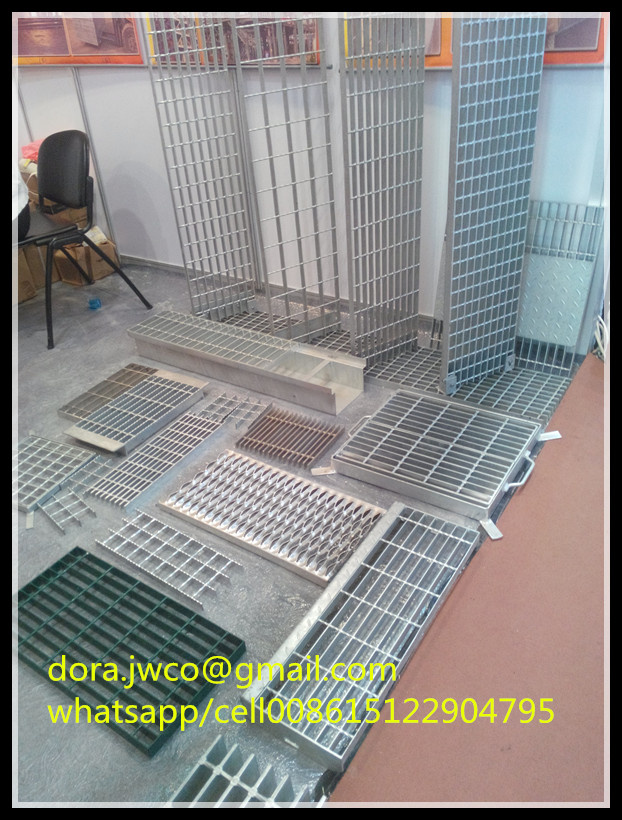

application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence | | |
4.steel grating standard-- steel platform grating
Steel Grating Standard |
| Steel Grating Standard | Steel Standard | Galvanizing Standard |
China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
Australia Standard | AS1657 | AS3679 | AS1650 |
Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
6.our company profile
Hebei Jiuwang Metal Wire Mesh Co.,Ltd.(original Anping County Jintai Metal Mesh Co.,Ltd.).Established in 1992,our company is a manufacturer of large steel structure and steel gratings,integrating development,production and distribution.The company register capital is 10,080,000 Yuan,and take an area of 34,680 square meters.In 2003,we have got the ISO9001:2000 certification by BQR.
7.CHOOSE US BECAUSE WE HAVE

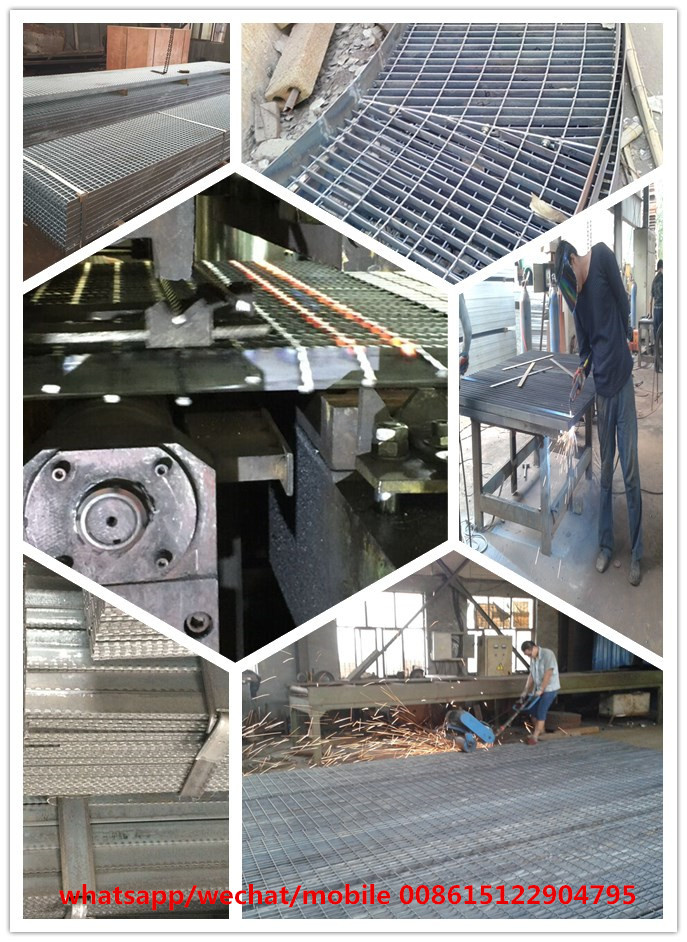

1.Independent automatic steel grating product line with huge workshop and devices to ensure delivery time.
2. Over 20 years' experience in hot-dipped galvanized steel grating manufacture
3. Quality guarantee under the control of ISO9001 2000 quality system
4.Professional technology and design teams, chart as customers' requirements.
Hebei Jiuwang Metal Mesh Manufacture Co., Ltd (BILLION China INTERNATIONAL GROUP) covering 10000 m2 area, , is one of the biggest manufacturer and exporter of Flooring steel grating and stanchions (or rails)in north of China Started from 1992, In Sep. Of 2003, we successfully passed ISO9001: 2000 international quality management system certificate.
Steel gratings are widely used in petroleum, chemical, transport, power, mine, communication, civil construction, rubber, breeding and other industries. 5 production lines makes more than 2000 Tons flooring grating every year, Our Hot-DIP-Galvanized treatment workshop can satisfy 6-10 meters black steel grating.
As for the fine technician of steel grating, grating fence, trench over and stair treads, and Hot-DIP galvanized surface treat, we built good friendship with customers from USA, Europe, Middle East, Japan, Korean, Australia and Canada.
As customer request, we can also offer field fence (grassland fence), T post and Y post for Middle East, America and Australian countries application
We would like to establish good business relationship with our old and new customers on the basis of sincere cooperation and mutual benefit.
