Galvanized Steel Building Workshop, Wareshouse, Hanger, Pheasantry
| Price: | US $ 30-50/Square Meter |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 100/Square Meter |
| Pay Type: | L/C,T/T |
| Prod Model: | JDCC-S1507 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Galvanized Steel Building Workshop , Wareshouse , |
| Brand Name: | Jdcc |
| Material: | Galvanized Steel |
| Use: | Carport, Hotel, House, Kiosk,Booth, Office, Sentry |
| Size: | Customized |
| Window: | PVC or Aluminium Alloy Window |
| Door: | Sliding Door or Rolling Door |
| Wall Pane: | EPS/PU/Firberglass/Rockwool Sandwich Panel & Singl |
| Advantage: | Easily Installation |
| Certificate: | ISO:9001 |
| Type: | Light Section Steel |
| Application: | Steel Fabricated House |
| Forming: | Hot-Rolled Steel |
| Standard: | GB |
| Member: | Steel Column |
| Trademark: | Quality Carbon Structural Steel and Alloy Structural Steel |
| Connection Form: | Bolt Connection |
| Carbon Structural Steel: | Q235 |
| Residential Wall Structure: | Bottom Wall Beam |
| Type Of Steel For Building Structure: | High-Strength Steel |
Product Description
galvanized steel building workshop , wareshouse , hanger , pheasantry
steel structure workshop Introduction:
The load bearing parts for steel structure workshop are mainly steel structures, including steel columns, steel beams, steel structural basements, bracing systems for wall and roof. Steel workshops are divided into Light Steel Workshops and Heavy Steel Workshops. The Main Structure are usually made of Q345 Steel while the Purlins and Bracing System are made of Q235 Steel. They are the most common steel materials used for steel structure in China.
Advantages of Steel Structural Workshop:
1).Large span for great strength with light deadweight;
2).Short finishing time and low cost;
3).Fire proof and rust proof;
4).Convenient to assemble or disassemble.
steel structure workshop Technical Parameters:
1.Main Structure: Steel Welded H Section
2.Purlin: C Section Channel or Z Section Channel
3.Roof Cladding: Sandwich Panel or Corrugated Steel Sheet with Fiber Glass Wool Coil
4.Wall Cladding: Sandwich Panel or Corrugated Steel Sheet
5.Tie Rod: Circular Steel Tube
6.Brace: Round Bar
7.Column & Transverse Brace: Angle Steel or H Section Steel or Steel Pipe
8.Knee Brace: Angle Steel
9.Wrapping Cover:Color Steel Sheet
10.Roof Gutter: Color Steel Sheet
11.Rainspout: PVC Pipe
12.Sliding Sandwich Panel Door or Metal Door
13.Windows: PVC/Plastic Steel/Aluminum Alloy Window
14.Connecting: High Strength Bolts
Main parts and materails of steel structure workshop :
| No. | Ltem | Spec. | Grade | Unit. |
| 1 | Main Steel System | |||
| Main Steel Frame | Q345B | T | ||
| Manufacture charge | T | |||
| 2 | Secondary part Steel system | |||
| Roof purlin | C180*70*20*2.5 | Q235B | T | |
| Wall purlin | C180*70*20*2.5 | Q235B | T | |
| Brace between column, Horizontal support | Angle steel Φ20 | Q235B | T | |
| Knee bracing | Steel Angle L50*4 | Q235B | T | |
| Tie bar | Square tubeΦ114*2.5 | Q235B | T | |
| Support bar | round tubeΦ32*2.5 | Q235B | T | |
| Brace between purlin | round barΦ12 | Q235B | T | |
| 3 | roof System | |||
| Roof panel | 0.5mmthickness corrugated steel sheet V820 | m | ||
| Skylight panel | 1.2mm thick | m | ||
| Standard Parts | Self-tapping screw,sealing tape,sealant | m | ||
| Non-standard Parts | Colored profile parts for ridge,roof | m | ||
| Gutter | m | |||
| Downpipes | m | |||
| 4 | Wall System | |||
| wall panel | 0.45mm thick corrugated steel sheet V820 | m | ||
| Standard Parts | Self-tapping screw,sealing tape,sealant | m | ||
| Non-standard Parts | Colored profile parts for edge cover,flashing | m | ||
| Door | Colored steel panel door | m2 | ||
| Window | Plstic Steel Window | m2 | ||
| Awning | m2 | |||
| 5 | Fastners | |||
| Foundation bolts | M24x70 | SET | ||
| High strength bolts | M20 | SET | ||
| Common bolts | M12 | SET | ||

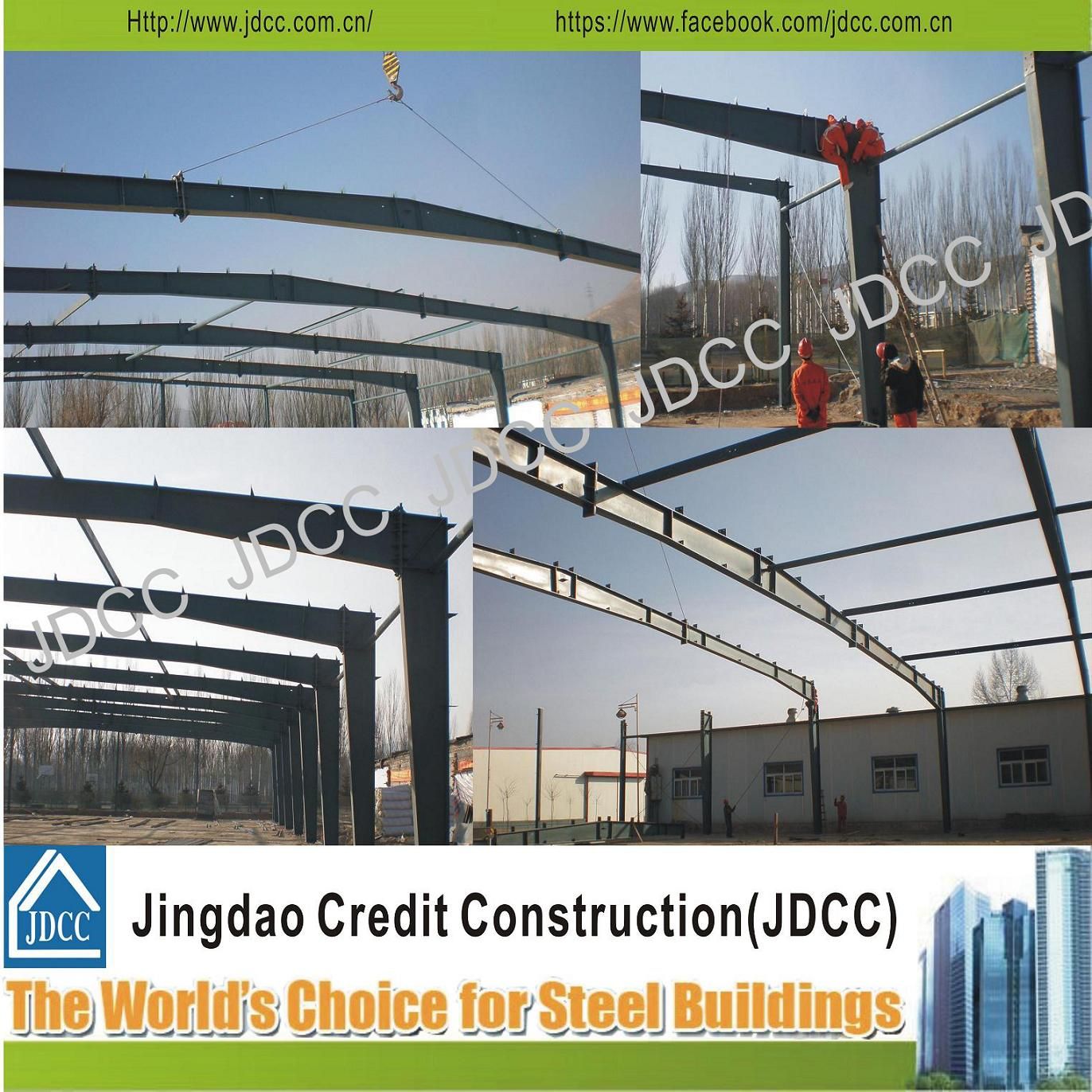

steel structure workshop Products Display :
Jingdao Credit Construction (Beijing) Company Limited. (abbreviated as JDCC) is a professional enterprise specialized in designing, manufacturing, marketing and construction high quality steel structure, prefabricated house and container house. We have professional steel structure engineering contracting first class qualification, and certified ISO-9001: 2000 quality system authentication as well.

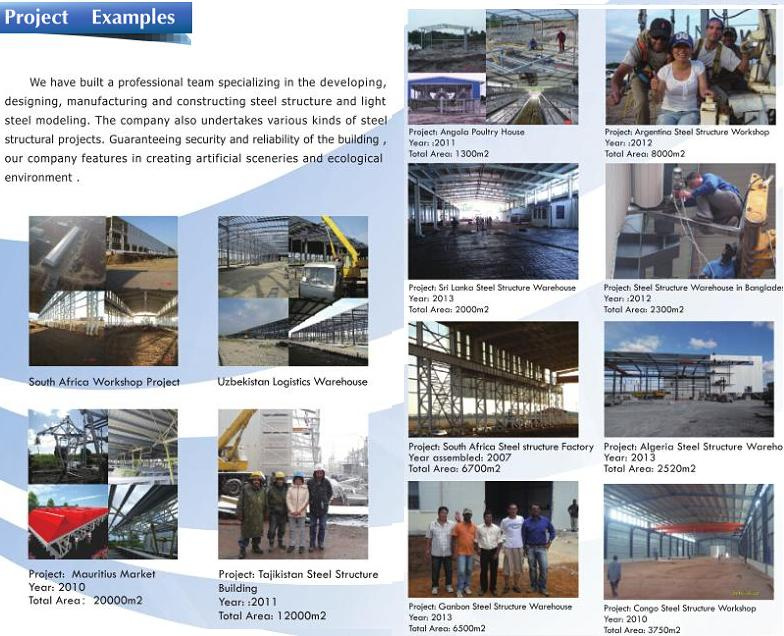

The Group established in 1996, there are 1000 employees including 5 registered engineers, 36 senior engineers and 120 professional technicians. Up to now, we have successfully undertaken and operated hundreds of international projects in more than 76 countries around the world.
Our products are exported to North and South America, Europe, Africa, Oceania and many Asian Countries and regions. With the ideas of "Credit builds brand", we have already established good relations with many foreign clients.
Based on the company spirit of "Credit, Professionalism, Cooperation, Mutual benefits", JDCC is building up a comprehensive industrial chain system gradually and making great efforts to supply our quality products and perfect after sales service to the world clients.
