Price: | US $ 45-70/Set |
---|---|
Min Order: | 50/Set |
Pay Type: | L/C,T/T |
Prod Model: | HML-M1 |
---|---|
Company Type: | China Professional Manufacturer |
Exterior Dimension: | 1395lx1060wx310h mm |
Post: | 1200lx60wx2.5 mm |
Loading Capacity: | 1500 Kg |
Finish: | Hot DIP Galvanized |
Quantities: | 220 PCS |
Product Warranty: | 1 Year |
Product Shelf Life: | up to 3 or 5 Years Against Proper Handling |
Remark: | Customized and OEM Support |
Material: | Steel |
Structure: | Rack |
Mobility: | Combined |
Height: | 0-5m |
Closed: | Open |
Development: | Conventional |
Serviceability: | Common Use |
Weight: | 1500 Kg |

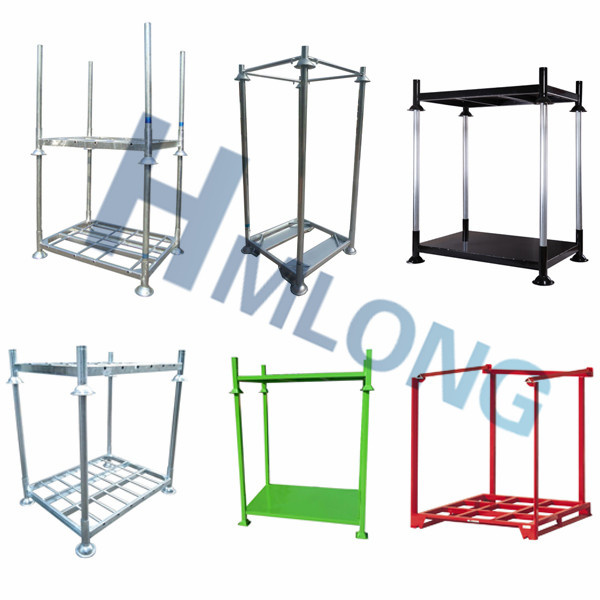

Similar design, defferent sizes | |||||
Model No. | Exterior Dimension | Loading Capacity | Finish | Quantities | Total container |
LxWxH(mm) | kg | sets | |||
M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 220 | 1x40'HQ |
M1-Post | 1200x60x2.5 | Hot dip zinc | 880 | ||
M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
M5-Post | 2000x60x2.5 | zinc | 1020 | ||
M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
Material | Mild steel Q235 | ||||

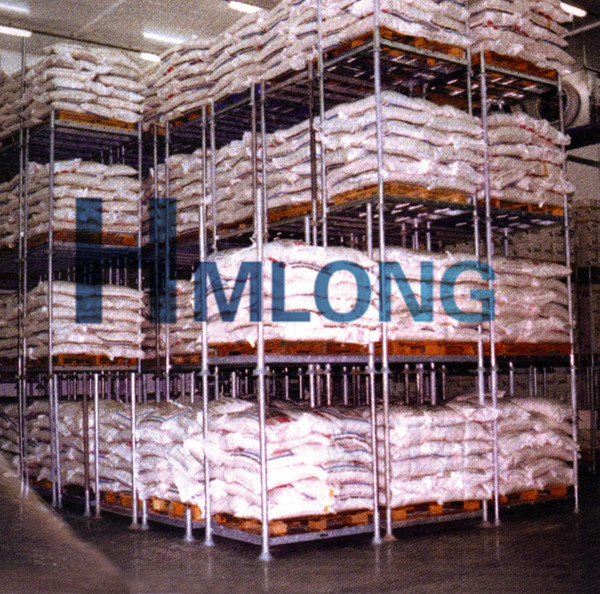

Application area | Warehouse, logistic, recycling, etc. | ||||
Remark | Costomized or OEM support | ||||

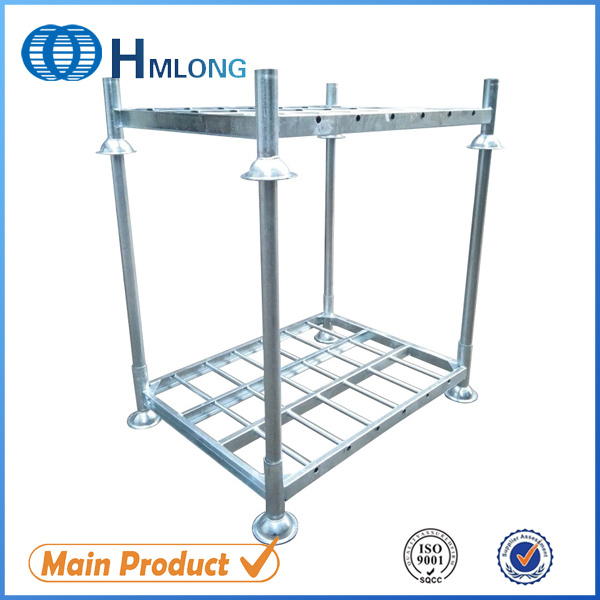

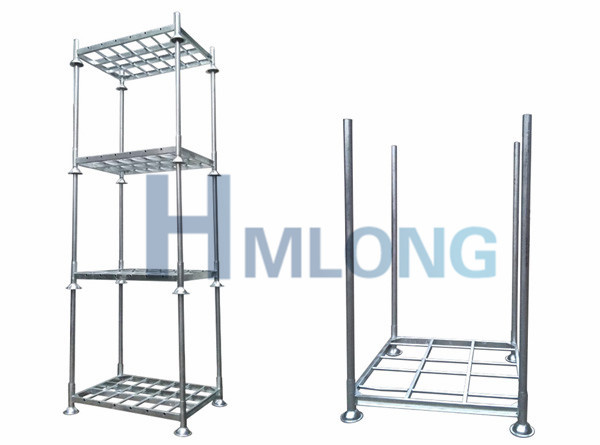

Key features | 1.Strong tubular steel - stack up to 4 high 2.Removable arms - fully collapsible, save space, easy storage when not in use 3.Cup feet - easy stacking 4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use | ||||
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with
standard forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
-- A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor
storage)
B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor
and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder
(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom
size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls
understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it
for me?
--Yes, we can make the best suitable design for you but do need to know the details,
such as a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
--2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that A) Proper handling during operation, correctly forklift
handling while stacking/unstacking B) Overloading is prohibited C) Environment request
indoor, dry and not humid circumstance, do not contact with any corrosive chemical
material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
.
