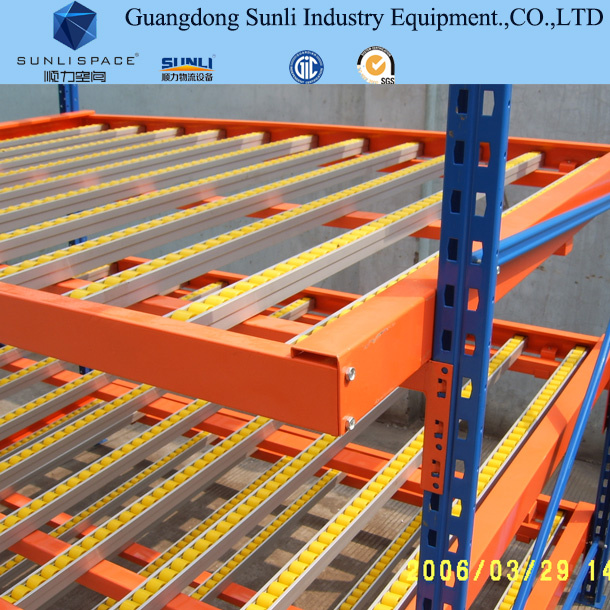

Galvanized Storage Warehouse Carton Flow Self Slide Rack

Prod Model:	SL-GR28
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Galvanized Storage Warehouse Carton Flow Self Slid
Storage:	First in.First out
Depth (Column):	600-3000mm
Height (Column):	1500-3000mm
Load:	up to 500kg
Roller:	Aluminum/Metal/Metal Reinforced
Colour:	Blue+Orange
Custom Size:	Can Be Made According to Your Needs
Surface Treatment:	Powder Coating
Certifications:	CE/SGS/As4084/ISO9001
Usage:	Supermarket
Material:	Steel
Type:	Gravity Rack

Product Description

Galvanized Storage Warehouse Carton Flow Self Slide Rack

Principle
First In First Out
Material flow relying on their own weights.
Main Design
Inclined roller tracks are installed with certain spacing according to your cartons or bins.
It is suitable for cartons and bins of any size.
Plastic fasteners are used for convenient boltless assembling/disassembling on the beams.
The rack system can be used together with electronic tags systems.
Advantages
Space saving.
Efficiency improving.

Utility area
Logistic centers. Picking area. Production station.

Roller track choices
Aluminum, small sheet metal, sheet metal reinforced

Accessories
We could also supply plastic cartons and bins, if customer needed.

Features:
1) Designed with rollers, inclined properly
2) The goods would flow to down according to their own weight
3) Goods can be reserved quickly and fast
4) Goods circulate in a best state, being first in and first out

The shelves are with storage and transport of goods dual function - Dynamic warehousing. Goods inclination by fluent output from the inlet end to the outlet end of the shelf, while the later phase of goods successively get to the position of storage, while achieving FIFO (FIFO).
Fluent shelves can be used in logistics centers and warehouses picking area, can also be used in the production station next to the storage of products, parts, goods with liquidity. Compared with ordinary laminate shelves, not just to provide a space for storage, but more space savings, improve efficiency, It is the best choice of logistics center, and can be used with electronic tags systems.

Specifications:
Column pieces: Depth 600-3000mm height 1500-3000mm
Beam length: According to the size of crates can be, 600-2500mm
Aluminum, small sheet metal, sheet metal reinforced fluent could be choosen. Bolted fasteners for easy loading and unloading.

1. Color: Blue, orange
2. Powder Coating
3. High capacity: Up to 1000kg
4. Easy to install
5. Please offer following rack info for a clear price:

1. Size of storage Gravity Racking (H*W*L)
2. Total or each level of loading capacity
3. Drawing (if available)
4. Size of your warehouse(If available)
5. The fork direction(if load pallet)
6. Levels you would like
7, Max weight of each cargo; Size of each cargo, Moving way

Horizontal bracing
Diagonal bracing
Support bar,
Mesh, wood, steel shelf
Connector
Side cladding
Safe pins
Screw
Protector
Soleplate

Delivery time
Usually 25 days after deposit, Large quantity can be discussed

Item	Floor area use	Load capacity	Max Height	store
Pallet rack/heavy shelf	34%	up to 5T	11m	without limited
Shelf rack	40&	Up to 500kg	Max 3m	Manual picking
Drive in rack	51%	Max 2T	10m	First in, last out
Radio shuttle rack	70%	According to shuttle machine	10m	first in,last out
Gravity	60%	Max 1T	10m	First in, first out
Platform	80%	Max 2T /sq.Mt	2.5mt per floor	without limited
