Prod Model: |
YD-S003A |
Capacity: |
80-120kg/Layer |
Layer: |
1-7 Layers |
MOQ: |
10 PCS |
OEM/ODM: |
Available |
Finish: |
Powder Coated |
Function: |
Shop Display |
Color: |
White/Black/Yellow/Any Color |
Sample: |
Available |
Port: |
Shanghai |
Delivery Time: |
10-15 Days |
Material: |
Steel |
Style: |
Back Hole Style |
Side Number: |
Double Sided |
Weight: |
Middle Weight |
Rotary: |
Fixed |
Usage: |
Convenient Store |
Customized: |
Customized |
Product Description

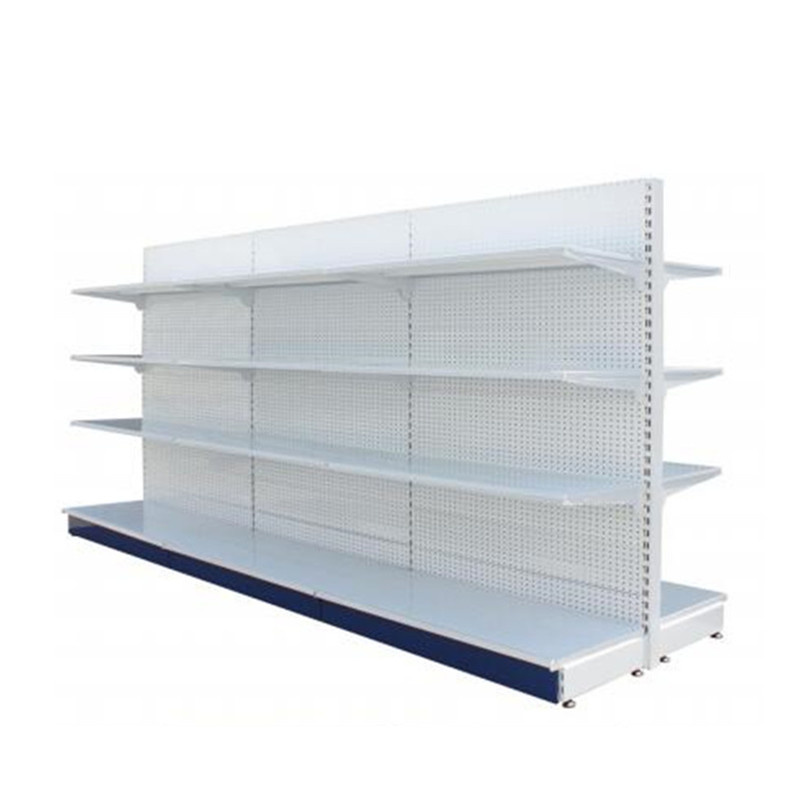

General store items gondola shelving back hole display shelf
Product Description
1). Usual size: L1000 X W1000 X H1800mm, double side, 4 layers
L1000 X W500 X H2400mm, single side, 5 layers
2). Layers for each unit: 3-7 layers are choiceable
3). Weight capability: 50--180kg/layer just according to material choice
4). Each layers are adjustable freely
5). Easy to assemble & dismantle
6). Packing: Upright with bubble foam wrapped, others with carton
7). Different dimension, thickness, color, type are available for us
8). OEM service can be offered
Euro style:
Basic shelving components | Size | options(mm) |
Upright | Section size/ | 30x60/ 30x80/ |
Lenght/ | 1410/1510/1610/1710/1810/1910/2010/2110/2210/2310/2410/ |
|
2510/2610/2710/2810/2910/3010 |
Thickness/ | 2.0/ 2.5 |
Base leg | Length | 200/250/300/370/470/570/670/770 |
Height | 60/110/160/260 |
Shelf | Width | 665/800/1000/1250/1330 |
Depth | 200/250/300/370/470/570/670/770 |
Thickness | 0.7/0.8 |
Wire shelf | Width | 665/1000/1250/1330 |
Depth | 370/470/570 |
Dia | 2.8 |
Preforated backpanel | Width | 665/800/1000/1250/1330 |
Height | 400/500 |
Thickness | 1.0/1.2 |
Back panel | Width | 665/800/1000/1250/1330 |
Height | 100/200/300/400/500 |
Thickness | 0.6/0.7 |
Bracket | Hook number | 2/3/4 |
Length | 200/250/300/ 370/470/570/670/770 |
Thickness | 2.5/3 |
American style:Basic shelving components | Size | options |
Upright | height | 30'' thru 120'' in 6'' (152 mm) incremnets |
|
|
Kicker plate | Length | 2' to 4' in 6'' increments |
Top/bottom spanner | Width | 3' or 4' |
Hardboard Backs | height | 6", 12", 18", 24", 30", 36", 42", 48", 54", 60", 66", 72" |
|
(Pegboard and Marteck) | Length | 2' to 4' in 6'' increments |
Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Angular adjustment | flat, 17° or 30° downslope positions |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Wire shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Angular adjustment | flat, 17° or 30° downslope positions |
Australian style:Basic shelving components | Size | options(mm) |
Upright(single side) | Depth | 200/250/300/320/350/400/450/500 |
Height/ | 1200/1500/1800/2100/2400 |
Thickness/ | 1.5/ 2.0 |
Shelf | Width | 600/630/900/930/1200/1230 |
Depth | 200/250/300/320/350/400/450/500 |
Thickness | 0.5/0.6/0.7/0.8/0.9/1.0 |
Wire shelf | Width | 600/630/900/930/1200/1230 |
Depth | 335/405 |
Dia | 2.7 |
Preforated backpanel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.7/0.8/0.9/1.0/1.2 |
Back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.6/0.7/0.8/0.9 |
Volcano back panel | Width | 600/630/900/930/1200/1230 |
Height | 100/300 |
Thickness | 0.8/0.9/1.0 |
Mesh back | Height | 1200/1500/1800/2100/2400 |
Width | 600/630/900/930/1200/1230 |
Bracket | Hook number | 2/3/ |
Length | 250/300/ 320/350/400/450/500 |
Thickness | 2.0/2.5/3 |
Rear/ front beam | Length | 600/630/900/930/1200/1230 |
Wire fence | Length | 600/630/900/930/1200/1230 |
Asia style:Basic shelving components | Size | options |
Upright | Section | 30*60*2.0mm; 30*80*2.0mm; |
height | 1350;1550;1850;2150;2550mm |
|
|
Kicker plate | Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Flat back panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Pegboard panel | height | 300mm; 150mm |
Length | 500; 650;700;800;900;1000;1100;1200;1300mm |
Thickness | 0.5; 1.2mm |
Shelf | Width | 500; 650;700;800;900;1000;1100;1200;1300mm |
Depth | 200; 300;350;400;450;500;550;600mm |
Angular adjustment | flat, 17° or 30° downslope positions |
Base Shelf | Width | 2' to 4' in 6'' increments |
Depth | 7''-31'' |
Bracket | Length | 200; 300;350;400;450;500;550;600mm |
Thickness | 2.5; 3mm |
Contect Us:
Sales : April
phone number: +86-18255643822
Suzhou Yuanda Business Equipment Co., Ltd. Specializes in the design and production of supermarkets goods shelves, luxurious back board type shelves, heavy warehousing shelves, handcarts, cash counters, PAR value counters, flowing vehicles, storage cages, bookshelves, shoe shelves and other commercial equipment.
Our company use computerization management mode and we introduced advanced assembly lines of spurts model. Our company has a complete set of production equipment and we also have strong technological strength. We combine rich experiences in designing and production of commercial equipment that we have accumulated for many years. To make any progress, we are overcoming our own weak points by learning from strongpoint. We sincerely repay all of our friends for your kindness and supports through our down-to-earth work manner.
We all pay attention to the quality of our products. We not only serve our customers with safe, flexible and high efficiency goods shelves, but also develop our service fields. We setup advanced service contents. For example, we can design new shelves according to customers' Different needs. We can produce various kinds of goods shelves of special specifications. We can also provide whole layout for various kinds of marketplaces.
We will create newer, better, stronger goods shelves, and we also will serve for business circles and make progress with you hand in hand. We are looking forward to establishing long-term business relationships with all clients based on mutual services.
