Gfrp Solid Bottom Cable Tray System

Gfrp Solid Bottom Cable Tray System
Price: Negotiable/Meter
Min Order: 1/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SR-CT
Tensile Strength: 210/75 MPa
Tensile Modulus: 22/10 Gpa
Bending Strength: 302/76 MPa
Bending Modulus: 18.6/7.2 Gpa
Compression Modulus: 19.2/7.2 Gpa
Interlaminar Shear: 24.5 MPa
Impact Strength: 279 Kj/M2
Hardness: 50
Connect Type: with Clamps or No

Product Description

FRP Cable Tray

Overview:
Cable tray system is made up of cable tray, cable tray bend, bracket, corbel, accessories etc. FRP Cable Tray is the use of fiberglass cloth, epoxy resin, curing agent, flame retardant additives such as anti-corrosion material drawn through the heated mold forming, and then Complete with all the necessary fittings such as 3 way tee sections, 4 way cross sections, rising internal and external 90 & 45 degree bends, left & right hand horizontal bends, reducers, couplers, support and anchoring systems.

FRP Fiberglass cable tray is a brand new innovational product,With anti-corrosion, insulation, cost competitive and other notable feature of high-strength, FRP cable tray has become the best replacement for iron cable tray in explosive, acid, alkali environment to run your electrical cable and instrumentation pipe work.

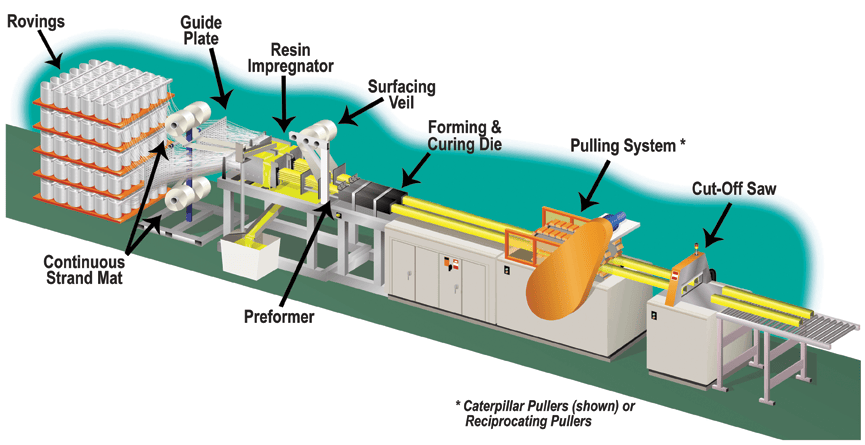

Pultrusion process:
During the pultrusion process, the raw materials are pulled through a heated steel forming die using a continuous pulling device by pultrusion technology.



Classify & structure:

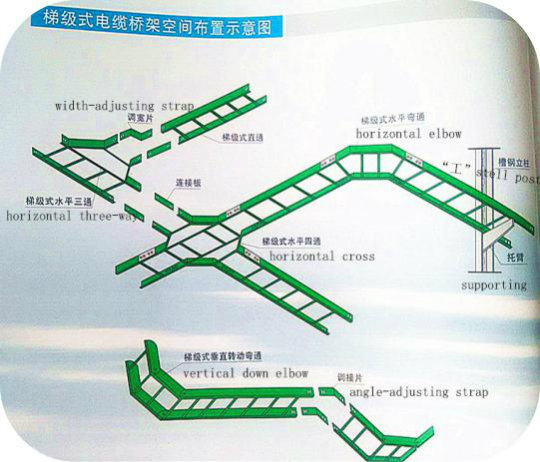

FRP Ladder cable tray
Ladder Cable Tray systems consists of two longitudinal side members connected by individual transverse members, and is designed for use as a power cable or control cable support system.

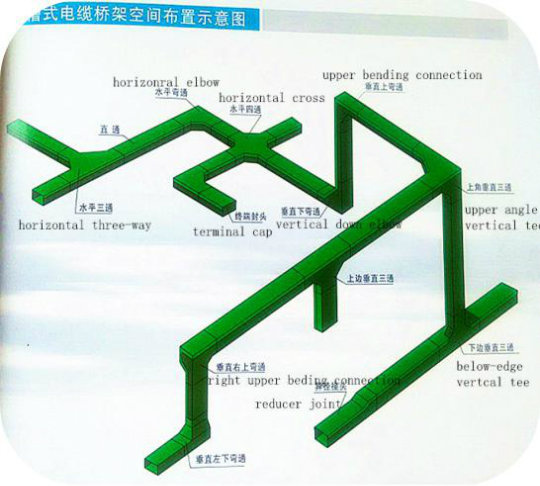

FRP cable trunking
It is a full-closed cable trays, which is applied to the laying of cables, telecommunications cables, thermocouple cables and other highly sensitive system of control cables.

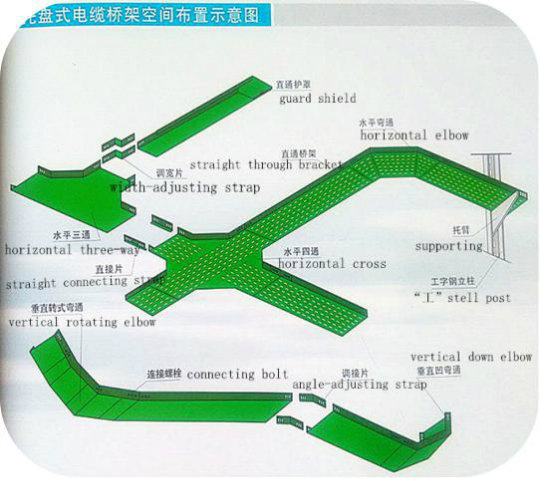

FRP tray type cable tray
It is a structure consisting of bottom (ventilated or solid) with the longitudinal siderails.


Installation:

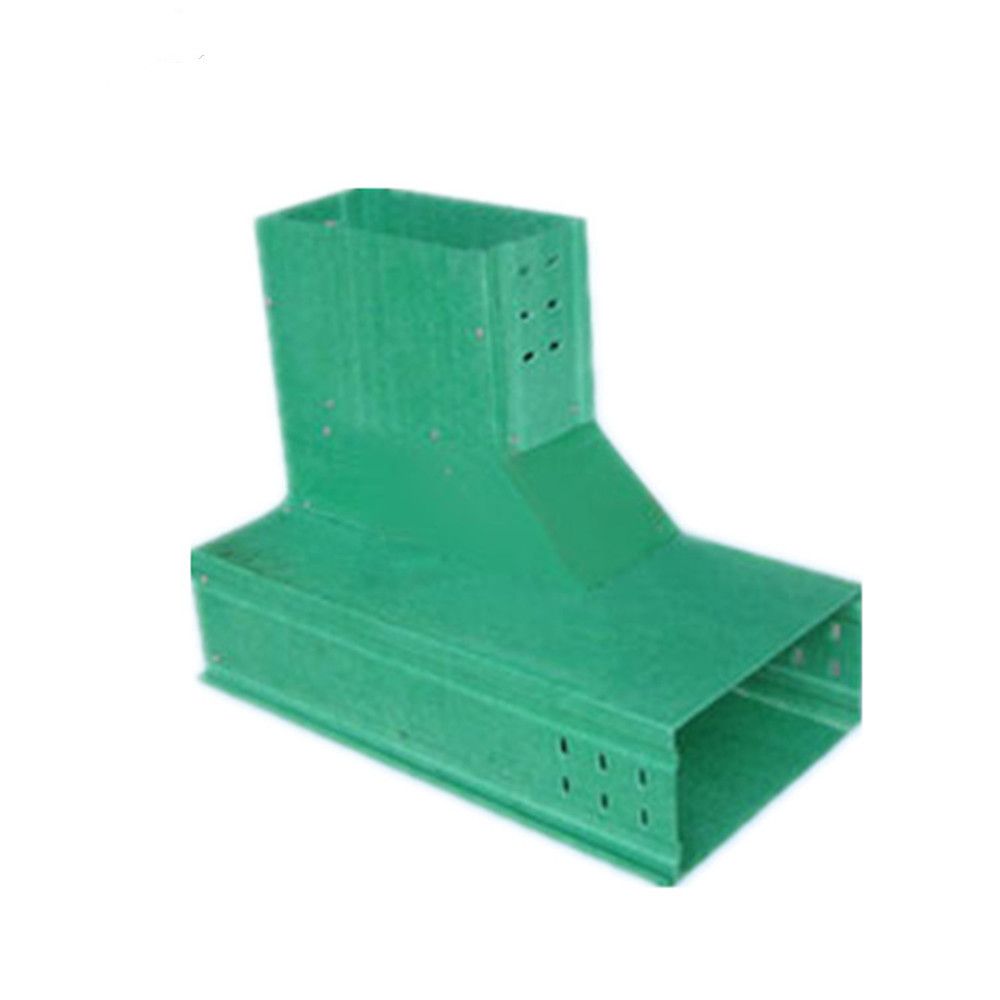

A complete FRP cable tray is composed of straight, horizontal bend, horizontal tee, horizontal cross, straight reducer, left reducer, right reducer, vertical outside bend, vertical inside bend connected with splice plates, clamps, brackets, etc.
OUR FRP Cable Trays are suitable for indoor & outdoor use in all climatic conditions. They may be horizontally laid as in a cable channel along with roof beams. Alternatively FRP Cable Tray may be vertically laid along walls or on structure. The cable Trays should be supported on M S wall bracket or hanger. Separate support should be provided for accessories like elbows, tees cross joints etc. Maximum span between supports should be 2.0 Meters to limit deflection.



Advantages:
1. Low cost, significant cost savings compared to standard traditional tray products.
2. Light in weight, wide range of sizes.
3. Fast heat dispersion.
4. Strong enough to withstand short circuits. Provides strength, rigidity without additional  hardware.
5. Adapts to difficult architectural designs to accommodate changes in direction and elevation of  cable  runs.
6. Flexible, easy and fast installation. Design allows cable exit or entry at any point.
7. Cables can be secured to clamps or ties.
8. Various hardware accessories available to fix, support and install.
9. Safe smooth edge design to protect cable.
10. Easy for line check and cleaning , easy maintenance.

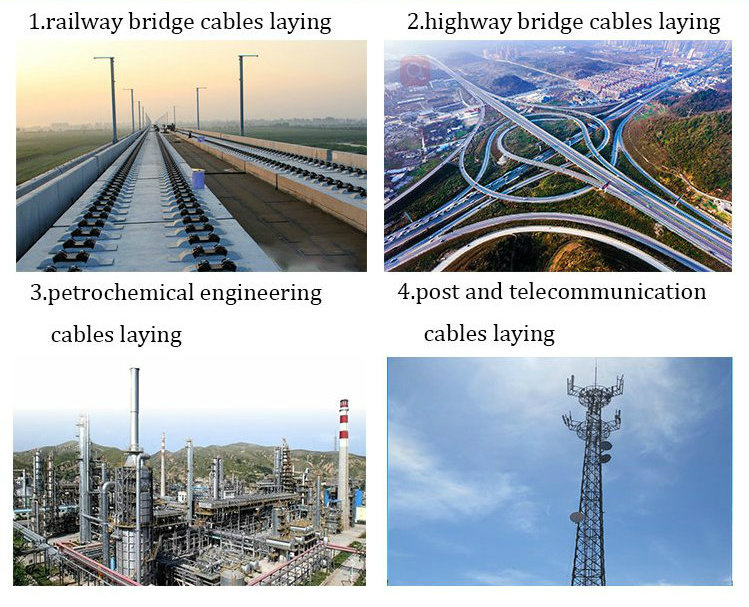

Application:


Packaging &shipping:

Company introduction:
Guangzhou Sunrun International Trading Co., Ltd is professional in exporting FRP machine and FRP products.

Our machine series include FRP pipe winding machine, FRP tank winding machine, FRP pultrusion machine, FRP grating machine, FRP sheet machine, FRP rebar machine and so on.

Our FRP products include: FRP pipe, FRP tank, FRP profile like FRP rod, FRP tube, FRP sheet, FRP channel, beam, FRP grating, FRP cooling tower, FRP cable tray and so on.


FAQ:
Q: Are you a trading company or a manufacture factory?
A:Manufacture.Our factory is one of the biggest FRP products, FRP machines manufacturer in China.

Q: I am interested in your products, could I get sample for free?
A: We can supply a few pieces FREE samples if we have some in stock, and you only need to pay the freight cost by yourself. If you have express account, we will send the samples by freight collected . Welcome to send your inquiry for FREE samples!

Q: How about the Delivery time?
A: 10-15days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft container. Welcome to ask for the detailed delivery time according to your order quantity!


Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance T/T before shipment.











Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
