Global Mobile Heavy Duty Racking Series
| Price: | US $ 150-300/Set |
|---|---|
| Min Order: | 5/Set |
| Pay Type: | L/C,T/T |
| Prod Model: | EMR201704 |
|---|---|
| Material: | Steel |
| Structure: | Rack |
| Mobility: | Adjustable |
| Height: | 5-15m |
| Closed: | Open |
| Development: | New Type |
| Serviceability: | Common Use |
| Weight: | 500-4000 |
Product Description
Racking is taken as a suitable and economical storage solution:
1. All the layers can be fix at any height only if it's times of 75mm, user will adjust different height for various pallet storage;
2. We supply quite big sections of upright to suit special needs;
3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
4. Epoxy powder coated and galvanized surface treamment to prevent against corruption;
5. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.
1. All the layers can be fix at any height only if it's times of 75mm, user will adjust different height for various pallet storage;
2. We supply quite big sections of upright to suit special needs;
3. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
4. Epoxy powder coated and galvanized surface treamment to prevent against corruption;
5. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.
| Others: | ||
| Design | professional design for your requirment:include choose the correct type for you,CAD drawing | |
| Price | direct Manufacture price,according to your quantity,payment | |
| Package | standard export package | |
| Payment | 30%prepaid T/T,L/C at sight FOB,CNF,CIF | |
| Shippment | FOB NANJING,FOB SHANGHAI | |
| CNF/CIF destination port | ||
| Quick Delivery. | Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. | |
| Certification | CE:if you need,can make for you | |

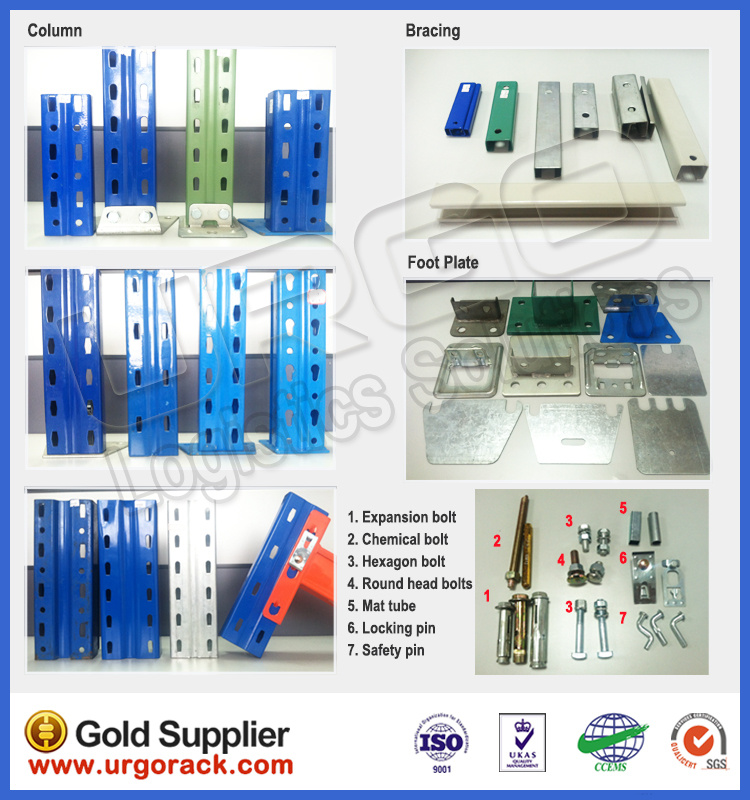

Upright:
1. High load capacity up to 21000kg.
2. Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.

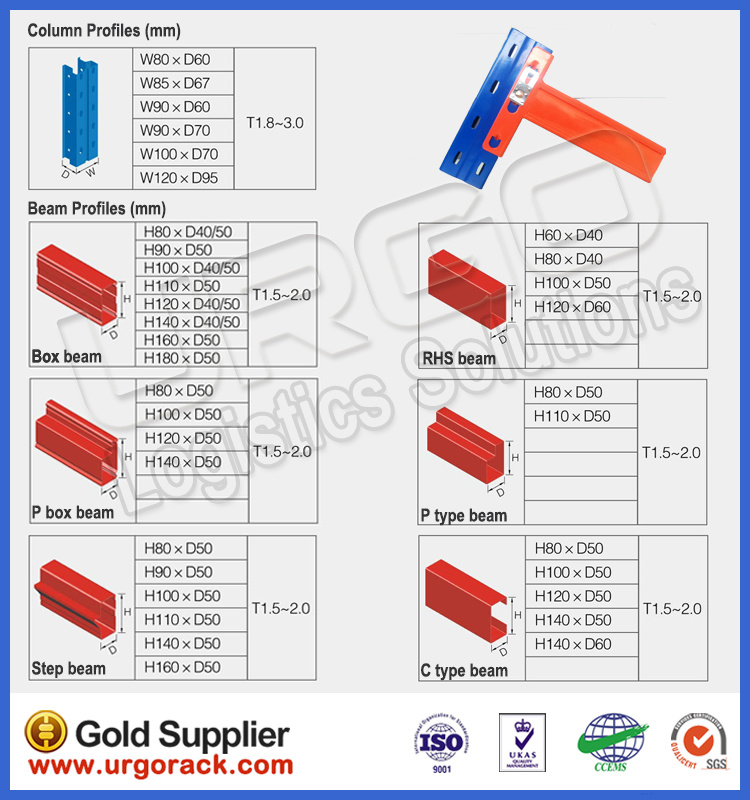

Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
| W80 x D60 | 1.8-2. | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam:
1. High load capacity up to 5000kg.
2 .Manufactured with the highest quality steel Q235.
3. Orange epoxy coated (RAL 2004).
4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
5. Boltless connection with 3/ 4/ 5 connector hooks.
6. A security pins per beam to prevent accidental dislodgement.
7. Powder coating finish
Beam Profiles:
Loading (kg) Specification (mm) | The Length of Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
| 100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
| 110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
| 120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
| 140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
| 160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
| 160 x 50 x 1.8 | 4400 | 3420 | 3020 | 2590 | |||||
| 160 x 50 x 2.0 | 4130 | 4170 | 3320 | 2840 | |||||
Loading (kg) Specification (mm) | The Length of P Box Beam (mm) | ||||||||
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
| 120 x 50 x 1.5 | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
| 140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 | |

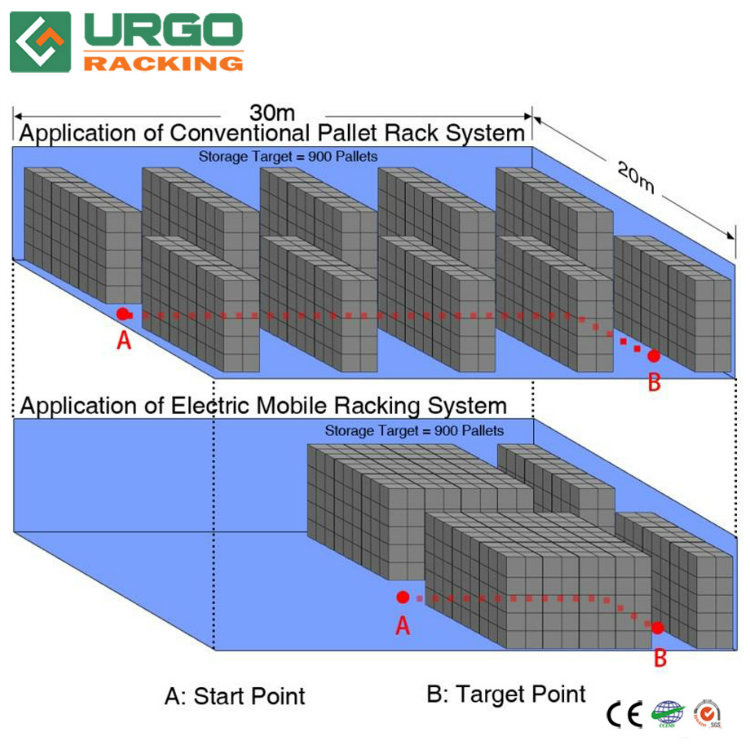

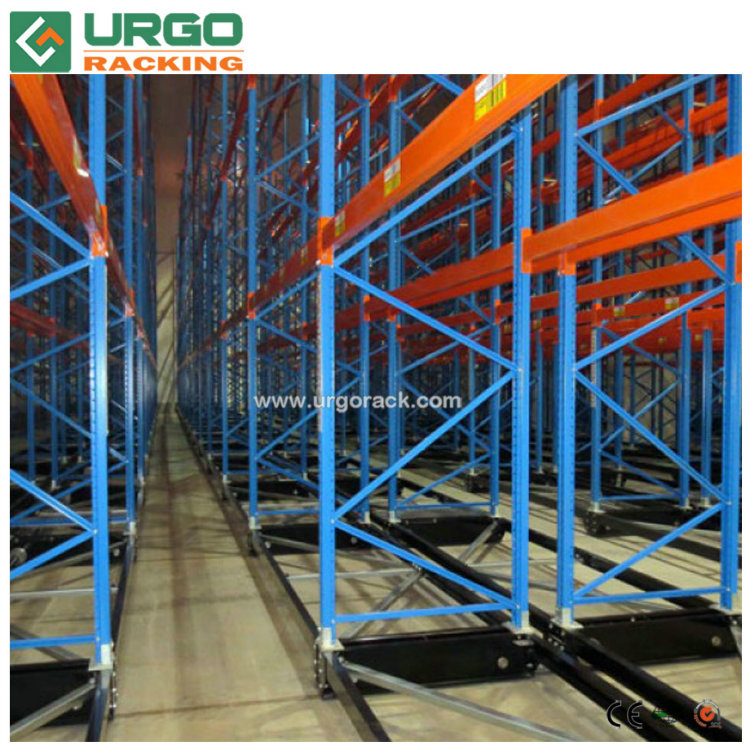

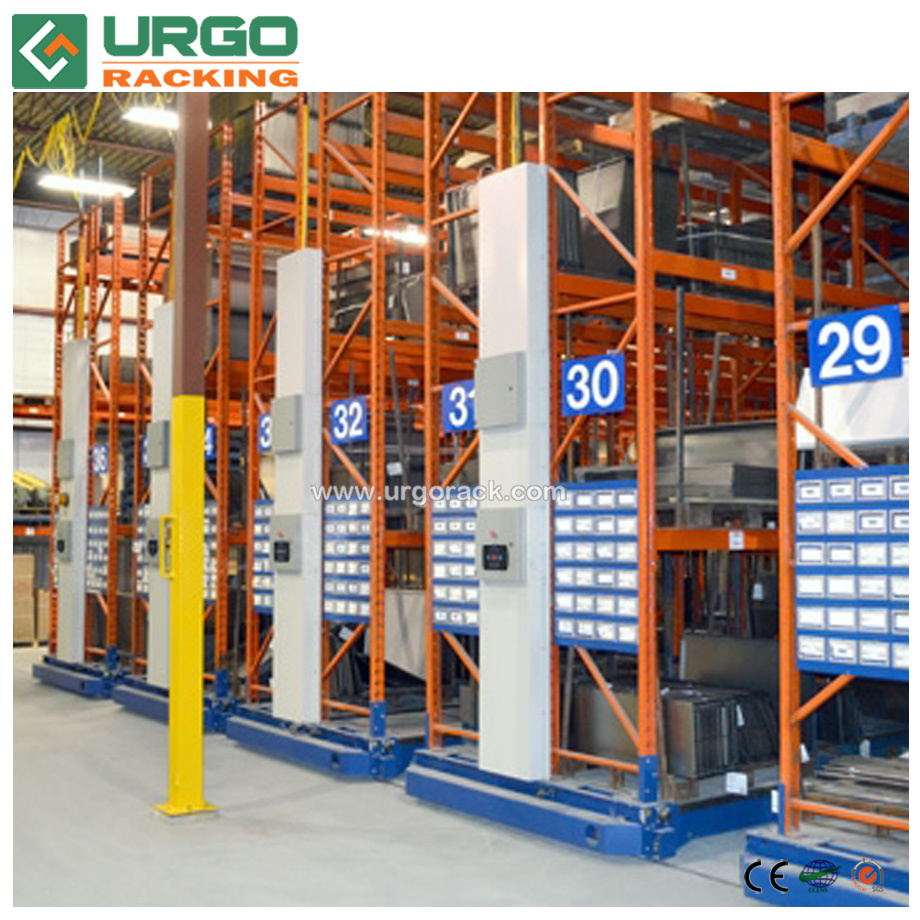

Advantages of guide rail electric mobile racking:
1. better loading capacity then Non-guide rail;
2. The heights of the racking can be manufactured higher;
3. Higher reliability and safety;
4. Easier to be manipulated;
5. Much cheaper than Non-guide rail and help you control your invest technical information for guide rail mobile racking.
